固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH43PN220M26LFIXED IND 22UH 780MA 392.4 MOHM |
5,283 | - |
|
数据表 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 780 mA | 700mA | 1812 (4532 Metric) | Shielded | 392.4mOhm Max | 22 µH | - | 15MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 85°C | 1 MHz | 0.110" (2.80mm) |
|
LQW15CAR32J00DFIXED IND 320NH 420MA 0.41OHM SM |
5,208 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 420 mA | - | - | Unshielded | 410mOhm Max | 320 nH | - | 1.1GHz | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | - | -40°C ~ 125°C | 10 MHz | 0.026" (0.66mm) |
|
46223CFIXED IND 22UH 1.8A 120 MOHM SMD |
5,066 | - |
|
数据表 |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.8 A | - | - | Shielded | 120mOhm Max | 22 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 10 kHz | 0.179" (4.55mm) |
|
LQH44PH6R8MPRLFIXED IND 6.8UH 1.5A 120MOHM SMD |
4,565 | - |
|
数据表 |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.85A | - | Shielded | 120mOhm Max | 6.8 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|
|
LQH44PH4R7MPRLFIXED IND 4.7UH 1.9A 78 MOHM SMD |
4,033 | - |
|
数据表 |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 2.05A | - | Shielded | 78mOhm Max | 4.7 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|
HCM1A0805-101-RFIXED IND 100UH - SMD |
709 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | - | 2.7A | - | Shielded | - | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.319" L x 0.315" W (8.10mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|

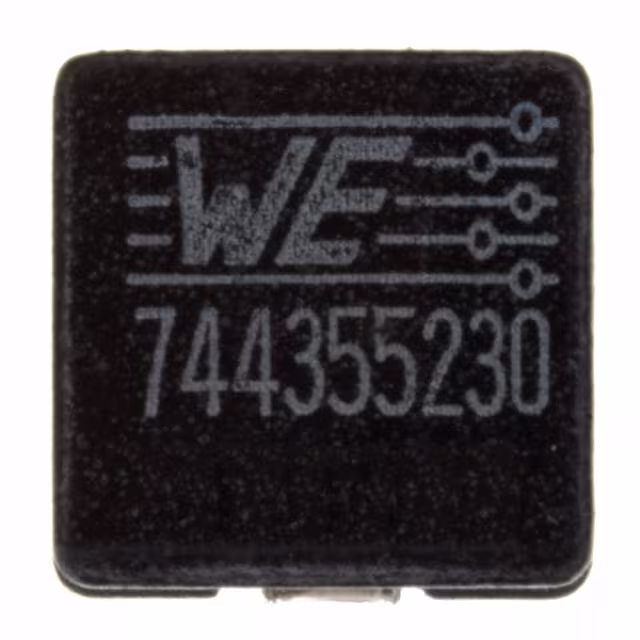

744355230FIXED IND 300NH 22A 1.1 MOHM SMD |
504 | - |
|
数据表 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 22 A | 35A | 1040 | Shielded | 1.1mOhm | 300 nH | - | 170MHz | Surface Mount | AEC-Q200 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | - | -40°C ~ 155°C | 100 kHz | 0.165" (4.20mm) |
|
|
HCM1A0805-3R3-RFIXED IND 3.3UH 8A 10 MOHM SMD |
491 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8 A | 8A | - | Shielded | 10mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.319" L x 0.315" W (8.10mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
B82477R4472M100FIXED IND 4.7UH 7.85A 11MOHM SMD |
357 | - |
|
数据表 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.85 A | 12.2A | - | Shielded | 11mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
1025-96KFIXED IND 120NH 1.3A 90 MOHM TH |
282 | - |
|
数据表 |
1025 | Axial | Bulk | Active | Molded | Phenolic | ±10% | 1.3 A | - | - | Unshielded | 90mOhm Max | 120 nH | 40 @ 25MHz | 640MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
7843330100FIXED IND 1UH 20.3A 2.9MOHM SMD |
278 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 20.3 A | 34.8A | 1011 | Shielded | 2.9mOhm Max | 1 µH | - | 88MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|

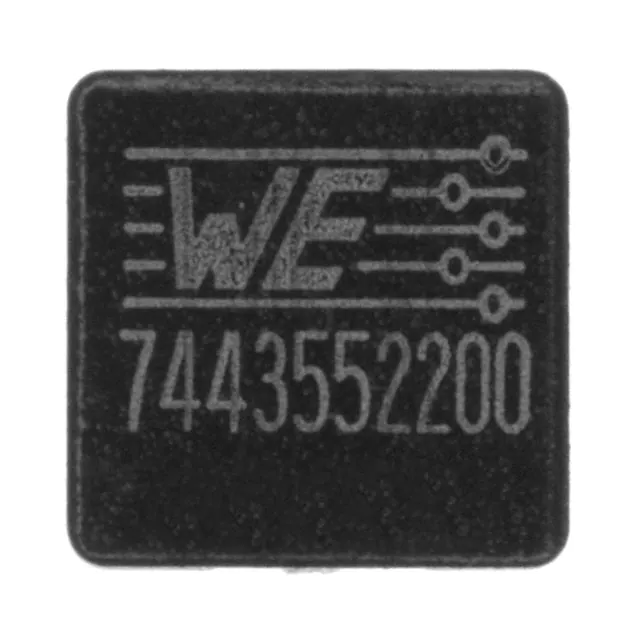

7443552200FIXED IND 2UH 11A 7.3 MOHM SMD |
277 | - |
|
数据表 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 11 A | 13A | 1040 | Shielded | 7.3mOhm | 2 µH | - | 53MHz | Surface Mount | AEC-Q200 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | - | -40°C ~ 155°C | 100 kHz | 0.165" (4.20mm) |
|
|
7843330560FIXED IND 5.6UH 9.2A 13MOHM SMD |
174 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 9.2 A | 14.9A | 1011 | Shielded | 13mOhm Max | 5.6 µH | - | 41MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|
PM2205.102NLTFIXED IND 1UH 20A 4.52 MOHM SMD |
3,031 | - |
|
数据表 |
PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 20 A | 23A | SMD | Shielded | 4.52mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
PM2205.122NLTFIXED IND 1.2UH 18A 5.83MOHM SMD |
1,546 | - |
|
数据表 |
PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 18 A | 22A | SMD | Shielded | 5.83mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
DRA125-101-RFIXED IND 100UH 1.745A 178 MOHM |
713 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.745 A | 2.213A | - | Shielded | 178mOhm | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.236" (6.00mm) |
|
78433490240WE-CHSA PERFORMANCE SMD HIGH CUR |
346 | - |
|
数据表 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 6.8 A | 18.4A | - | Shielded | 18.4mOhm Max | 2.4 µH | - | 80MHz | Surface Mount | AEC-Q200 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.366" (9.30mm) |
|
|
78433490075WE-CHSA PERFORMANCE SMD HIGH CUR |
342 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 12.8 A | 34.5A | - | Shielded | 5.9mOhm Max | 750 nH | - | 154MHz | Surface Mount | AEC-Q200 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.366" (9.30mm) |
|
|
78433490036WE-CHSA PERFORMANCE SMD HIGH CUR |
340 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 19 A | 48.5A | - | Shielded | 2.8mOhm Max | 360 nH | - | 218MHz | Surface Mount | AEC-Q200 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.366" (9.30mm) |
|
|
78433490160WE-CHSA PERFORMANCE SMD HIGH CUR |
330 | - |
|
数据表 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | ±20% | 8.4 A | 22.3A | - | Shielded | 12mOhm Max | 1.6 µH | - | 93MHz | Surface Mount | AEC-Q200 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.366" (9.30mm) |
