固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2512-102KFIXED IND 1UH 1.64A 150 MOHM SMD |
2,950 | - |
|
数据表 |
2512 | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 1.64 A | 1.23A | 2-SMD | Unshielded | 150mOhm Max | 1 µH | - | - | Surface Mount | - | 0.245" L x 0.095" W (6.22mm x 2.41mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.110" (2.79mm) |
|
SER2009-301MLDFIXED IND 300NH 54A 0.74MOHM SM |
1,328 | - |
|
数据表 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 54 A | 100A | - | Shielded | 0.74mOhm Max | 300 nH | - | 550MHz | Surface Mount | AEC-Q200 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | - | -40°C ~ 85°C | 100 kHz | 0.340" (8.64mm) |
|
LQW15CA1R0K00DFIXED IND 1UH 180MA 2.2OHM SMD |
11,097 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | - | - | Unshielded | 2.2Ohm Max | 1 µH | - | 400MHz | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | - | -40°C ~ 125°C | 10 MHz | 0.026" (0.66mm) |
|
|
SER2009-102MLDFIXED IND 1UH 54A 0.74MOHM SM |
600 | - |
|
数据表 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 54 A | 29A | - | Shielded | 0.74mOhm Max | 1 µH | - | 488MHz | Surface Mount | AEC-Q200 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | - | -40°C ~ 85°C | 100 kHz | 0.340" (8.64mm) |
|
|
SER2009-501MLDFIXED IND 500NH 54A 0.74MOHM SM |
505 | - |
|
数据表 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 54 A | 60A | - | Shielded | 0.74mOhm Max | 500 nH | - | 544MHz | Surface Mount | AEC-Q200 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | - | -40°C ~ 85°C | 100 kHz | 0.340" (8.64mm) |
|
TFM201610ALC-R47MTAAFIXED IND 470NH 5.2A 25 MOHM SMD |
10,994 | - |
|
数据表 |
TFM-ALC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 5.2 A | 5.1A | 0806 (2016 Metric) | Shielded | 25mOhm Max | 470 nH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
MPL-AY1265-1R2FIXED IND 1.2UH 24A 1.8 MOHM SMD |
500 | - |
|
数据表 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | - | 24 A | 37A | - | Unshielded | 1.8mOhm | 1.2 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
LQW15CAR27J00DFIXED IND 270NH 480MA 0.38OHM SM |
9,119 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 480 mA | - | - | Unshielded | 380mOhm Max | 270 nH | - | 1.2GHz | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | - | -40°C ~ 125°C | 10 MHz | 0.026" (0.66mm) |
|
|
MPL-AY1265-1R0FIXED IND 1UH 25.5A 1.5 MOHM SMD |
500 | - |
|
数据表 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | - | 25.5 A | 43A | - | Unshielded | 1.5mOhm | 1 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
MPL-AY1265-R82FIXED IND 820NH 27A 1.3 MOHM SMD |
498 | - |
|
数据表 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | - | 27 A | 46A | - | Unshielded | 1.3mOhm | 820 nH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
SRP2510A-4R7MFIXED IND 4.7UH 1.36A 262MOHM SM |
8,458 | - |
|
数据表 |
SRP2510A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 1.36 A | 1.8A | 1008 | Shielded | 262mOhm Max | 4.7 µH | 35 @ 1MHz | 40MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
.jpg)
|
LPWI252010H1R0TFIXED IND 1UH 4.3A 45 MOHM SMD |
8,319 | - |
|
数据表 |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | ±20% | 4.3 A | 4.1A | 1008 (2520 Metric) | Shielded | 45mOhm Max | 1 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
.jpg)
|

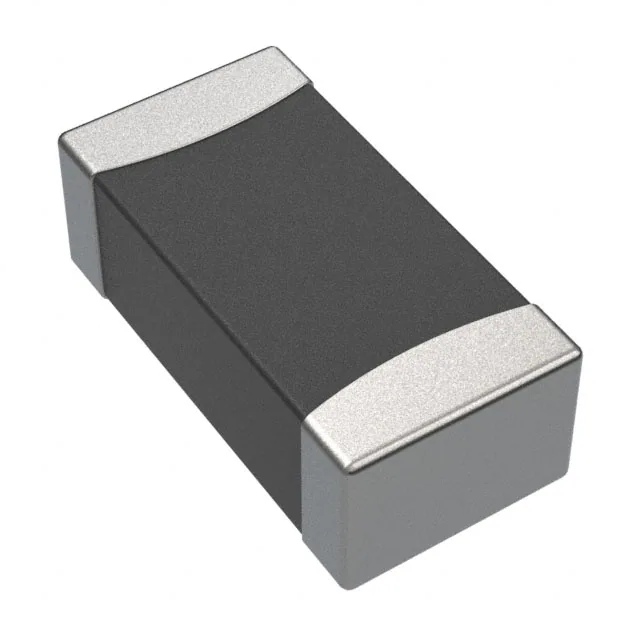

7447915FIXED IND 1UH 100MA 400 MOHM SMD |
8,116 | - |
|
数据表 |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | ±10% | 100 mA | - | 1206 | Unshielded | 400mOhm Max | 1 µH | 45 @ 10MHz | 87MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 10 MHz | 0.051" (1.30mm) |
|
B82141A1104J000FIXED IND 100UH 170MA 3.5 OHM TH |
8,105 | - |
|
数据表 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 170 mA | - | - | Unshielded | 3.5Ohm Max | 100 µH | 60 @ 796kHz | 5.3MHz | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - | -55°C ~ 125°C | 796 kHz | - |
|
VLCF5020T-100MR87FIXED IND 10UH 870MA 182MOHM SMD |
7,385 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 870 mA | 870mA | - | Shielded | 182mOhm Max | 10 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
LQW15CAR80J00DFIXED IND 800NH 190MA 2.1OHM SMD |
6,770 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 190 mA | - | - | Unshielded | 2.1Ohm Max | 800 nH | - | 770MHz | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | - | -40°C ~ 125°C | 10 MHz | 0.026" (0.66mm) |
|
|
LQW15CN3R3M10DFIXED IND 3.3UH 130MA 3.65OHM SM |
6,492 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 130 mA | - | - | Unshielded | 3.65Ohm Max | 3.3 µH | - | 80MHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
DFE252012PD-2R2M=P2FIXED IND 2.2UH 2.2A 0.084OHM SM |
6,301 | - |
|
数据表 |
DFE252012PD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2.2 A | 2.8A | 2520 | Shielded | 84mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Flat Wire | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
TFM201610ALMAR33MTAAFIXED IND 330NH 4.3A 31 MOHM SMD |
6,083 | - |
|
数据表 |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 4.3 A | 5.2A | - | Shielded | 31mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | Soft Termination | -55°C ~ 150°C | 1 MHz | 0.039" (1.00mm) |
|
LQH43PN470M26LFIXED IND 47UH 520MA 861.6 MOHM |
5,367 | - |
|
数据表 |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 520 mA | 470mA | 1812 (4532 Metric) | Shielded | 861.6mOhm Max | 47 µH | - | 8MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 85°C | 1 MHz | 0.110" (2.80mm) |
