固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

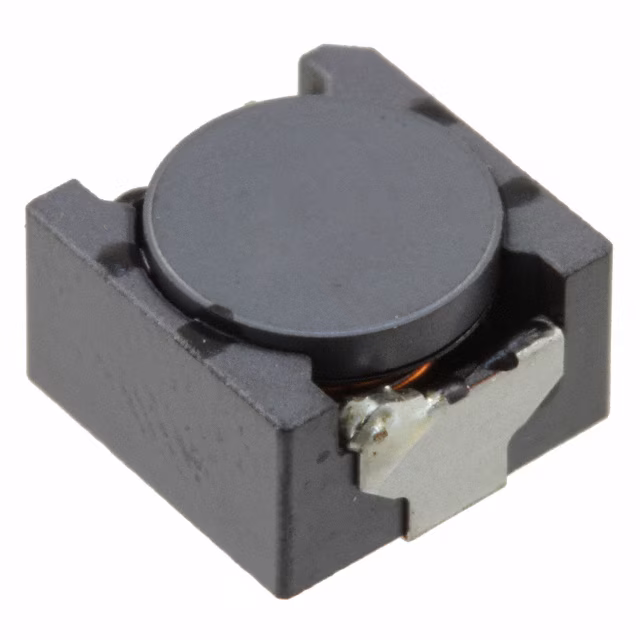

RLF10160T-100M2R8-DFIXED IND 10UH 2.8A 37.2MOHM SMD |
550 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | 5A | - | Shielded | 37.2mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
-Height-1.20mm.jpg)
|
DFE252012PD-1R0M=P2FIXED IND 1UH 3.2A 0.042OHM SMD |
17,888 | - |
|
数据表 |
DFE252012PD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 3.2 A | 3.8A | 2520 | Shielded | 42mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Flat Wire | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
RLF10160T-680M1R2-D1FIXED IND 68UH 1.2A 145.2MOHM SM |
455 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.9A | - | Shielded | 145.2mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
|
RLF10160T-330M1R8-DFIXED IND 33UH 1.8A 79.2MOHM SMD |
446 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 2.8A | - | Shielded | 79.2mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
LQH44PH151MPRLFIXED IND 150UH 330MA 2.64OHM SM |
16,233 | - |
|
数据表 |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 330 mA | 400mA | - | Shielded | 2.64Ohm Max | 150 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|
|
RLF10160T-101M1R1-DFIXED IND 100UH 1.1A 234MOHM SMD |
232 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.7A | - | Shielded | 234mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
LQW15CAR11J00DFIXED IND 110NH 900MA 0.13OHM SM |
15,816 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 900 mA | - | - | Unshielded | 130mOhm Max | 110 nH | - | 1.6GHz | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | - | -40°C ~ 125°C | 10 MHz | 0.026" (0.66mm) |
|
|
RLF10160T-151MR90-DFIXED IND 150UH 900MA 332.4 MOHM |
149 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 1.3A | - | Shielded | 332.4mOhm Max | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
CDRH70D45BT150NP-471MCFIXED IND 470UH 540MA 1.35OHM SM |
852 | - |
|
数据表 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 540 mA | 430mA | - | Shielded | 1.35Ohm | 470 µH | - | - | Surface Mount | AEC-Q200 | 0.303" L x 0.287" W (7.70mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
CDRH70D45BT150NP-3R3NCFIXED IND 3.3UH 6.7A 13MOHM SMD |
700 | - |
|
数据表 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 6.7 A | 5.1A | - | Shielded | 13mOhm | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.303" L x 0.287" W (7.70mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
DFEH12060D-6R8M=P3FIXED IND 6.8UH 9A 14 MOHM SMD |
300 | - |
|
数据表 |
DFEH12060D | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron Powder | ±20% | 9 A | 11A | - | Shielded | 14mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.512" L x 0.496" W (13.00mm x 12.60mm) | - | -40°C ~ 155°C | 100 MHz | 0.236" (6.00mm) |
|
DO5040H-334KLDFIXED IND 330UH 1.5A 325MOHM SM |
29,429 | - |
|
数据表 |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 1.5 A | 3A | - | Unshielded | 325mOhm Max | 330 µH | - | 3MHz | Surface Mount | AEC-Q200 | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.472" (12.00mm) |
|
|
DO5040H-333MLDFIXED IND 33UH 4.5A 37MOHM SM |
2,025 | - |
|
数据表 |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 4.5 A | 9.6A | - | Unshielded | 37mOhm | 33 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.472" (12.00mm) |
|
7447918FIXED IND 10UH 25MA 600 MOHM SMD |
14,869 | - |
|
数据表 |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | ±10% | 25 mA | - | 1206 | Unshielded | 600mOhm Max | 10 µH | 50 @ 2MHz | 26MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 2 MHz | 0.051" (1.30mm) |
|
|
DO5040H-683MLDFIXED IND 68UH 3.4A 67MOHM SM |
1,975 | - |
|
数据表 |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 3.4 A | 6.7A | - | Unshielded | 67mOhm Max | 68 µH | - | 7MHz | Surface Mount | AEC-Q200 | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.472" (12.00mm) |
|
|
DO5040H-103MLDFIXED IND 10UH 8.6A 11MOHM SM |
1,371 | - |
|
数据表 |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 8.6 A | 17.8A | - | Unshielded | 11mOhm | 10 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 85°C | 100 kHz | 0.472" (12.00mm) |
-Height-1.00mm.jpg)
|
DFE201612PD-2R2M=P2FIXED IND 2.2UH 1.2A 172MOHM SMD |
12,587 | - |
|
数据表 |
DFE201612P | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.2 A | 1.7A | 0806 | Shielded | 172mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
DO5040H-123MLDFIXED IND 12UH 7.4A 13MOHM SM |
506 | - |
|
数据表 |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 7.4 A | 15.9A | - | Unshielded | 13mOhm | 12 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.880" L x 0.640" W (22.35mm x 16.26mm) | - | -40°C ~ 85°C | 100 kHz | 0.472" (12.00mm) |
|
|
DO5040H-104MLDFIXED IND 100UH 2.8A 115MOHM SM |
307 | - |
|
数据表 |
DO5040H | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 2.8 A | 5.6A | - | Unshielded | 115mOhm Max | 100 µH | - | 6MHz | Surface Mount | AEC-Q200 | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 85°C | 100 kHz | 0.472" (12.00mm) |
|
|
LQW15CAR14J00DFIXED IND 140NH 680MA 0.18OHM SM |
12,536 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 680 mA | - | - | Unshielded | 180mOhm Max | 140 nH | - | 1.4GHz | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | - | -40°C ~ 125°C | 10 MHz | 0.026" (0.66mm) |
