固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCP1305-R82-RFIXED IND 820NH 31A 2.3 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP1305 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 31 A | 52A | - | Unshielded | 2.3mOhm Max | 820 nH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

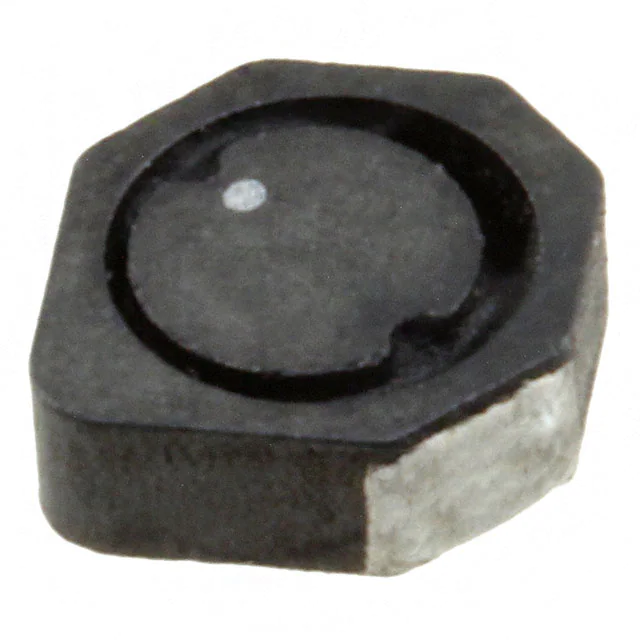

SD3112-150-RFIXED IND 15UH 450MA 654MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3112 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 450 mA | 440mA | - | Shielded | 654mOhm | 15 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
SD3112-1R0-RFIXED IND 1UH 1.39A 69 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3112 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.39 A | 1.65A | - | Shielded | 69mOhm | 1 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
SD3112-4R7-RFIXED IND 4.7UH 740MA 246MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3112 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 740 mA | 800mA | - | Shielded | 246mOhm | 4.7 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
SD3112-6R8-RFIXED IND 6.8UH 680MA 291MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3112 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 680 mA | 680mA | - | Shielded | 291mOhm | 6.8 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
SD3114-331-RFIXED IND 330UH 113MA 11.78 OHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 113 mA | 139mA | - | Shielded | 11.78Ohm | 330 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
SD3118-102-RFIXED IND 1MH 87MA 20.9 OHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3118 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 87 mA | 83mA | - | Shielded | 20.9Ohm | 1 mH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|

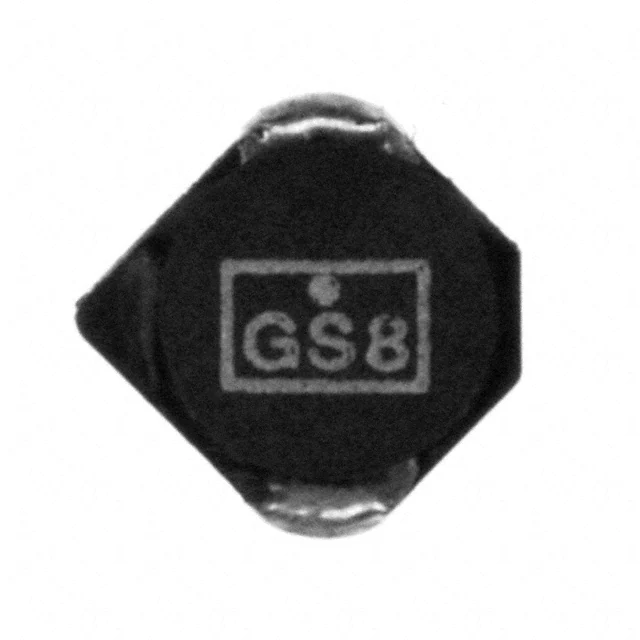

SD3814-100-RFIXED IND 10UH 713MA 311MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 713 mA | 851mA | - | Shielded | 311mOhm | 10 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3814-101-RFIXED IND 100UH 228MA 3.048 OHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 228 mA | 268mA | - | Shielded | 3.048Ohm | 100 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3814-150-RFIXED IND 15UH 574MA 481MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 574 mA | 702mA | - | Shielded | 481mOhm | 15 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.055" (1.40mm) |
