固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

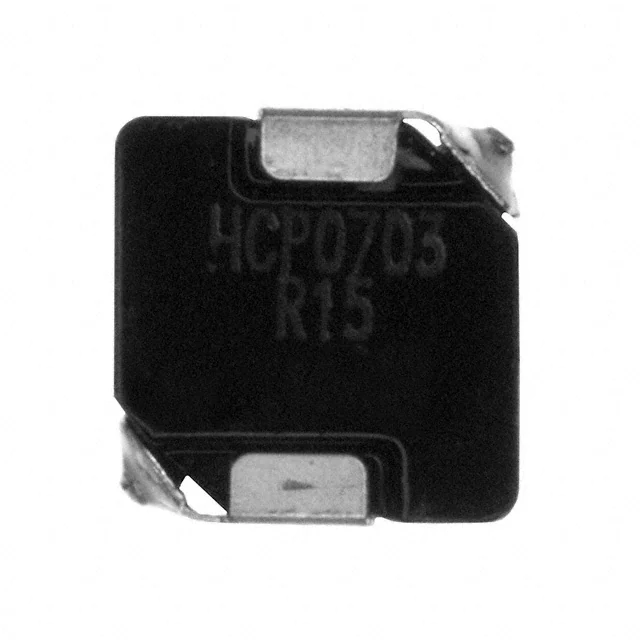

HCP0703-R15-RFIXED IND 150NH 26A 2.5 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 26 A | 52A | - | Shielded | 2.5mOhm Max | 150 nH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

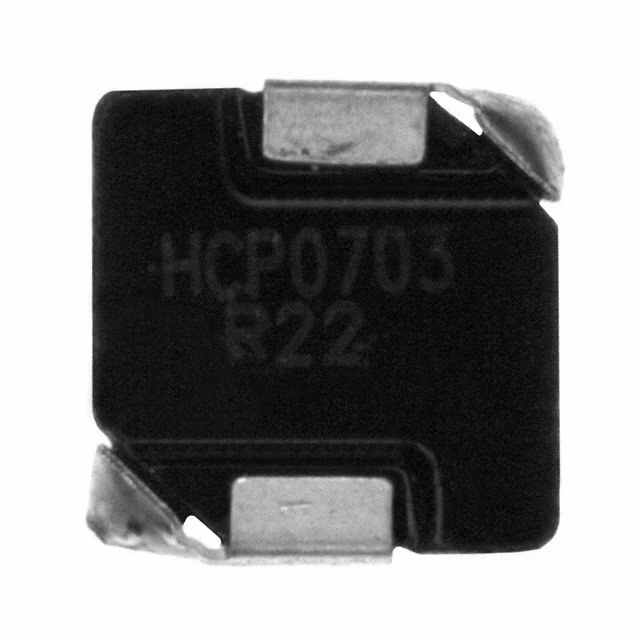

HCP0703-R22-RFIXED IND 220NH 23A 2.8 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 23 A | 40A | - | Shielded | 2.8mOhm Max | 220 nH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

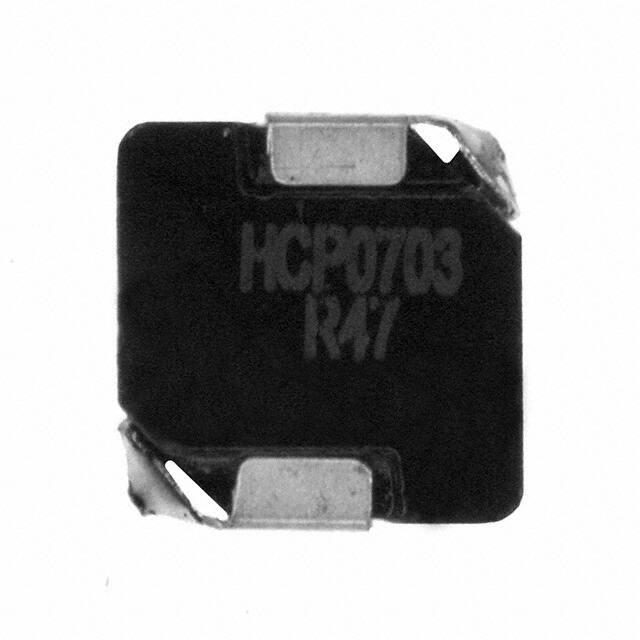

HCP0703-R47-RFIXED IND 470NH 17A 4.2 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 17 A | 26A | - | Shielded | 4.2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

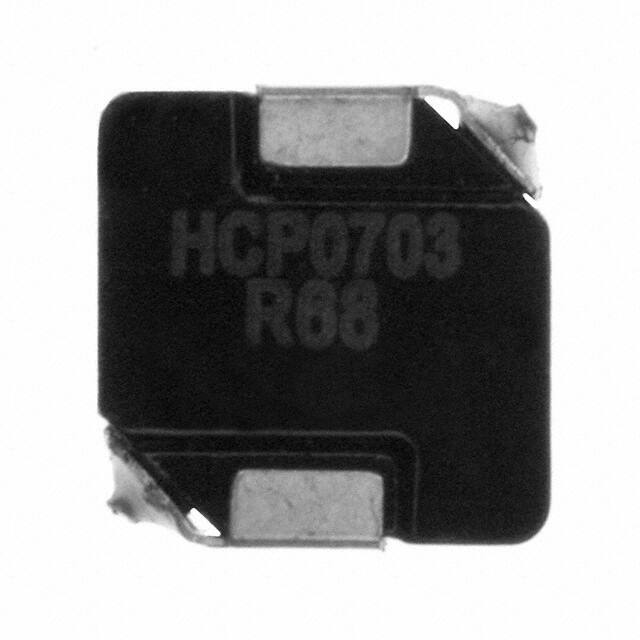

HCP0703-R68-RFIXED IND 680NH 15A 5.5 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 15 A | 25A | - | Shielded | 5.5mOhm Max | 680 nH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
HCP0703-R82-RFIXED IND 820NH 13A 8 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 13 A | 24A | - | Shielded | 8mOhm Max | 820 nH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

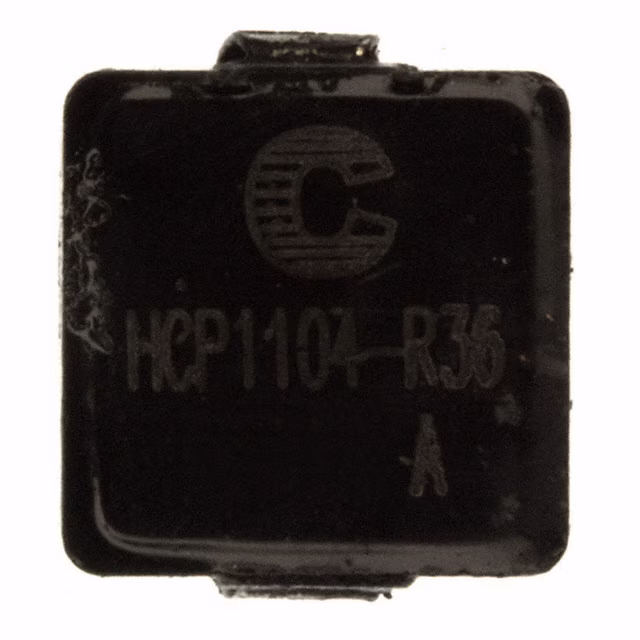

HCP1104-R36-RFIXED IND 360NH 30A 1.2 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP1104 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 30 A | 40A | - | Unshielded | 1.2mOhm Max | 360 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

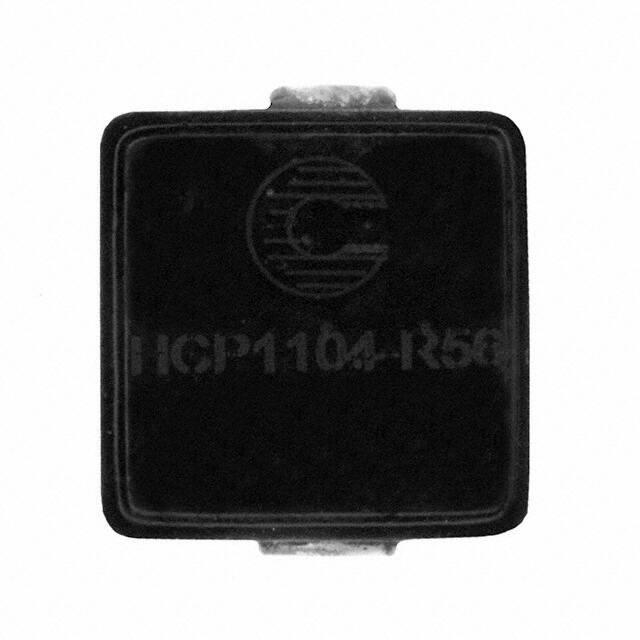

HCP1104-R56-RFIXED IND 560NH 25A 1.8 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP1104 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 25 A | 32A | - | Unshielded | 1.8mOhm Max | 560 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
HCP1305-1R0-RFIXED IND 1UH 29A 2.5 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP1305 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 29 A | 50A | - | Unshielded | 2.5mOhm Max | 1 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

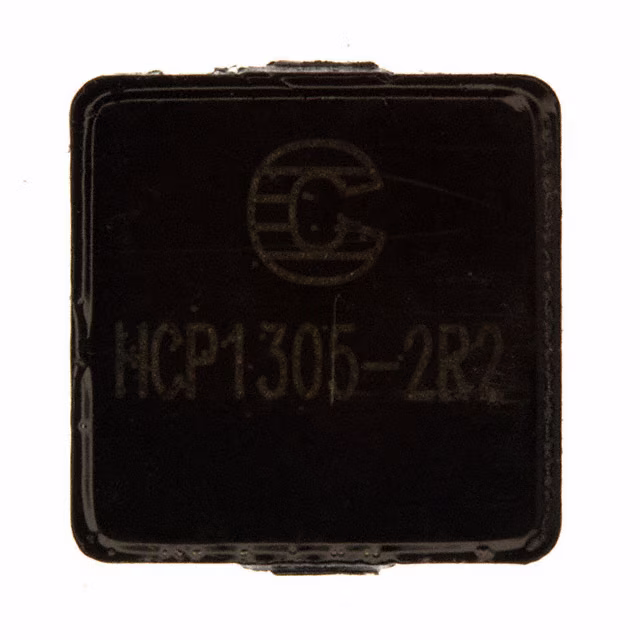

HCP1305-2R2-RFIXED IND 2.2UH 20A 5.5 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP1305 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 20 A | 32A | - | Unshielded | 5.5mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

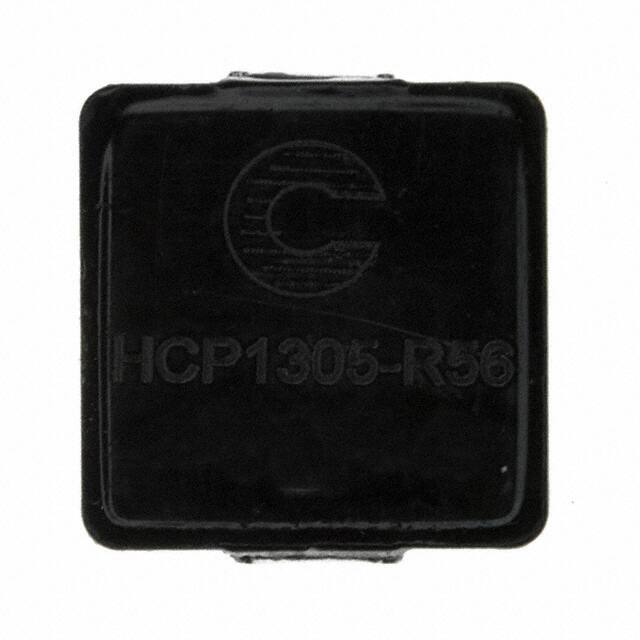

HCP1305-R56-RFIXED IND 560NH 36A 1.5 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP1305 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 36 A | 55A | - | Unshielded | 1.5mOhm Max | 560 nH | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
