固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX06-14621FIXED IND 33UH 7.7A 14.1MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
CTX | Nonstandard | Bulk | Active | Toroidal | Iron Powder | ±0.25% | 7.7 A | - | - | Unshielded | 14.1mOhm Max | 33 µH | - | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | - | -40°C ~ 75°C | 100 kHz | 0.484" (12.30mm) |
|
|
CTX06-14622FIXED IND 22UH 8.5A 11.7MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
CTX | Nonstandard | Bulk | Active | Toroidal | Iron Powder | ±0.25% | 8.5 A | - | - | Unshielded | 11.7mOhm Max | 22 µH | - | - | Surface Mount | - | 0.984" L x 0.984" W (25.00mm x 25.00mm) | - | -40°C ~ 75°C | 100 kHz | 0.484" (12.30mm) |
|

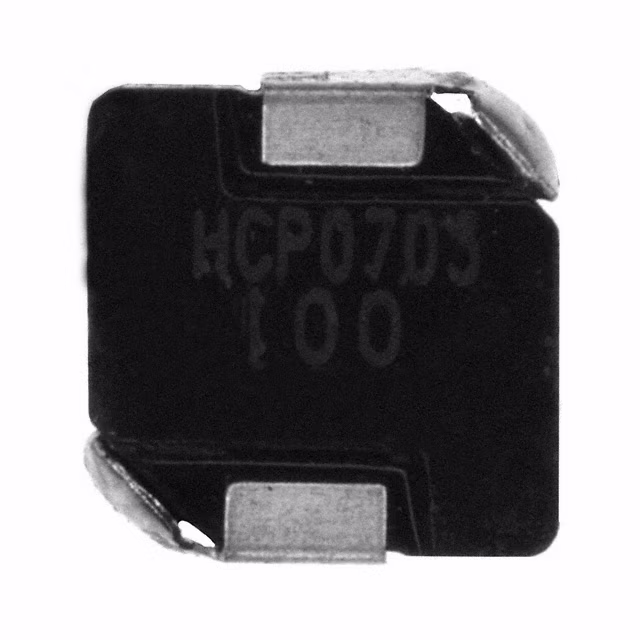

HCP0703-100-RFIXED IND 10UH 3A 105 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 3 A | 7A | - | Shielded | 105mOhm Max | 10 µH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

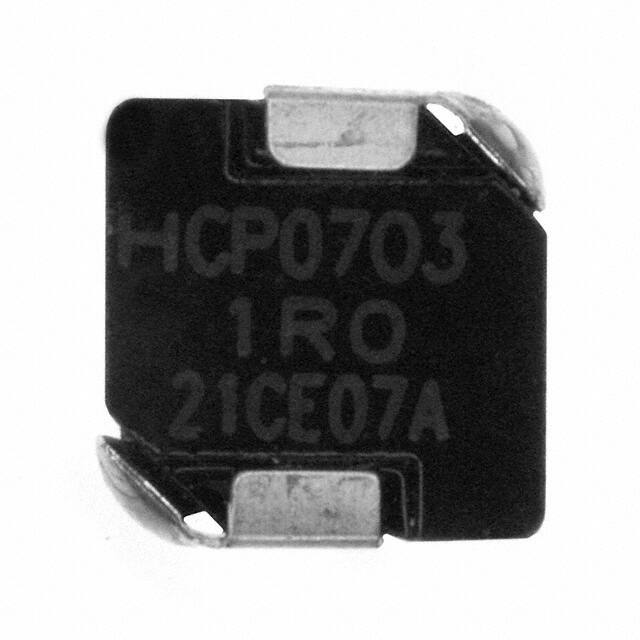

HCP0703-1R0-RFIXED IND 1UH 11A 10 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 11 A | 22A | - | Shielded | 10mOhm Max | 1 µH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

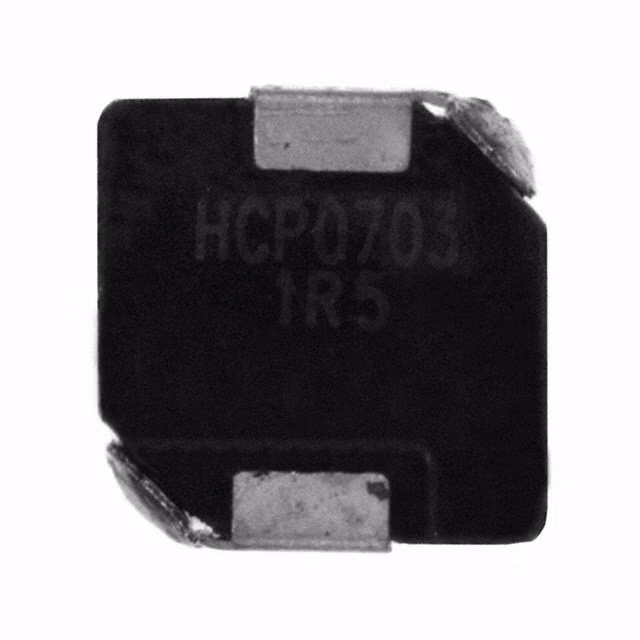

HCP0703-1R5-RFIXED IND 1.5UH 9A 15 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 9 A | 18A | - | Shielded | 15mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

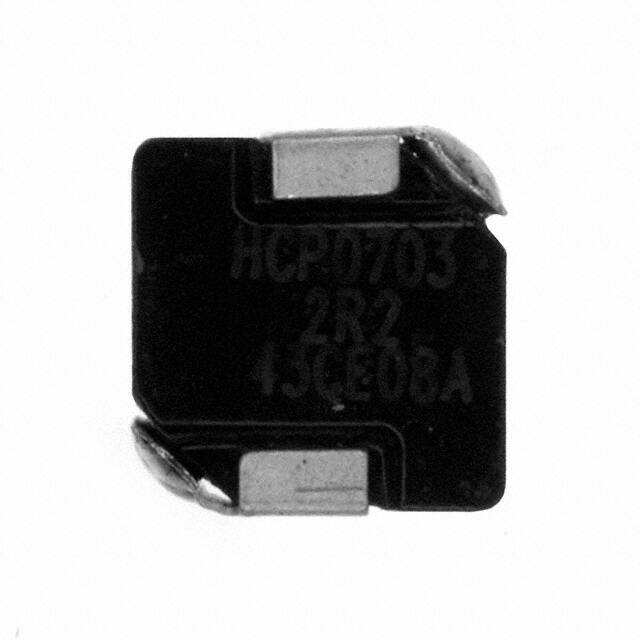

HCP0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 8 A | 14A | - | Shielded | 20mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

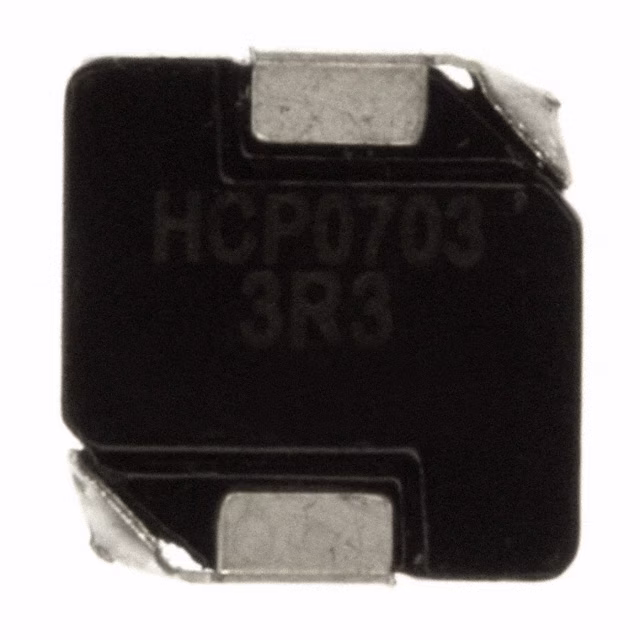

HCP0703-3R3-RFIXED IND 3.3UH 6A 30 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 6 A | 13.5A | - | Shielded | 30mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

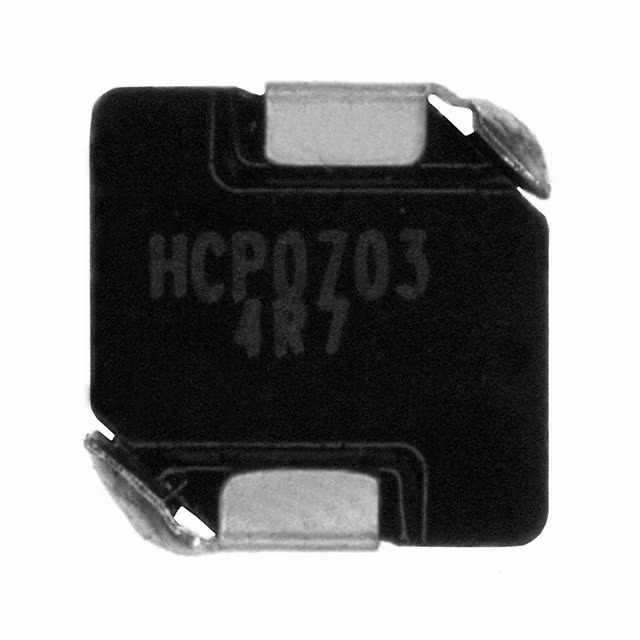

HCP0703-4R7-RFIXED IND 4.7UH 5.5A 40 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 5.5 A | 10A | - | Shielded | 40mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

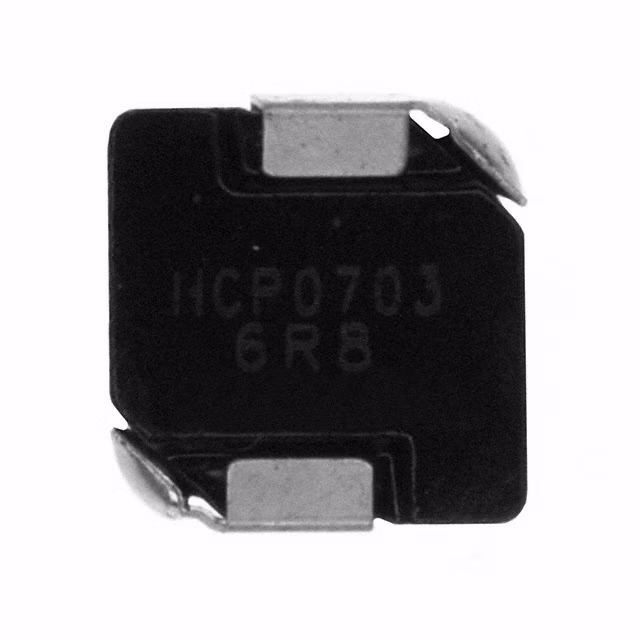

HCP0703-6R8-RFIXED IND 6.8UH 4.5A 60 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 4.5 A | 8A | - | Shielded | 60mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

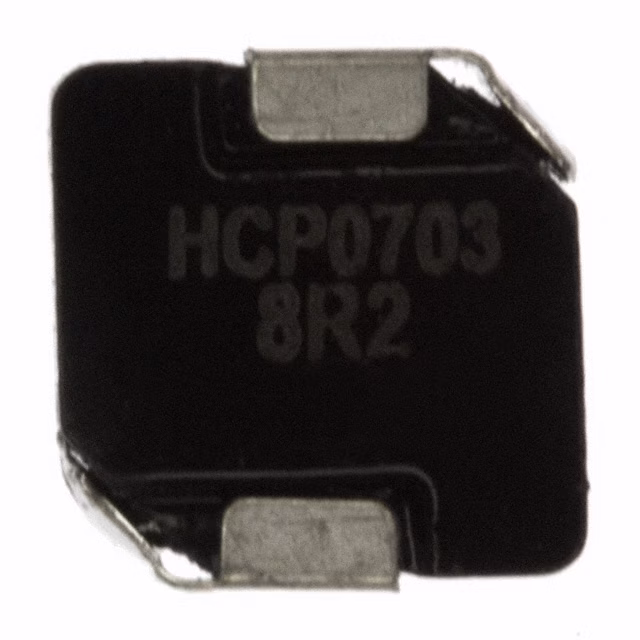

HCP0703-8R2-RFIXED IND 8.2UH 4A 68 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 4 A | 7.5A | - | Shielded | 68mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
