固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD3114-151-RFIXED IND 150UH 172MA 5.07OHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 172 mA | 207mA | - | Shielded | 5.07Ohm | 150 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3114-1R5-RFIXED IND 1.5UH 1.39A 77MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.39 A | 2.11A | - | Shielded | 77mOhm | 1.5 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3114-220-RFIXED IND 22UH 430MA 821MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 430 mA | 530mA | - | Shielded | 821mOhm | 22 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3114-2R2-RFIXED IND 2.2UH 1.17A 110MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.17 A | 1.74A | - | Shielded | 110mOhm | 2.2 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3114-330-RFIXED IND 33UH 350MA 1.23OHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 350 mA | 440mA | - | Shielded | 1.23Ohm | 33 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3114-3R3-RFIXED IND 3.3UH 950MA 167MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 950 mA | 1.38A | - | Shielded | 167mOhm | 3.3 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3114-470-RFIXED IND 47UH 280MA 1.86OHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 280 mA | 370mA | - | Shielded | 1.86Ohm | 47 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3114-680-RFIXED IND 68UH 239MA 2.62OHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 239 mA | 305mA | - | Shielded | 2.62Ohm | 68 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|

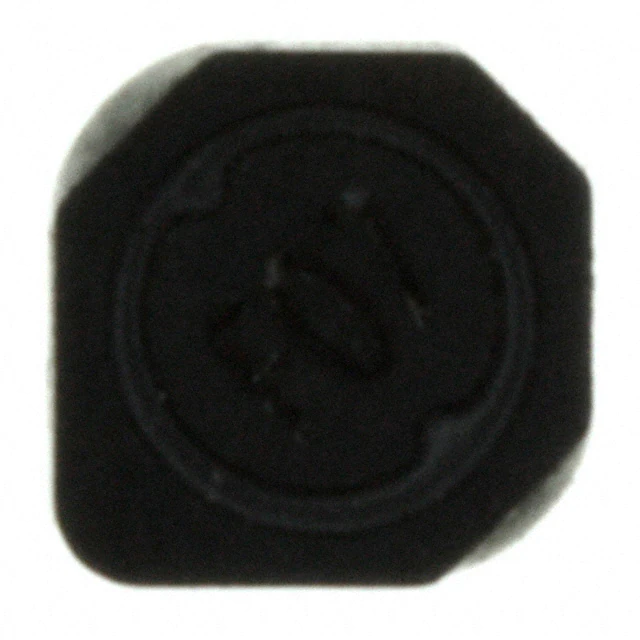

SD3114-6R8-RFIXED IND 6.8UH 710MA 296MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 710 mA | 980mA | - | Shielded | 296mOhm | 6.8 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
SD3114-8R2-RFIXED IND 8.2UH 680MA 329MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 680 mA | 890mA | - | Shielded | 329mOhm | 8.2 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
