固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD10-1R5-RFIXED IND 1.5UH 1.6A 65.3MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.6 A | 1.91A | - | Shielded | 65.3mOhm | 1.5 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.039" (1.00mm) |
|

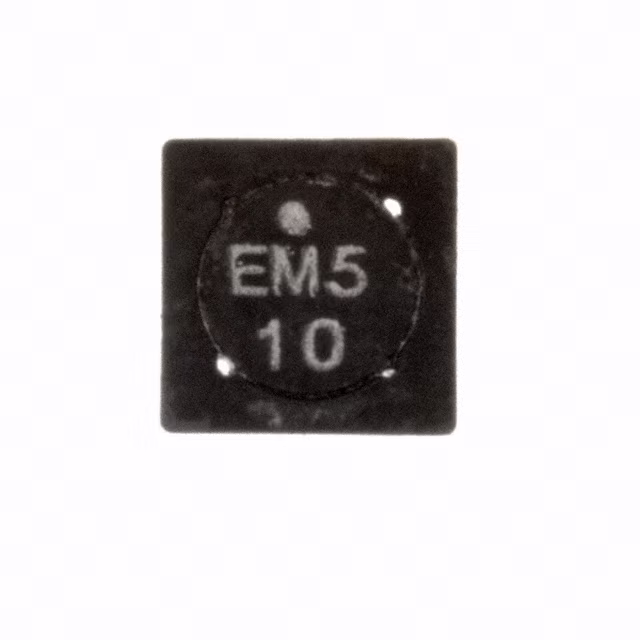

SD10-3R3-RFIXED IND 3.3UH 1.24A 107.8 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.24 A | 1.31A | - | Shielded | 107.8mOhm | 3.3 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.039" (1.00mm) |
|

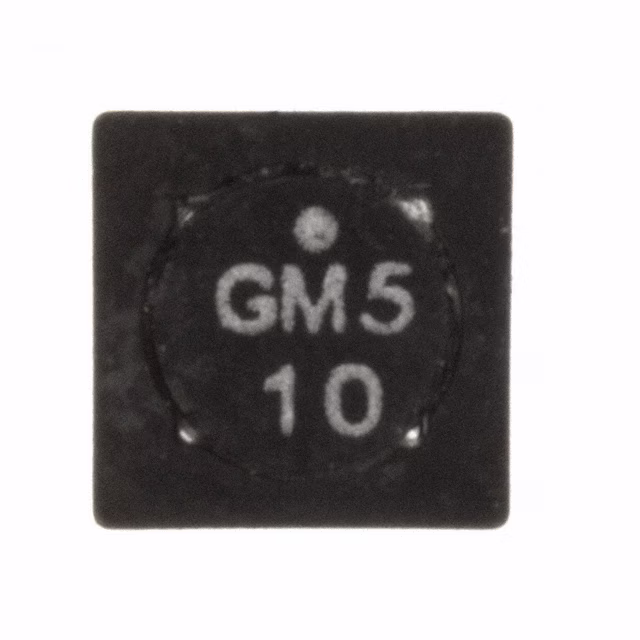

SD10-6R2-RFIXED IND 6.2UH 940MA 218MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 940 mA | 920mA | - | Shielded | 218mOhm | 6.2 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.039" (1.00mm) |
|
|
SD10-820-RFIXED IND 82UH 258MA 2.5 OHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 258 mA | 261mA | - | Shielded | 2.5Ohm | 82 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.039" (1.00mm) |
|
|
SD10-8R2-RFIXED IND 8.2UH 800MA 260.7 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 800mA | - | Shielded | 260.7mOhm | 8.2 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.039" (1.00mm) |
|
|
SD10-R47-RFIXED IND 470NH 2.59A 24.9 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.59 A | 3.54A | - | Shielded | 24.9mOhm | 470 nH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.039" (1.00mm) |
|

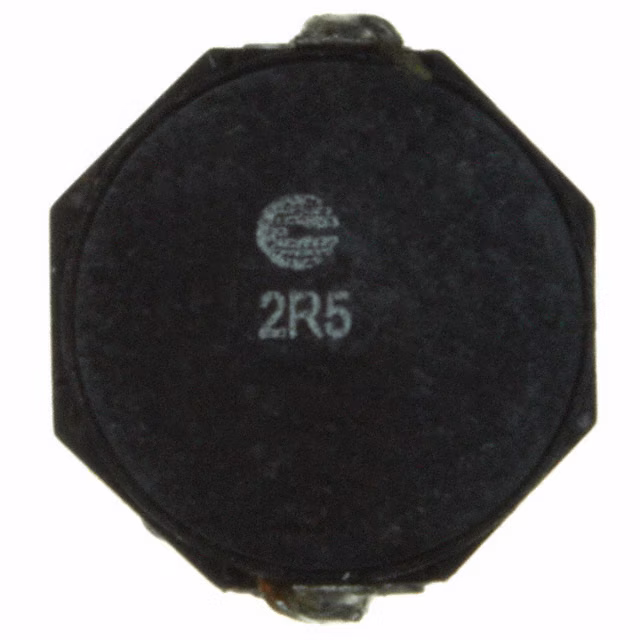

SD8328-2R5-RFIXED IND 2.5UH 6.6A 15.6MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 6.6 A | 4.5A | - | Shielded | 15.6mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

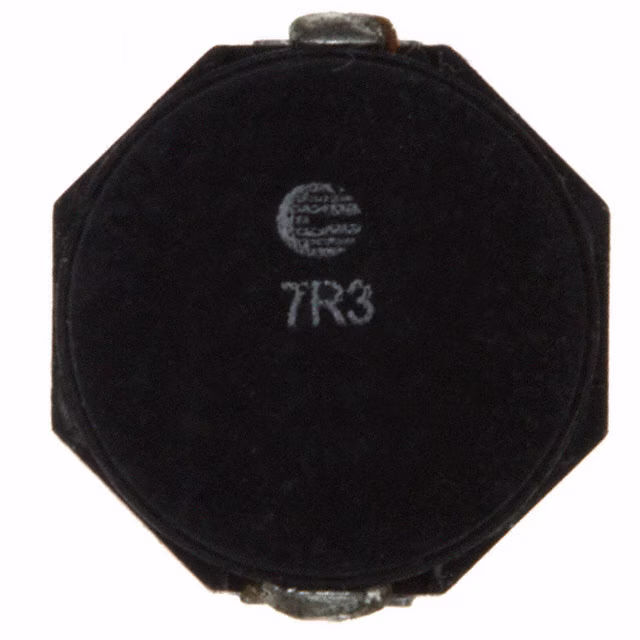

SD8328-7R3-RFIXED IND 7.3UH 3.4A 39 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.4 A | 2.9A | - | Shielded | 39mOhm Max | 7.3 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

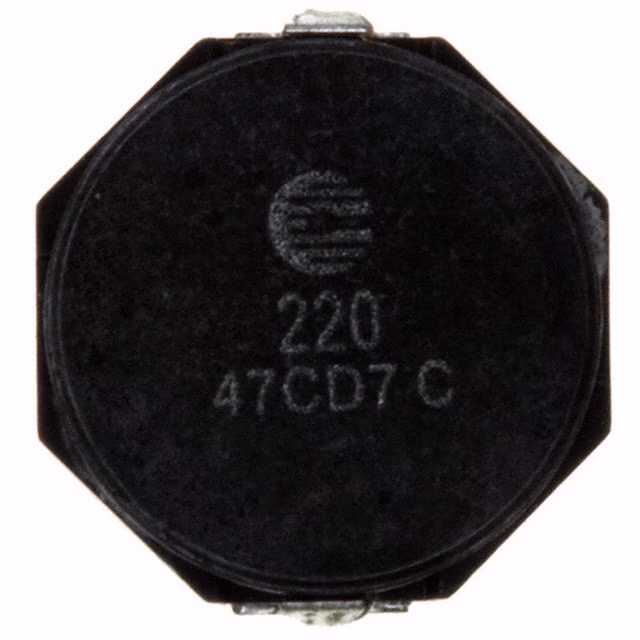

SD8328-220-RFIXED IND 22UH 1.85A 99 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.85 A | 1.7A | - | Shielded | 99mOhm Max | 22 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
FP1108L4-R120-RFIXED IND 120NH 91A 0.05MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FP1108L4 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 91 A | - | - | - | 0.05mOhm | 120 nH | - | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
