固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

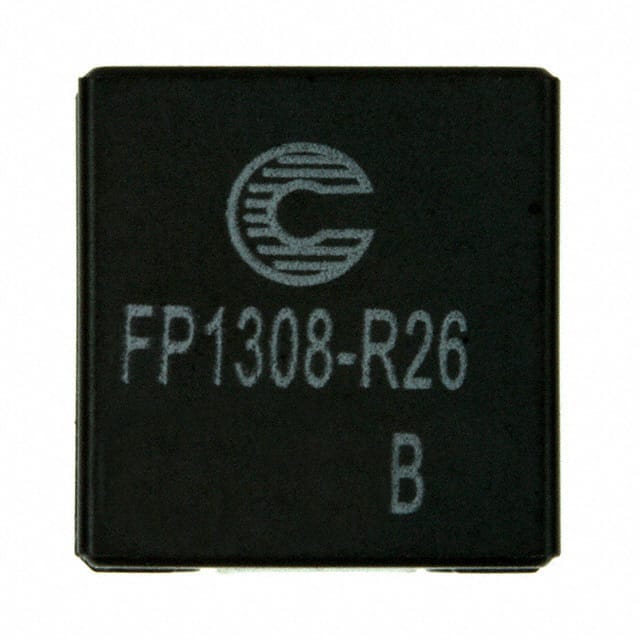

FP1308-R26-RFIXED IND 260NH 68A 0.24MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 68 A | 60A | - | Unshielded | 0.24mOhm Max | 260 nH | - | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
DRA125-1R5-RFIXED IND 1.5UH 12.89A 3.3 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 12.89 A | 18.44A | - | Shielded | 3.3mOhm | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.236" (6.00mm) |
|
SD3114-1R0-RFIXED IND 1UH 1.6A 58 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.6 A | 2.35A | - | Shielded | 58mOhm | 1 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|
|
CPL-6-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 40 A | - | - | Unshielded | 0.6mOhm Max | 50 nH | - | - | Surface Mount | - | 2.134" L x 0.335" W (54.20mm x 8.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.189" (4.80mm) |
|
SDCL1V2510-2R2M-RIND 2.2 UH 1.60A SMT Eaton - Electronics Division |
0 | - |
|
数据表 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.4 A | 1.6A | - | Shielded | 150mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.041" (1.05mm) |
|
|
SDCL1V2510-R47N-RIND 0.47 UH2.57 A SMT Eaton - Electronics Division |
0 | - |
|
数据表 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.4 A | 2.57A | - | Shielded | 40mOhm Max | 470 nH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.041" (1.05mm) |
|
EXL1V0606-3R3-RFIXED IND 3.3UH 12A 12.1MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 12 A | 10.5A | - | Shielded | 12.1mOhm Max | 3.3 µH | - | 24MHz | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
|
EXL1V0606-1R5-RFIXED IND 1.5UH 16A 5.61MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 16 A | 14A | - | Shielded | 5.61mOhm Max | 1.5 µH | - | 31MHz | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
FP1108L4-R150-RFIXED IND 150NH 91A 0.05MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FP1108L4 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 91 A | - | - | - | 0.05mOhm | 150 nH | - | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
SD3114-150-RFIXED IND 15UH 480MA 650MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 480 mA | 660mA | - | Shielded | 650mOhm | 15 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
