固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLCM1005Z0S3N3TBINDUCTOR FIXED 3.3NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 800 mA | - | 0402 | Unshielded | 160mOhm Max | 3.3 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
0603LS-152XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
2,605 | - |
|
数据表 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | ±2% | 350 mA | - | 0603 | Unshielded | 960mOhm Max | 1.5 µH | 15 @ 7.9MHz | 100MHz | Surface Mount | AEC-Q200 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | - | -40°C ~ 100°C | 7.9 MHz | 0.044" (1.11mm) |
|
MPI2512V2-2R2-RFIXED IND 2.2UH 2.2A 87MOHM SMD |
1,101 | - |
|
数据表 |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 2.2 A | 3.5A | 1008 | Shielded | 87mOhm Max | 2.2 µH | - | 30MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.049" (1.25mm) |
|
78438357018FIXED IND 1.8UH 5.8A 21MOHM SMD |
706 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | ±20% | 5.8 A | 8A | 4030 | Shielded | 21mOhm Max | 1.8 µH | - | 42MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
|
WLCM1005Z0S5N6TBINDUCTOR FIXED 5.6NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 600 mA | - | 0402 | Unshielded | 230mOhm Max | 5.6 nH | 8 @ 100MHz | 4.5GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
0603LS-782XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
2,379 | - |
|
数据表 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | ±2% | 200 mA | - | 0603 | Unshielded | 3.5Ohm Max | 7.8 µH | 15 @ 7.9MHz | 28MHz | Surface Mount | AEC-Q200 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | - | -40°C ~ 100°C | 7.9 MHz | 0.044" (1.11mm) |
|
SRP1038WA-R47MIND,11X10X3.8MM,0.47UH20%,34A,SH |
438 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 34 A | 31A | - | Shielded | 1.63mOhm Max | 470 nH | 15 @ 100kHz | 60MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
0805LS-682XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
2,245 | - |
|
数据表 |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | ±2% | 260 mA | - | 0805 | Unshielded | 2.25Ohm Max | 6.8 µH | 20 @ 7.9MHz | 35MHz | Surface Mount | AEC-Q200 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | - | -40°C ~ 100°C | 7.9 MHz | 0.063" (1.60mm) |
|
|
WLCM1005Z0S5N1TBINDUCTOR FIXED 5.1NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 600 mA | - | 0402 | Unshielded | 230mOhm Max | 5.1 nH | 8 @ 100MHz | 5.3GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
SRP1038WA-5R6MIND,11X10X3.8MM,5.6UH20%,10.5A,S |
348 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 10.5 A | 12A | - | Shielded | 17mOhm Max | 5.6 µH | 20 @ 100kHz | 13MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|

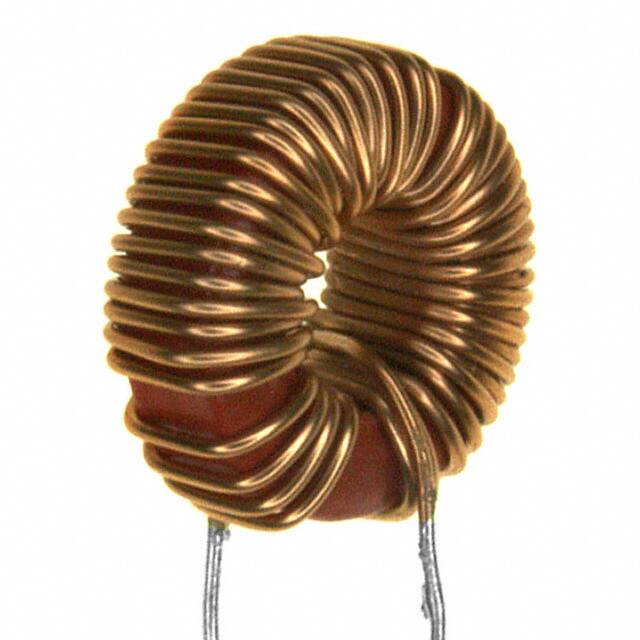

7447041FIXED IND 68UH 800MA 100 MOHM TH |
288 | - |
|
数据表 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | ±20% | 800 mA | - | - | Unshielded | 100mOhm Max | 68 µH | - | - | Through Hole | - | 0.472" Dia x 0.217" W (12.00mm x 5.50mm) | - | -40°C ~ 105°C | 10 kHz | - |
|
|
0805LS-681XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
2,227 | - |
|
数据表 |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | ±2% | 590 mA | - | 0805 | Unshielded | 460mOhm Max | 680 nH | 20 @ 7.9MHz | 400MHz | Surface Mount | AEC-Q200 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | - | -40°C ~ 100°C | 7.9 MHz | 0.063" (1.60mm) |
|
|
WLCM1005Z0S3N0TBINDUCTOR FIXED 3.0NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 800 mA | - | 0402 | Unshielded | 160mOhm Max | 3 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
SRP1038WA-120MIND,11X10X3.8MM,12UH20%,7.4A,SHD |
271 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 7.4 A | 7.5A | - | Shielded | 33.4mOhm Max | 12 µH | 20 @ 100kHz | 10MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
|
0603LS-781XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
2,208 | - |
|
数据表 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | ±2% | 390 mA | - | 0603 | Unshielded | 830mOhm Max | 780 nH | 15 @ 7.9MHz | 460MHz | Surface Mount | AEC-Q200 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 100°C | 7.9 MHz | 0.044" (1.11mm) |
|
|
WLCM1005Z0S3N9TBINDUCTOR FIXED 3.9NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 700 mA | - | 0402 | Unshielded | 200mOhm Max | 3.9 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
|
SRP1038WA-220MIND,11X10X3.8MM,22UH20%,5.5A,SHD |
216 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 5.5 A | 6A | - | Shielded | 68mOhm Max | 22 µH | 20 @ 100kHz | 7MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038WA-2R2MIND,11X10X3.8MM,2.2UH20%,18A,SHD |
200 | - |
|
数据表 |
SRP1038WA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 18 A | 19A | - | Shielded | 6.1mOhm Max | 2.2 µH | 20 @ 100kHz | 26MHz | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -55°C ~ 165°C | 100 kHz | 0.157" (4.00mm) |
|
MGV1004R36M-10FIXED IND 360NH 31.5A 1.4MOHM SM |
2,000 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 31.5 A | 60A | - | Shielded | 1.4mOhm Max | 360 nH | - | - | Surface Mount | AEC-Q200 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.169" (4.30mm) |
|
|
WLCM1005Z0J39NTBINDUCTOR FIXED 39NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 200 mA | - | 0402 | Unshielded | 1Ohm Max | 39 nH | 8 @ 100MHz | 1.2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
