固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS5030T220MMGJFIXED IND 22UH 1.05A 180MOHM SMD |
5,648 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.05 A | 1.4A | - | Shielded | 180mOhm | 22 µH | - | 13MHz | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -25°C ~ 120°C | 100 kHz | 0.118" (3.00mm) |
.jpg)
|
VLS252010HBX-R47M-1FIXED IND 470NH 3.32A 35MOHM SMD |
5,134 | - |
|
数据表 |
VLS-HBX-1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 3.32 A | 4.53A | 1008 (2520 Metric) | Shielded | 35mOhm Max | 470 nH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
|
VLS201612HBX-6R8M-1FIXED IND 6.8UH 910MA 468MOHM SM |
4,669 | - |
|
数据表 |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 910 mA | 870mA | 0806 (2016 Metric) | Shielded | 468mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|

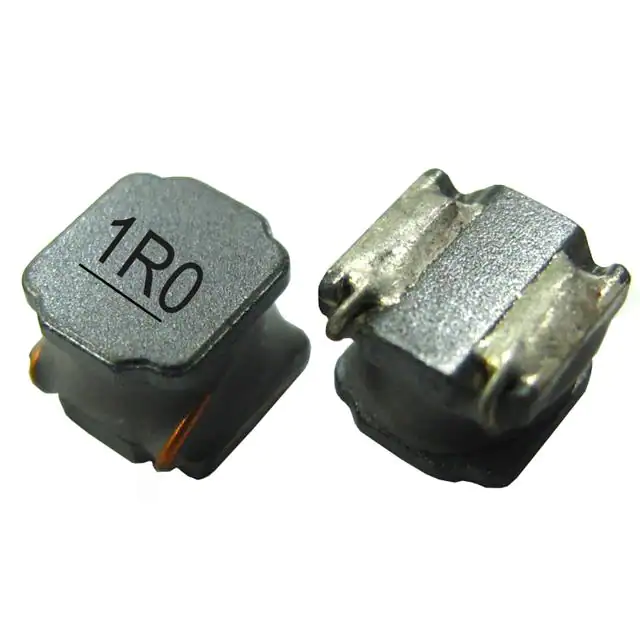

BWVF00303015100M00FIXED IND 10UH 1A 360 MOHM SMD |
4,149 | - |
|
数据表 |
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1 A | 1.06A | - | Shielded | 360mOhm | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
VLS252010HBX-4R7M-1FIXED IND 4.7UH 1.09A 250MOHM SM |
4,101 | - |
|
数据表 |
VLS-HBX-1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.09 A | 1.6A | 1008 (2520 Metric) | Shielded | 250mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
IHLP4040DZRZR56ML1INDUCT WW SNGL COIL MISC |
0 | - |
|
数据表 |
IHLP-4040DZ-L1 | Nonstandard | Bulk | Active | Molded | Iron Powder | ±20% | 27.5 A | 49A | - | Shielded | 1.8mOhm Max | 560 nH | - | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
WLCM0603TGH5N1TBINDUCTOR FIXED 5.1NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 5.1 nH | 12 @ 500MHz | 6.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
WLCM0603TGH4N7TBINDUCTOR FIXED 4.7NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 4.7 nH | 12 @ 500MHz | 6.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
WLCM0603TGH6N2TBINDUCTOR FIXED 6.2NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 300 mA | - | 0201 | Unshielded | 500mOhm Max | 6.2 nH | 12 @ 500MHz | 6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
WLCM1005Z0S3N6TBINDUCTOR FIXED 3.6NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 700 mA | - | 0402 | Unshielded | 200mOhm Max | 3.6 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
0603LS-332XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
2,985 | - |
|
数据表 |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | ±2% | 280 mA | - | 0603 | Unshielded | 1.5Ohm Max | 3.3 µH | 15 @ 7.9MHz | 42MHz | Surface Mount | AEC-Q200 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | - | -40°C ~ 100°C | 7.9 MHz | 0.044" (1.11mm) |
|
0805LS-103XGRCRF INDUCTOR, FERRITE CORE, 2% TO |
2,880 | - |
|
数据表 |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | ±2% | 200 mA | - | 0805 | Unshielded | 3.45Ohm Max | 10 µH | 18 @ 2.5MHz | 21MHz | Surface Mount | AEC-Q200 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | - | -40°C ~ 100°C | 2.5 MHz | 0.063" (1.60mm) |
|
7440700180FIXED IND 18UH 1.5A 162 MOHM SMD |
435 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.5 A | 1.1A | - | Shielded | 162mOhm Max | 18 µH | - | 20MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
7440690082FIXED IND 8.2UH 1.65A 115MOHM SM |
415 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.65 A | 1.5A | - | Shielded | 115mOhm Max | 8.2 µH | - | 12MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
74406900022FIXED IND 220NH 5.5A 14 MOHM SMD |
398 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.5 A | 7.5A | - | Shielded | 14mOhm Max | 220 nH | - | 400MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440700150FIXED IND 15UH 1.65A 140MOHM SMD |
368 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.65 A | 1.25A | - | Shielded | 140mOhm Max | 15 µH | - | 25MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
HCMA1305-R68-RFIXED IND 680NH 34A 1.33MOHM SMD |
239 | - |
|
数据表 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 34 A | 54A | - | Shielded | 1.33mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.524" L x 0.480" W (13.30mm x 12.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
60A163CFIXED IND 16UH 9.6A 9 MOHM SMD |
181 | - |
|
数据表 |
6000A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 9.6 A | 13A | - | Unshielded | 9mOhm Max | 16 µH | - | 17MHz | Surface Mount | - | 0.866" L x 0.748" W (22.00mm x 19.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.472" (12.00mm) |
|
|
WLCM1005Z0S6N2TBINDUCTOR FIXED 6.2NH 0402 |
0 | - |
|
数据表 |
CM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 600 mA | - | 0402 | Unshielded | 250mOhm Max | 6.2 nH | 8 @ 100MHz | 4.5GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|
78438356056FIXED IND 5.6UH 2.8A 81 MOHM SMD |
1,602 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±20% | 2.8 A | 4.6A | SMD | Shielded | 81mOhm Max | 5.6 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.083" (2.10mm) |
