固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP5050FDER101M8AINDUCT WW SNGL COIL MISC |
0 | - |
|
数据表 |
IHLP-5050FD-8A | Nonstandard | Bulk | Active | Molded | Metal Composite | ±20% | 3.1 A | 4.3A | - | Shielded | 187mOhm Max | 100 µH | - | 2.8MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.508" W (13.46mm x 12.90mm) | - | -55°C ~ 180°C | 100 kHz | 0.252" (6.40mm) |
|
|
IHLE2525CDER2R2M51AUTOMOTIVE INDUCTOR |
0 | - |
|
数据表 |
IHLE-2525CD-51 | Nonstandard, 4 Lead | Bulk | Active | Molded | - | ±20% | 8.1 A | 10.8A | Nonstandard, 4 Lead | Shielded | 18.3mOhm Max | 2.2 µH | - | 31.2MHz | Surface Mount | - | 0.284" L x 0.280" W (7.21mm x 7.12mm) | - | -55°C ~ 155°C | 100 kHz | 0.132" (3.35mm) |
|
|
IHLP2525EZER3R3MA1INDUCT WW SNGL COIL MISC |
0 | - |
|
数据表 |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP2020BZER220M51INDUCT WW SNGL COIL MISC |
0 | - |
|
数据表 |
IHLP-2020BZ-51 | Nonstandard | Bulk | Active | Molded | - | ±20% | 1.62 A | 1.5A | - | Shielded | 433mOhm Max | 22 µH | - | 12MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
|
IHDF1300AEEH100K10INDUCT WW SNGL COIL MISC |
0 | - |
|
数据表 |
IHDF-1300AE-10 | Nonstandard | Bulk | Active | Wirewound | Ferrite | ±10% | 59 A | 35A | - | Unshielded | 1.11mOhm Max | 10 µH | - | 9MHz | Through Hole | - | 1.299" L x 1.299" W (33.00mm x 33.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.606" (15.40mm) |
|

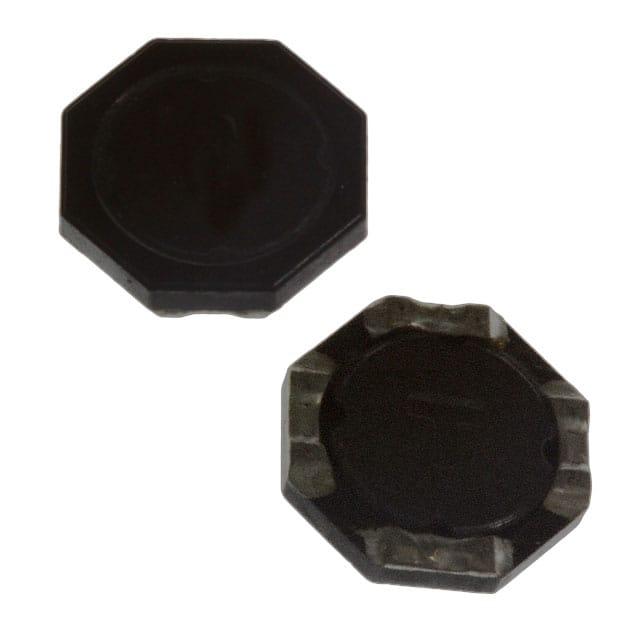

7440680082FIXED IND 8.2UH 1.35A 160MOHM SM |
550 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.35 A | 1.1A | - | Shielded | 160mOhm Max | 8.2 µH | - | 35MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
74406900052FIXED IND 520NH 4.3A 20 MOHM SMD |
548 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.3 A | 5.8A | - | Shielded | 20mOhm Max | 520 nH | - | 100MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440680017FIXED IND 1.7UH 2.5A 48 MOHM SMD |
548 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 2.4A | - | Shielded | 48mOhm Max | 1.7 µH | - | 100MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
7440690047FIXED IND 4.7UH 2.2A 70 MOHM SMD |
546 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 1.8A | - | Shielded | 70mOhm Max | 4.7 µH | - | 30MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440680180FIXED IND 18UH 900MA 325MOHM SMD |
544 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 750mA | - | Shielded | 325mOhm Max | 18 µH | - | 14MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
7440690120FIXED IND 12UH 1.35A 170MOHM SMD |
540 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.35 A | 1.2A | - | Shielded | 170mOhm Max | 12 µH | - | 9MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440680220FIXED IND 22UH 850MA 395MOHM SMD |
540 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | 700mA | - | Shielded | 395mOhm Max | 22 µH | - | 10MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
7440690033FIXED IND 3.3UH 2.55A 52MOHM SMD |
538 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.55 A | 2.3A | - | Shielded | 52mOhm Max | 3.3 µH | - | 40MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440690220FIXED IND 22UH 1A 310 MOHM SMD |
536 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 900mA | - | Shielded | 310mOhm Max | 22 µH | - | 6MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440680150FIXED IND 15UH 1.1A 240 MOHM SMD |
535 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 800mA | - | Shielded | 240mOhm Max | 15 µH | - | 20MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
7440680100FIXED IND 10UH 1.2A 200 MOHM SMD |
530 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1A | - | Shielded | 200mOhm Max | 10 µH | - | 25MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
7440690180FIXED IND 18UH 1.1A 250 MOHM SMD |
523 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.05A | - | Shielded | 250mOhm Max | 18 µH | - | 7MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440690068FIXED IND 6.8UH 1.75A 110MOHM SM |
520 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.75 A | 1.65A | - | Shielded | 110mOhm Max | 6.8 µH | - | 15MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
7440680120FIXED IND 12UH 1.15A 220MOHM SMD |
520 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.15 A | 950mA | - | Shielded | 220mOhm Max | 12 µH | - | 22MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
7440690010FIXED IND 1UH 3.6A 26 MOHM SMD |
511 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.6 A | 4A | - | Shielded | 26mOhm Max | 1 µH | - | 90MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
