固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM3012T-1R0M-CAFIXED IND 1UH 2.8A 65 MOHM SMD |
1,995 | - |
|
数据表 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 2.8 A | 3.4A | - | Shielded | 65mOhm Max | 1 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
SPM3012T-4R7M-CAFIXED IND 4.7UH 1.3A 270MOHM SMD |
1,985 | - |
|
数据表 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 1.3 A | 1.5A | - | Shielded | 270mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
SPM3012T-1R5M-CAFIXED IND 1.5UH 2.5A 90 MOHM SMD |
1,967 | - |
|
数据表 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 2.5 A | 2.8A | - | Shielded | 90mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
MPXV1D1054L100FIXED IND 10UH 7.9A 27.6MOHM SMD |
127 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 7.9 A | 12A | - | Shielded | 27.6mOhm Max | 10 µH | - | 9.5MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
PG0426.471NLFIXED IND 470NH 20A 3.4 MOHM SMD |
1,400 | - |
|
数据表 |
PG0426NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 20 A | 26A | - | Shielded | 3.4mOhm Max | 470 nH | - | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.126" (3.20mm) |
|
LHDM005300AQDV0EDUST CHOKE COIL |
0 | - |
|
数据表 |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | ±20% | 5 A | - | Vertical, No Base, 2 PC Pin | Unshielded | 23mOhm Max | 46 µH | - | - | Through Hole | - | 0.965" Dia x 0.571" W (24.50mm x 14.50mm) | - | -40°C ~ 120°C | 100 kHz | - |
|
|
AOTA-B252010S1R0MTFIXED IND 1.0UH 4.5A 30MOHM SMD |
3,790 | - |
|
数据表 |
AOTA-B252010S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.5 A | 5A | 1008 | Shielded | 30mOhm Max | 1 µH | - | 53MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
P1173.372NLFIXED IND 3.7UH 8.3A 8.5MOHM SMD |
1,928 | - |
|
数据表 |
P1173NL | Nonstandard | Tray | Active | Wirewound | - | ±30% | 8.3 A | 9.2A | - | Shielded | 8.5mOhm Max | 3.7 µH | - | 37MHz | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | - | -40°C ~ 130°C | 100 kHz | 0.315" (8.00mm) |
|
|
MPXV1D1054L150FIXED IND 15UH 6.7A 39.1MOHM SMD |
990 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 6.7 A | 11A | - | Shielded | 39.1mOhm Max | 15 µH | - | 7.5MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
NLV32T-180J-EFFIXED IND 18UH 120MA 3.3 OHM SMD |
3,719 | - |
|
数据表 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 120 mA | - | 1210 | Unshielded | 3.3Ohm Max | 18 µH | 30 @ 2.52MHz | 20MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.094" (2.40mm) |
|
CTX10-7-52LP-RFIXED IND 10UH 11.4A 8 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 11.4 A | 13.5A | - | Unshielded | 8mOhm Max | 10 µH | - | - | Through Hole | - | 1.012" Dia (25.70mm) | - | -40°C ~ 75°C | 100 kHz | 0.709" (18.00mm) |
|
HCMA1104-100-RFIXED IND 10UH 7.5A 30 MOHM SMD |
809 | - |
|
数据表 |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 7.5 A | 8.5A | - | Shielded | 30mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
S1008R-751JFIXED IND 750NH 735MA 210MOHM SM |
0 | - |
|
数据表 |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 735 mA | - | 1008 (2520 Metric) | Shielded | 210mOhm Max | 750 nH | 40 @ 25MHz | 163MHz | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | - | -55°C ~ 125°C | 25 MHz | 0.095" (2.41mm) |
|
|
LHDM003800AQDV0EDUST CHOKE COIL |
0 | - |
|
数据表 |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | ±20% | 3 A | - | Vertical, No Base, 2 PC Pin | Unshielded | 48mOhm Max | 120 µH | - | - | Through Hole | - | 0.945" Dia x 0.531" W (24.00mm x 13.50mm) | - | -40°C ~ 120°C | 100 kHz | - |
|
|
S1008-103KFIXED IND 10UH 230MA 2.1 OHM SMD |
0 | - |
|
数据表 |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 230 mA | - | 1008 (2520 Metric) | Shielded | 2.1Ohm Max | 10 µH | 30 @ 7.9MHz | 29MHz | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.095" (2.41mm) |
|
|
RL-1256-3-2200FIXED IND 2200UH 1.3A 705MOHM TH |
0 | - |
|
数据表 |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | ±10% | 1.3 A | 2.5A | Radial | Unshielded | 1.02Ohm Max | 2.2 mH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -40°C ~ 130°C | 10 kHz | 0.850" (21.59mm) |
|
2300HT-331-V-RCFIXED IND 330UH 4.9A 100 MOHM TH |
18 | - |
|
数据表 |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±15% | 4.9 A | - | - | Shielded | 100mOhm Max | 330 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 200°C | 1 kHz | - |
|
CTX150-2-52M-RFIXED IND 150UH 4.3A 71.9MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 4.3 A | 4A | - | Unshielded | 71.9mOhm Max | 150 µH | - | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | - | -40°C ~ 75°C | 100 kHz | 1.280" (32.50mm) |
|
SWF-0.90-330FIXED IND 330UH 900MA 740MOHM TH |
0 | - |
|
数据表 |
SW | Radial, Vertical Cylinder | Bulk | Active | Toroidal | Iron Powder | ±20% | 900 mA | - | - | Unshielded | 740mOhm Max | 330 µH | - | - | Through Hole | - | 0.669" Dia (17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.492" (12.50mm) |
|

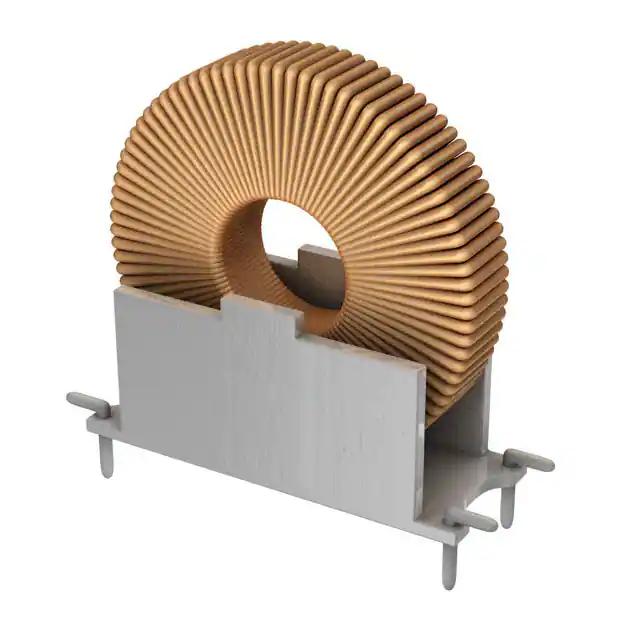

CTX10-7-52M-RFIXED IND 10UH 11.4A 8 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 11.4 A | 13.5A | - | Unshielded | 8mOhm Max | 10 µH | - | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | - | -40°C ~ 75°C | 100 kHz | 1.051" (26.70mm) |
