固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KLZ2012MHR3R3HTD25FIXED IND 3.3UH 500MA 260MOHM SM |
3,109 | - |
|
数据表 |
KLZ-HR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 500 mA | 350mA | 0805 (2012 Metric) | Shielded | 260mOhm | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Soft Termination | -55°C ~ 150°C | 2 MHz | 0.057" (1.45mm) |
|
SPM4020T-4R7M-CAFIXED IND 4.7UH 2.2A 144.1 MOHM |
278 | - |
|
数据表 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 2.2 A | 2.6A | - | Shielded | 144.1mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
MHE06031R8M-10HIGH CURRENT LOW DCR POWER INDUC |
3,936 | - |
|
数据表 |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 12.4 A | 16.4A | - | Shielded | 9.5mOhm Max | 1.8 µH | - | 34MHz | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | - | -40°C ~ 150°C | 1 MHz | 0.118" (3.00mm) |
.jpg)
|
VLS201610HBX-100M-1FIXED IND 10UH 650MA 768MOHM SMD |
3,041 | - |
|
数据表 |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 650 mA | 610mA | 0806 (2016 Metric) | Shielded | 768mOhm Max | 10 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
VLF504010MT-1R0NFIXED IND 1UH 3.08A 37 MOHM SMD |
267 | - |
|
数据表 |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 3.08 A | 2.66A | - | Shielded | 37mOhm Max | 1 µH | - | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.039" (1.00mm) |
|
SDEM20161T-4R7MSFIXED IND 4.7UH 1A 0.426OHM SMD |
2,481 | - |
|
数据表 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | ±20% | 1 A | 1.26A | 2016 | Shielded | 426mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
MHE06033R3M-10HIGH CURRENT LOW DCR POWER INDUC |
2,673 | - |
|
数据表 |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 8 A | 11A | - | Shielded | 19.2mOhm Max | 3.3 µH | - | 25MHz | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | - | -40°C ~ 150°C | 1 MHz | 0.118" (3.00mm) |
|
PM4343.332NLTFIXED IND 3.3UH 18A 6.8 MOHM SMD |
175 | - |
|
数据表 |
PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 18 A | 30A | - | Shielded | 6.8mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
SD52-150-RFIXED IND 15UH 970MA 161.8 MOHM |
2,200 | - |
|
数据表 |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 970 mA | 880mA | - | Shielded | 161.8mOhm | 15 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
NLV32T-331J-EFFIXED IND 330UH 40MA 34 OHM SMD |
2,475 | - |
|
数据表 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 40 mA | - | 1210 | Unshielded | 34Ohm Max | 330 µH | 20 @ 796kHz | 5MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 796 kHz | 0.094" (2.40mm) |
|

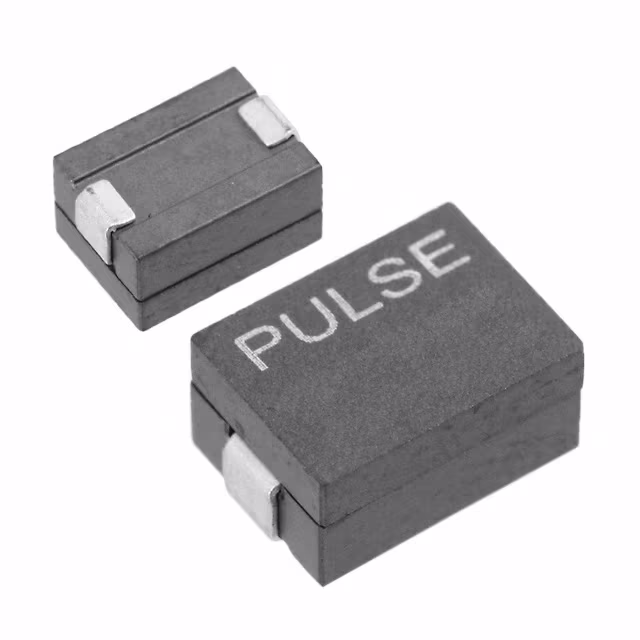

PA0511.151NLTFIXED IND 155NH 31A 0.39MOHM SMD |
1,720 | - |
|
数据表 |
PA0511NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 31 A | 40A | - | Shielded | 0.39mOhm | 155 nH | - | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | - | -40°C ~ 130°C | - | 0.195" (4.96mm) |
|
|
NLV32T-R12J-EFFIXED IND 120NH 450MA 220MOHM SM |
2,341 | - |
|
数据表 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 1210 | Unshielded | 220mOhm Max | 120 nH | 30 @ 25.2MHz | 500MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 25.2 MHz | 0.094" (2.40mm) |
|
|
SPM5012T-1R0M-CAFIXED IND 1UH 4.1A 44 MOHM SMD |
985 | - |
|
数据表 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 4.1 A | 6.3A | - | Shielded | 44mOhm Max | 1 µH | - | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
LSQPA322525T100MRFIXED IND 10UH 900MA 172.9 MOHM |
2,306 | - |
|
数据表 |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 900 mA | 900mA | 1210 | Unshielded | 172.9mOhm Max | 10 µH | - | 23MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.106" (2.70mm) |
|
125CDMCCDS-R36MCFIXED IND 360NH 40A 0.95MOHM SMD |
497 | - |
|
数据表 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 40 A | 80A | SMD | Shielded | 0.95mOhm Max | 360 nH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
NLV32T-R22J-EFFIXED IND 220NH 450MA 320MOHM SM |
2,233 | - |
|
数据表 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | 1210 | Unshielded | 320mOhm Max | 220 nH | 30 @ 25.2MHz | 350MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 25.2 MHz | 0.094" (2.40mm) |
|
125CDMCCDS-8R2MCFIXED IND 8.2UH 10A 19 MOHM SMD |
139 | - |
|
数据表 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 10 A | 15A | SMD | Shielded | 19mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
MPL-AL4020-1R2FIXED IND 1.2UH 7.4A 12.2MOHM SM |
1,485 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 7.4 A | 7.5A | - | Unshielded | 12.2mOhm | 1.2 µH | - | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
|
ASPIAIG-Q7030-3R3M-TFIXED IND 3.3UH 10A 18 MOHM SMD |
1,346 | - |
|
数据表 |
ASPIAIG-Q7030 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Alloy Powder | ±20% | 10 A | 13A | - | Shielded | 18mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
ASPIAIG-Q7030-2R2M-TFIXED IND 2.2UH 13A 13.7MOHM SMD |
1,330 | - |
|
数据表 |
ASPIAIG-Q7030 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Alloy Powder | ±20% | 13 A | 17A | - | Shielded | 13.7mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
