固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P0151NLTFIXED IND 220UH 810MA 673MOHM SM |
0 | - |
|
数据表 |
Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | - | 810 mA | - | - | Unshielded | 673mOhm Max | 220 µH | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 130°C | - | 0.215" (5.46mm) |
|
|
CTX20-5-52M-RFIXED IND 20UH 7.8A 26 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 7.8 A | 9.3A | - | Unshielded | 26mOhm Max | 20 µH | - | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | - | -40°C ~ 75°C | 100 kHz | 1.004" (25.50mm) |
|
|
1330R-36JFIXED IND 4.7UH 239MA 1.2OHM SMD |
0 | - |
|
数据表 |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | ±5% | 239 mA | - | - | Unshielded | 1.2Ohm Max | 4.7 µH | 45 @ 7.9MHz | 75MHz | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | - | -55°C ~ 105°C | 7.9 MHz | 0.145" (3.68mm) |
|
|
CTX500-1-52M-RFIXED IND 500UH 1.7A 361 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 1.7 A | 1.9A | - | Unshielded | 361mOhm Max | 500 µH | - | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | - | -40°C ~ 75°C | 100 kHz | 0.984" (25.00mm) |
|
|
LHDM003101ARDV0EDUST CHOKE COIL |
0 | - |
|
数据表 |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | ±20% | 3 A | - | Vertical, No Base, 2 PC Pin | Unshielded | 58mOhm Max | 140 µH | - | - | Through Hole | - | 1.063" Dia x 0.551" W (27.00mm x 14.00mm) | - | -40°C ~ 120°C | 100 kHz | - |
|
SD6030-680-RFIXED IND 65.6UH 920MA 355 MOHM |
12,928 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 920 mA | 520mA | - | Shielded | 355mOhm Max | 65.6 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
.jpg)
|
MPI2512V1-1R0-RFIXED IND 1UH 3.9A 44 MOHM SMD |
3,679 | - |
|
数据表 |
MPI25-V1 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | - | ±20% | 3.9 A | 4.5A | - | Shielded | 44mOhm Max | 1 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
SCIHP0530-3R3FIXED IND 3.3UH 5A SMD |
3,425 | - |
|
数据表 |
SCIHP0530 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5 A | 7A | - | Shielded | - | 3.3 µH | - | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | - | -55°C ~ 125°C | 200 kHz | 0.118" (3.00mm) |
|
PF0560.333NLFIXED IND 33UH 2.2A 93 MOHM SMD |
2,341 | - |
|
数据表 |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | ±25% | 2.2 A | 2.3A | - | Shielded | 93mOhm Max | 33 µH | - | 14MHz | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
CMLB104T-4R7MSFIXED IND 4.7UH 8.5A 20MOHM SMD |
2,092 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 8.5 A | 13A | - | Shielded | 20mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
CDRH104RNP-331NCFIXED IND 330UH 520MA 1.09OHM SM |
2,091 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 520 mA | 700mA | - | Shielded | 1.09Ohm Max | 330 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLB104T-330MSFIXED IND 33UH 4.4A 91 MOHM SMD |
1,613 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 4.4 A | 5A | - | Shielded | 91mOhm Max | 33 µH | - | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
MPXV1D1054L330FIXED IND 33UH 4.6A 80.5MOHM SMD |
1,389 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 4.6 A | 6A | - | Shielded | 80.5mOhm Max | 33 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|

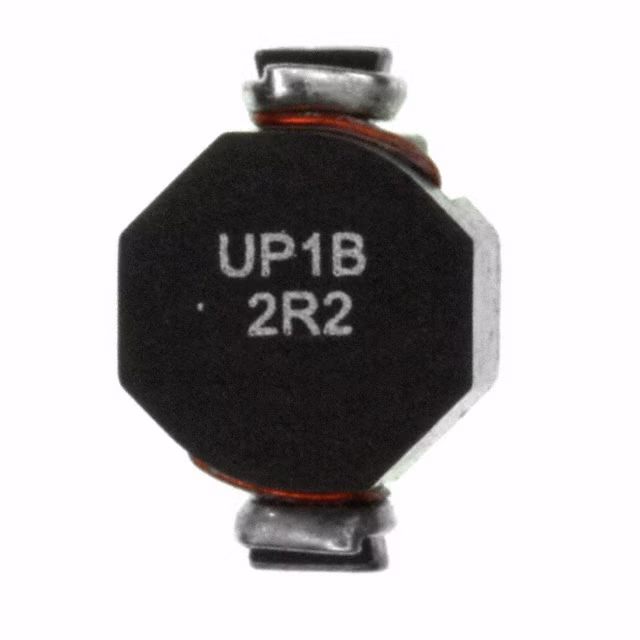

UP1B-2R2-RFIXED IND 2.2UH 3.1A 36.3MOHM SM |
1,167 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.1 A | 3.5A | - | Unshielded | 36.3mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | - | -40°C ~ 85°C | 100 kHz | 0.197" (5.00mm) |
|
|
CMLB104T-100MSFIXED IND 10UH 7.5A 30 MOHM SMD |
1,092 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 7.5 A | 7.2A | - | Shielded | 30mOhm Max | 10 µH | - | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
MPXV1D1054L1R0FIXED IND 1UH 22.9A 3.34MOHM SMD |
1,070 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 22.9 A | 27A | - | Shielded | 3.34mOhm Max | 1 µH | - | 31MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
|
SCIHP0412-R047FIXED IND 47NH 13A SMD |
1,058 | - |
|
数据表 |
SCIHP0412 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 13 A | 32A | - | Shielded | - | 47 nH | - | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | - | -40°C ~ 125°C | 200 kHz | 0.047" (1.20mm) |
|
|
CMLS104T-R56MSFIXED IND 560NH 25A 1.8MOHM SMD |
995 | - |
|
数据表 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 25 A | 40A | - | Shielded | 1.8mOhm Max | 560 nH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLB104T-R36MSFIXED IND 360NH 33A 1.18MOHM SMD |
951 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 33 A | 42A | - | Shielded | 1.18mOhm Max | 360 nH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLB104T-R56MSFIXED IND 560NH 25A 1.8MOHM SMD |
950 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 25 A | 28A | - | Shielded | 1.8mOhm Max | 560 nH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
