固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P0250.473NLTFIXED IND 47UH 2.6A 86 MOHM SMD |
3,285 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 2.6 A | 4.5A | - | Unshielded | 86mOhm Max | 47 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
IHLM2525CZERR33M01FIXED IND 330NH 20A 3.9 MOHM SMD |
1,155 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 20 A | 30A | - | Shielded | 3.9mOhm Max | 330 nH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0840CDMCCDS-6R8MCFIXED IND 6.8UH 6A 34 MOHM SMD |
1,000 | - |
|
数据表 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 6 A | 6.4A | - | Shielded | 34mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
0840CDMCCDS-5R6MCFIXED IND 5.6UH 7A 26.5MOHM SMD |
852 | - |
|
数据表 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 7 A | 6.5A | - | Shielded | 26.5mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
VLBU9664100LT-R18LFIXED IND 180NH 75A 0.138MOHM SM |
669 | - |
|
数据表 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 75 A | - | - | Unshielded | 0.138mOhm Max | 180 nH | - | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
MWSA1004S-1R5MTFIXED IND 1.5UH 16A 4.2MOHM SMD |
520 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 16 A | 24A | - | Shielded | 4.2mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
B82472P6333M000FIXED IND 33UH 1.15A 150MOHM SMD |
478 | - |
|
数据表 |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.15 A | 1.05A | - | Shielded | 150mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.177" (4.50mm) |
|
B82479A1223M000FIXED IND 22UH 3.5A 47 MOHM SMD |
443 | - |
|
数据表 |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.5 A | 7A | - | Unshielded | 47mOhm Max | 22 µH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
CD43NP-470KCFIXED IND 47UH 440MA 844MOHM SMD |
164 | - |
|
数据表 |
CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 440 mA | - | - | Unshielded | 844mOhm Max | 47 µH | - | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.138" (3.50mm) |
|
PGL7252HLTPOWER IND BEAD |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 40 A | 24A | - | Unshielded | 0.2mOhm | 170 nH | - | - | Surface Mount | - | 0.484" L x 0.315" W (12.30mm x 8.00mm) | 2 Phase | -40°C ~ 125°C | 1 MHz | 0.236" (6.00mm) |
|
|
SPRH1210-561MSMD POWER INDUCTOR |
245 | - |
|
数据表 |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.13 A | 1.5A | 2-SMD | Shielded | 606mOhm Max | 560 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
1025R-80KFIXED IND 330UH 45MA 28 OHM TH |
0 | - |
|
数据表 |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | ±10% | 45 mA | - | - | Unshielded | 28Ohm Max | 330 µH | 30 @ 790kHz | 7MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
|
SPRH1210-4R7NSMD POWER INDUCTOR |
240 | - |
|
数据表 |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±30% | 8.01 A | 16.08A | 2-SMD | Shielded | 12.2mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
CTX150-1-52M-RFIXED IND 150UH 2.1A 162 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 2.1 A | 2.3A | - | Unshielded | 162mOhm Max | 150 µH | - | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | - | -40°C ~ 75°C | 100 kHz | 0.953" (24.20mm) |
|
|
SPRH1210-680MSMD POWER INDUCTOR |
240 | - |
|
数据表 |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.85 A | 4.3A | 2-SMD | Shielded | 95.6mOhm Max | 68 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
|
PGL7253HLTPOWER IND BEAD |
0 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 40 A | 24A | - | Unshielded | 0.2mOhm | 170 nH | - | - | Surface Mount | - | 0.720" L x 0.315" W (18.30mm x 8.00mm) | 2 Phase | -40°C ~ 125°C | 1 MHz | 0.236" (6.00mm) |
|
|
15M222KMOLDED UNSHIELDED RF COILS AXIAL |
0 | - |
|
数据表 |
15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | ±10% | 175 mA | - | Axial | Unshielded | 2.5Ohm Max | 22 µH | 75 @ 2.5MHz | 30MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|

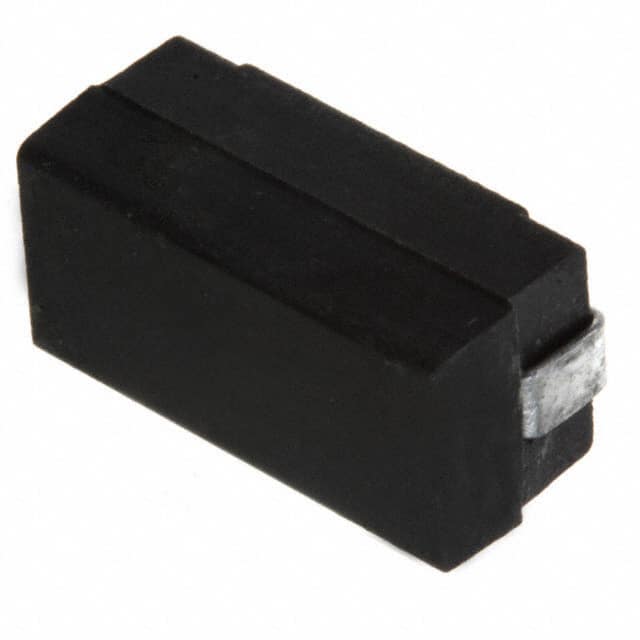

5022R-102JFIXED IND 1UH 1.125A 290MOHM SMD |
0 | - |
|
数据表 |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | ±5% | 1.125 A | - | - | Unshielded | 290mOhm Max | 1 µH | 50 @ 25MHz | 200MHz | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | 0.230" (5.84mm) |
|
SPD73R-223MFIXED IND 22UH 1.75A 190MOHM SMD |
0 | - |
|
数据表 |
SPD73R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.75 A | 1.75A | - | Shielded | 190mOhm Max | 22 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 1 kHz | 0.154" (3.90mm) |
|
|
IH05BQ5R0KFIXED IND 5UH 14A 12 MOHM TH |
0 | - |
|
数据表 |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | ±10% | 14 A | 25A | - | Unshielded | 12mOhm Max | 5 µH | - | - | Through Hole | - | 0.625" Dia x 0.875" L (15.88mm x 22.23mm) | - | -55°C ~ 125°C | 1 kHz | - |
