固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

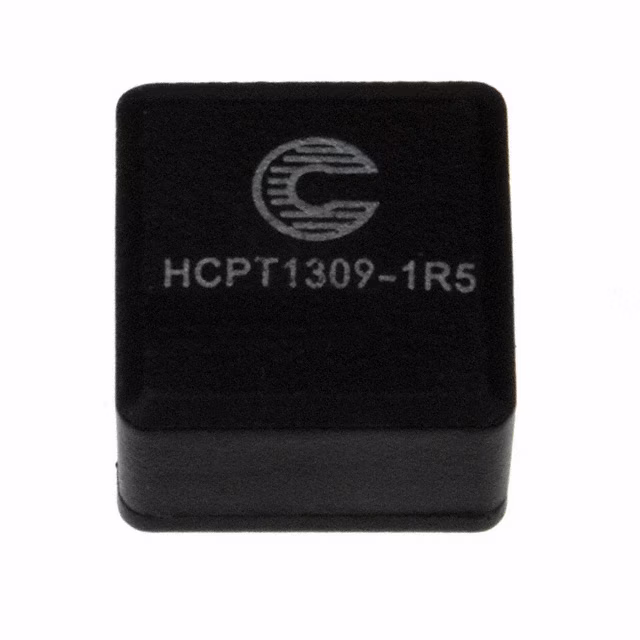

HCPT1309-1R5-RFIXED IND 1.59UH 13.7A 3.82 MOHM |
0 | - |
|
数据表 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | ±20% | 13.7 A | 30.6A | - | Unshielded | 3.82mOhm | 1.59 µH | - | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.354" (9.00mm) |
|
FP1010R3-R100-RIND FLAT PAC 100NH 63A 2 PADS |
0 | - |
|
数据表 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 78 A | 95A | - | Shielded | 0.145mOhm | 100 nH | - | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.402" (10.20mm) |
|

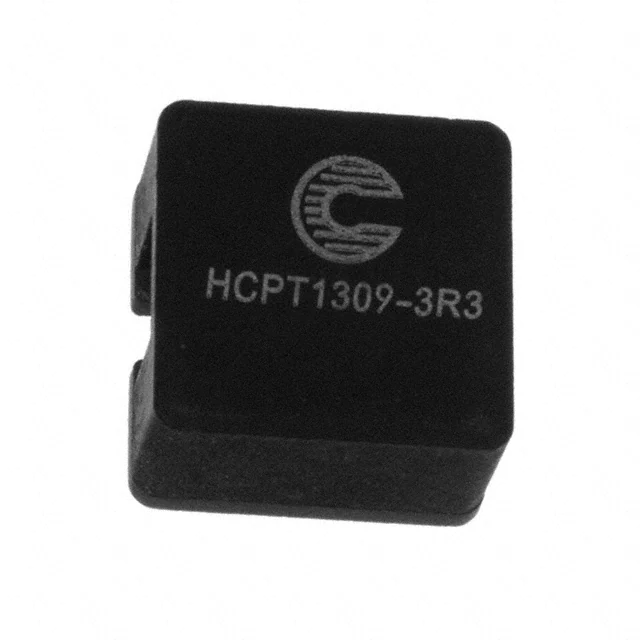

HCPT1309-3R3-RFIXED IND 3.31UH 11.4A 4.8 MOHM |
0 | - |
|
数据表 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | ±20% | 11.4 A | 21A | - | Unshielded | 4.8mOhm | 3.31 µH | - | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.354" (9.00mm) |
|
LPS6235-823MRCPOWER INDUCTOR, SHIELDED, 20% TO |
646 | - |
|
数据表 |
LPS6235 | 2424 (6060 Metric) | Strip | Active | Drum Core | Ferrite | ±20% | 720 mA | 460mA | 2424 | Shielded | 315mOhm Max | 82 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|

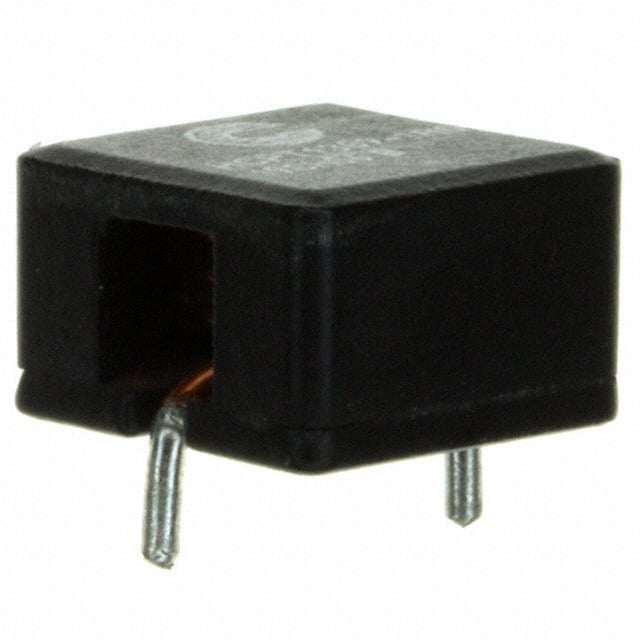

HCPT1309-1R0-RFIXED IND 960NH 19.4A 1.9MOHM TH |
0 | - |
|
数据表 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | ±20% | 19.4 A | 40A | - | Unshielded | 1.9mOhm | 960 nH | - | - | Through Hole | - | 0.539" L x 0.472" W (13.70mm x 12.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.354" (9.00mm) |
|
CTGS54F-680K68UH SMD UNSHLD POWER INDUCTOR |
645 | - |
|
数据表 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 610 mA | - | - | Unshielded | 460mOhm Max | 68 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.193" (4.90mm) |
|
CTX10-2-52M-RFIXED IND 10UH 4.7A 18.3 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 4.7 A | 4.5A | - | Unshielded | 18.3mOhm Max | 10 µH | - | - | Through Hole | - | 0.535" L x 0.449" W (13.60mm x 11.40mm) | - | -40°C ~ 75°C | 100 kHz | 0.461" (11.70mm) |
|
|
CMLB177T-100MSIND SMD 10.0UH MOLDING CHOKE |
0 | - |
|
数据表 |
CMLB177T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 13 A | 18.5A | - | Unshielded | 9.9mOhm Max | 10 µH | - | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
SPRH1210-330MSMD POWER INDUCTOR |
640 | - |
|
数据表 |
SPRH1210 | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.05 A | 6.3A | 2-SMD | Shielded | 49.7mOhm Max | 33 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Drum Core, High Current, Low DCR | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|

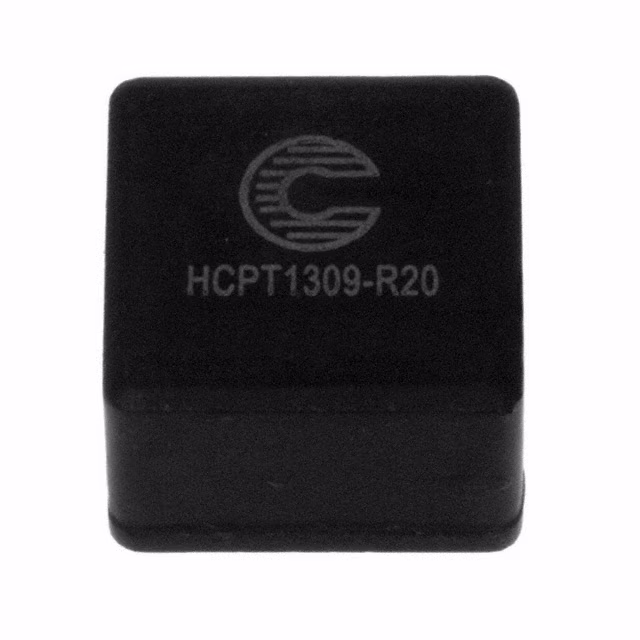

HCPT1309-R20-RFIXED IND 200NH 43.1A 0.426 MOHM |
0 | - |
|
数据表 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | ±20% | 43.1 A | 90A | - | Unshielded | 0.426mOhm | 200 nH | - | - | Through Hole | - | 0.551" L x 0.480" W (14.00mm x 12.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.354" (9.00mm) |
|
|
2510R-96KFIXED IND 1MH 20MA 108 OHM SMD |
0 | - |
|
数据表 |
2510R | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 20 mA | - | - | Unshielded | 108Ohm Max | 1 mH | 15 @ 790kHz | 2.4MHz | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | - | -55°C ~ 105°C | 790 kHz | 0.110" (2.79mm) |
|
PM4343.331NLTFIXED IND 330NH 46A 800 MOHM SMD |
338 | - |
|
数据表 |
PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 46 A | 68A | - | Shielded | 800mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
VLBUC12060120R10LF4INDUCTOR |
18 | - |
|
数据表 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±15% | 70 A | 132A | - | Unshielded | 0.138mOhm Max | 100 nH | - | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.472" (12.00mm) |
|
HCPT1309-R47-RFIXED IND 490NH 34A 0.624MOHM TH |
0 | - |
|
数据表 |
HCPT1309 | Radial, Horizontal | Bulk | Active | Drum Core, Wirewound | Iron Powder | ±20% | 34 A | 55A | - | Unshielded | 0.624mOhm | 490 nH | - | - | Through Hole | - | 0.551" L x 0.480" W (14.00mm x 12.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.354" (9.00mm) |
|
|
LPS6235-124MRCPOWER INDUCTOR, SHIELDED, 20% TO |
258 | - |
|
数据表 |
LPS6235 | 2424 (6060 Metric) | Strip | Active | Drum Core | Ferrite | ±20% | 600 mA | 440mA | 2424 | Shielded | 435mOhm Max | 120 µH | - | 8.3MHz | Surface Mount | AEC-Q200 | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
S1210R-563KFIXED IND 56UH 160MA 6.3 OHM SMD |
0 | - |
|
数据表 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 160 mA | - | 1210 | Shielded | 6.3Ohm Max | 56 µH | 40 @ 2.5MHz | 8MHz | Surface Mount | - | 0.128" L x 0.095" W (3.25mm x 2.42mm) | - | -55°C ~ 125°C | 2.5 MHz | 0.101" (2.57mm) |
|
1537-90JFIXED IND 200UH 120MA 7.1 OHM TH |
15 | - |
|
数据表 |
1537 | Axial | Tape & Reel (TR) | Active | Molded | Iron | ±5% | 120 mA | - | - | Unshielded | 7.1Ohm Max | 200 µH | 65 @ 790kHz | 6.5MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
|
VLBUC12060120R08MF4INDUCTOR |
0 | - |
|
数据表 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±20% | 70 A | 168A | - | Unshielded | 0.138mOhm Max | 80 nH | - | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.472" (12.00mm) |
|
|
CTX20-5-52LP-RFIXED IND 20UH 7.8A 26 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 7.8 A | 9.3A | - | Unshielded | 26mOhm Max | 20 µH | - | - | Through Hole | - | 0.965" Dia (24.50mm) | - | -40°C ~ 75°C | 100 kHz | 0.654" (16.60mm) |
|
|
1945-39JFIXED IND 1MH 104MA 16.5 OHM TH |
0 | - |
|
数据表 |
1945 | Axial | Tape & Reel (TR) | Active | Molded | Iron | ±5% | 104 mA | - | - | Unshielded | 16.5Ohm Max | 1 mH | 60 @ 790kHz | 2.24MHz | Through Hole | - | 0.181" Dia x 0.433" L (4.59mm x 11.01mm) | - | -55°C ~ 125°C | 790 kHz | - |
