固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSAB1265A-100MSMD MOLDING POWER CHOKE CODACA |
370 | - |
|
数据表 |
CSAB1265A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 10 A | 14A | 2-SMD | Shielded | 16.5mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.504" L x 0.543" W (12.80mm x 13.80mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.248" (6.30mm) |
|

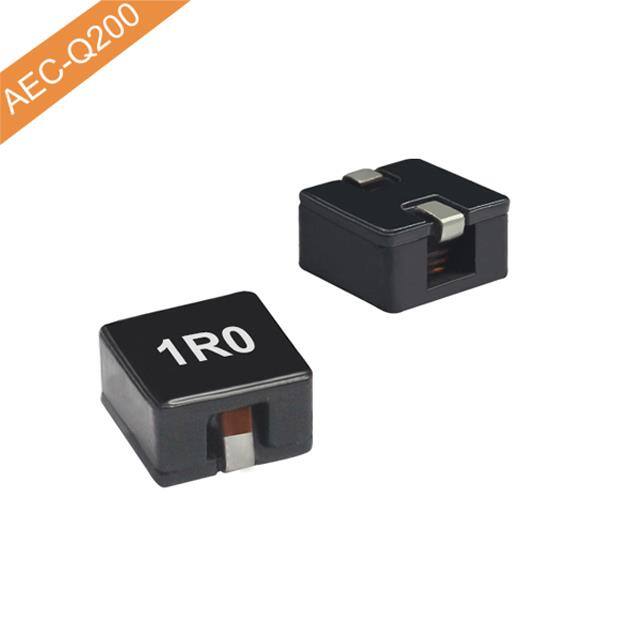

CSBX0640-R68MSMD HIGH CURRENT POWER INDUCTOR CODACA |
848 | - |
|
数据表 |
CSBX0640 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 17.5 A | 30A | - | Shielded | 3.2mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | High Saturation | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
VSAB1365-220MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
387 | - |
|
数据表 |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 7 A | 5.5A | - | Shielded | 39.5mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.248" (6.30mm) |
|
|
VSAB1365-100MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
364 | - |
|
数据表 |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 11 A | 7.5A | - | Shielded | 17.8mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.248" (6.30mm) |
|
|
VSAB1365-6R8MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
400 | - |
|
数据表 |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 11 A | 9A | - | Shielded | 11.5mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.248" (6.30mm) |
|
|
VSAB1365-150MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
400 | - |
|
数据表 |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 7.5 A | 6A | - | Shielded | 28mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.248" (6.30mm) |
|
|
VSAB1365-4R7MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
400 | - |
|
数据表 |
VSAB1365 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 15 A | 11.5A | - | Shielded | 8.6mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.248" (6.30mm) |
|
|
CSAC1265-150MSMD MOLDING POWER CHOKE CODACA |
799 | - |
|
数据表 |
CSAC1265 | Nonstandard | Cut Tape (CT) | Active | Molded | Carbonyl Powder | ±20% | 8.5 A | 12A | - | Shielded | 30mOhm Max | 15 µH | - | - | Surface Mount | - | 0.528" L x 0.498" W (13.40mm x 12.65mm) | - | -40°C ~ 125°C | 100 kHz | 0.260" (6.60mm) |
|
|
CSBX0630-1R5MSMD HIGH CURRENT POWER INDUCTOR CODACA |
1,500 | - |
|
数据表 |
CSBX0630 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | ±20% | 8.7 A | 15A | - | Shielded | 9.1mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
CSAD0660-220MSMD MOLDING POWER CHOKE CODACA |
800 | - |
|
数据表 |
CSAD0660 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 2.4 A | 4.3A | 4-SMD | Shielded | 112mOhm Max | 22 µH | - | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.299" (7.60mm) |
