固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBL0650-R25MSMD HIGH CURRENT POWER INDUCTOR CODACA |
497 | - |
|
数据表 |
CSBL0650 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 21 A | 35A | - | Shielded | 1mOhm Max | 250 nH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | - | -50°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|
|
CSBL0650-1R0MSMD HIGH CURRENT POWER INDUCTOR CODACA |
455 | - |
|
数据表 |
CSBL0650 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 15 A | 21A | - | Shielded | 4.1mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | - | -50°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|
|
CSBL0650-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
408 | - |
|
数据表 |
CSBL0650 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | ±20% | 6 A | 7.8A | - | Shielded | 23.6mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | - | -50°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|

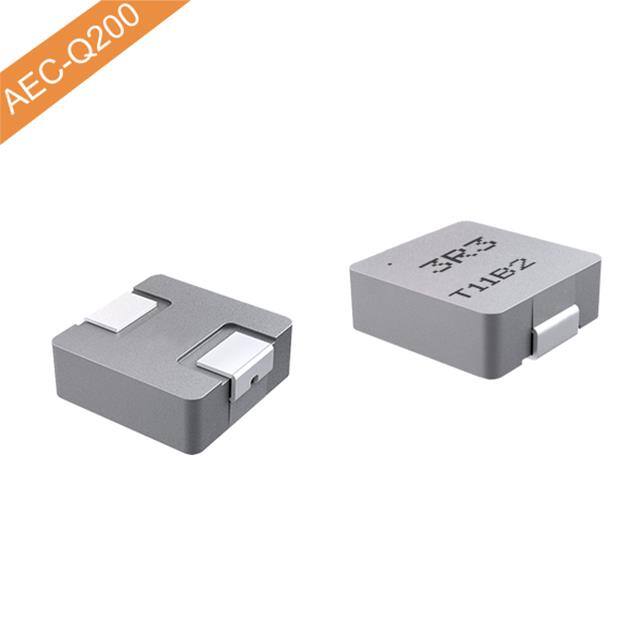

CSAB1250A-R47MSMD MOLDING POWER CHOKE CODACA |
291 | - |
|
数据表 |
CSAB1250A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 35 A | 50A | - | Shielded | 1.2mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.543" L x 0.496" W (13.80mm x 12.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
CSHB0530R-6R8MSMD MOLDING POWER CHOKE CODACA |
1,965 | - |
|
数据表 |
CSHB0530R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | ±20% | 5 A | 5.5A | - | Shielded | 58mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CSHB0540R-5R6MSMD MOLDING POWER CHOKE CODACA |
1,502 | - |
|
数据表 |
CSHB0540R | Nonstandard | Tape & Reel (TR) | Active | Molded | Magnetic Powder | ±20% | 6 A | 6.5A | - | Shielded | 33.9mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CSHB0540R-2R2MSMD MOLDING POWER CHOKE CODACA |
1,481 | - |
|
数据表 |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | ±20% | 10 A | 10.5A | - | Shielded | 18.9mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CSHB0540R-3R3MSMD MOLDING POWER CHOKE CODACA |
1,480 | - |
|
数据表 |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | ±20% | 8.5 A | 9A | - | Shielded | 24mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CSHB0540R-6R8MSMD MOLDING POWER CHOKE CODACA |
1,213 | - |
|
数据表 |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Ferrite | ±20% | 5.2 A | 5.6A | - | Shielded | 42.5mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | Low Loss, Soft Saturation | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CSHB0540R-220MSMD MOLDING POWER CHOKE CODACA |
1,048 | - |
|
数据表 |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | ±20% | 3.3 A | 3.3A | - | Shielded | 167mOhm Max | 22 µH | - | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
