固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM1008S-100M-RCFIXED IND 10UH 780MA 1 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 780 mA | - | 1008 (2520 Metric) | Shielded | 1Ohm Max | 10 µH | 38 @ 1MHz | 105MHz | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
|
PM1008S-1R0M-RCFIXED IND 1UH 3A 50 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3 A | - | 1008 (2520 Metric) | Shielded | 50mOhm Max | 1 µH | 35 @ 1MHz | 344MHz | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
|
PM1008S-1R8M-RCFIXED IND 1.8UH 2A 90 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | 1008 (2520 Metric) | Shielded | 90mOhm Max | 1.8 µH | 35 @ 1MHz | 225MHz | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
|
PM1008S-2R7M-RCFIXED IND 2.7UH 1.3A 140MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | - | 1008 (2520 Metric) | Shielded | 140mOhm Max | 2.7 µH | 38 @ 1MHz | 185MHz | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
|
CS321613-150KFIXED IND 15UH 25MA 1.1 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 25 mA | - | 1206 (3216 Metric) | Shielded | 1.1Ohm Max | 15 µH | 45 @ 1MHz | 19MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
CS321613-2R7KFIXED IND 2.7UH 50MA 600MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 50 mA | - | 1206 (3216 Metric) | Shielded | 600mOhm Max | 2.7 µH | 80 @ 10MHz | 45MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 10 MHz | 0.059" (1.50mm) |
|

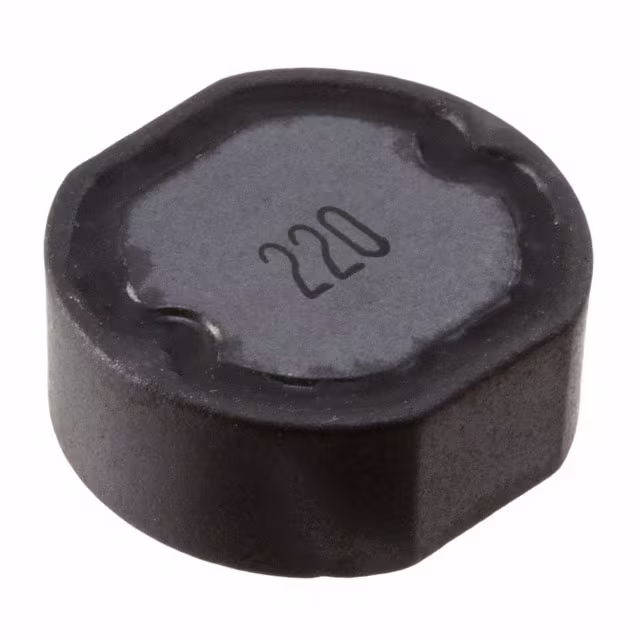

PM125S-220M-RCFIXED IND 22UH 2.2A 70 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.2 A | 4.04A | - | Shielded | 70mOhm Max | 22 µH | - | 15MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.232" (5.90mm) |
|
PM3340-681M-RCFIXED IND 680UH 200MA 1.2OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3340 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 200 mA | 1A | - | Unshielded | 1.2Ohm Max | 680 µH | - | - | Surface Mount | - | 0.512" L x 0.402" W (13.00mm x 10.20mm) | - | -55°C ~ 105°C | 100 kHz | 0.453" (11.50mm) |
|
SDE6603-102MFIXED IND 1MH 70MA 13.8 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 70 mA | 100mA | - | Unshielded | 13.8Ohm Max | 1 mH | - | 2MHz | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -25°C ~ 105°C | 100 kHz | 0.115" (2.92mm) |
|
|
CS321613-R15KFIXED IND 150NH 250MA 200MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 250 mA | - | 1206 (3216 Metric) | Shielded | 200mOhm Max | 150 nH | 50 @ 25MHz | 200MHz | Surface Mount | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -55°C ~ 125°C | 25 MHz | 0.059" (1.50mm) |
