固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F756AI-RCFIXED IND 7.5UH 566MA 624MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 566 mA | - | - | Unshielded | 624mOhm Max | 7.5 µH | 32 @ 7.9MHz | 44MHz | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
70F392AF-RCFIXED IND 39MH 41MA 147 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 41 mA | - | - | Unshielded | 147Ohm Max | 39 mH | 59 @ 79kHz | 220kHz | Through Hole | - | 0.370" Dia x 0.630" L (9.40mm x 16.00mm) | - | -55°C ~ 105°C | 79 kHz | - |
|
70F155AI-RCFIXED IND 15UH 250MA 1.92 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 250 mA | - | - | Unshielded | 1.92Ohm Max | 15 µH | 52 @ 2.5MHz | 16MHz | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
70F224AI-RCFIXED IND 220UH 114MA 11.5OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 114 mA | - | - | Unshielded | 11.5Ohm Max | 220 µH | 46 @ 790kHz | 2.5MHz | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
70F275AI-RCFIXED IND 27UH 213MA 2.64 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 213 mA | - | - | Unshielded | 2.64Ohm Max | 27 µH | 49 @ 2.5MHz | 12MHz | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
70F107AP-RCFIXED IND 100NH 3.922A 130MOHM Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | ±20% | 3.922 A | - | - | Unshielded | 130mOhm Max | 100 nH | 49 @ 25MHz | 600MHz | Through Hole | - | 0.150" Dia x 0.310" L (3.81mm x 7.87mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
70F566AI-RCFIXED IND 5.6UH 637MA 492MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 637 mA | - | - | Unshielded | 492mOhm Max | 5.6 µH | 41 @ 7.9MHz | 49MHz | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|

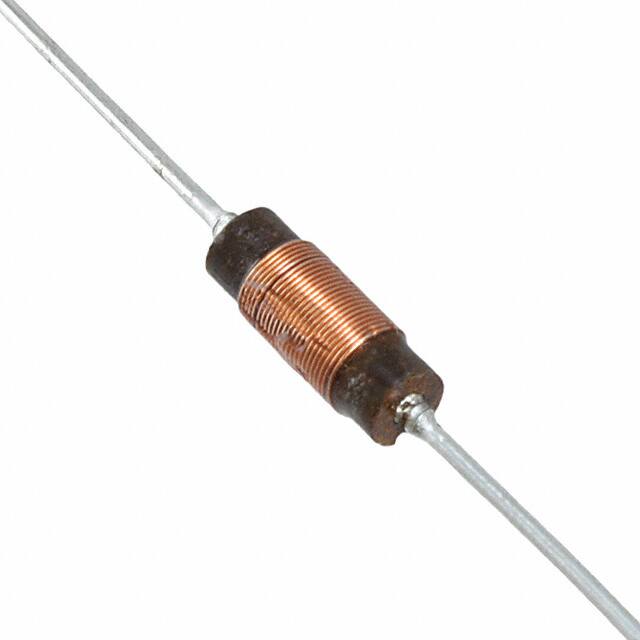

70F757AP-RCFIXED IND 750NH 870MA 264MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | ±20% | 870 mA | - | - | Unshielded | 264mOhm Max | 750 nH | 48 @ 25MHz | 224MHz | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - | -55°C ~ 125°C | 25 MHz | - |
|

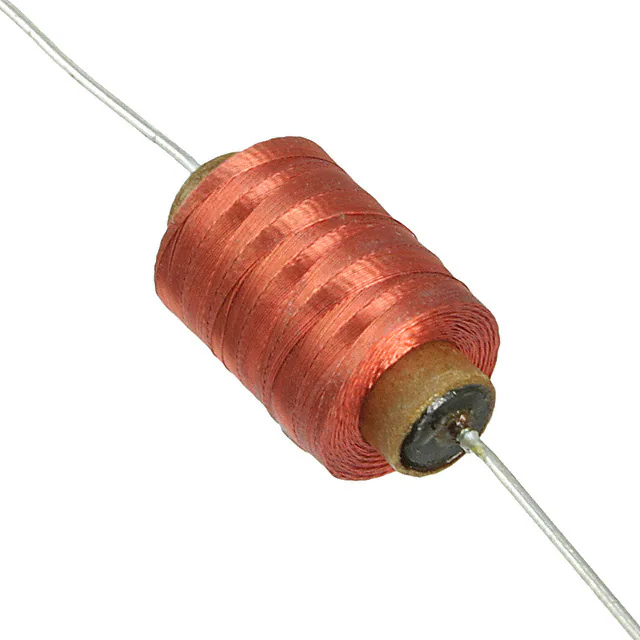

70F251AF-RCFIXED IND 250MH 37MA 468 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 37 mA | - | - | Unshielded | 468Ohm Max | 250 mH | 52 @ 25kHz | 65kHz | Through Hole | - | 0.550" Dia x 0.880" L (13.97mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|

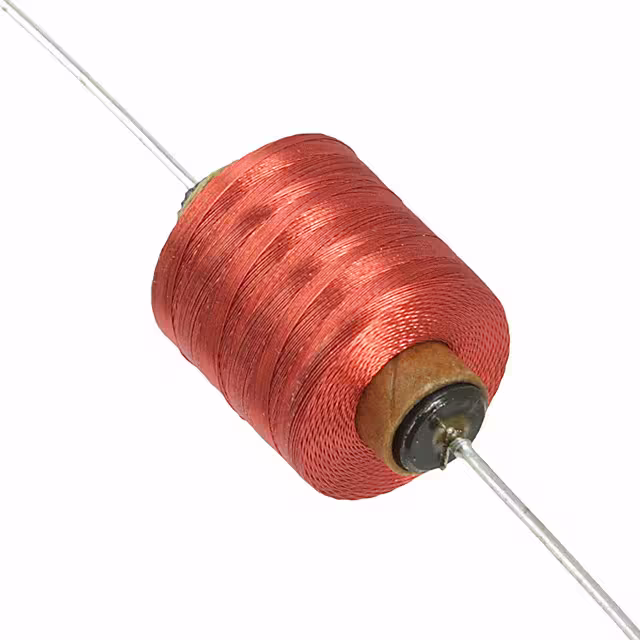

70F501AF-RCFIXED IND 500MH 30MA 736 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | - | Unshielded | 736Ohm Max | 500 mH | 53 @ 25kHz | 52kHz | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
