固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5622-RCFIXED IND 500UH 5A 90 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 5 A | - | - | Unshielded | 90mOhm Max | 500 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.110" (28.19mm) |
|
6306-RCFIXED IND 10MH 100MA 31 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | - | Unshielded | 31Ohm Max | 10 mH | 95 @ 79.6kHz | 710kHz | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - | -55°C ~ 105°C | 79.6 kHz | - |
|
6302-RCFIXED IND 2.5MH 160MA 9 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 160 mA | - | - | Unshielded | 9Ohm Max | 2.5 mH | 95 @ 252kHz | 1.3MHz | Through Hole | - | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | - | -55°C ~ 105°C | 252 kHz | - |
|

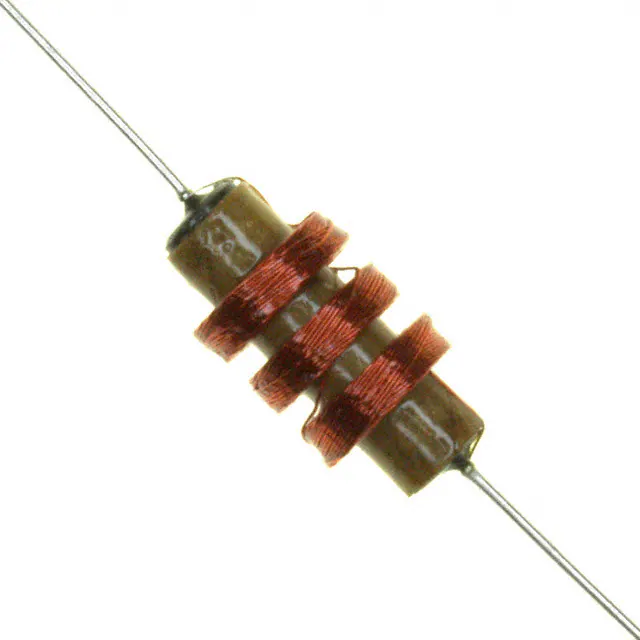

6304-RCFIXED IND 5MH 160MA 14 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 160 mA | - | - | Unshielded | 14Ohm Max | 5 mH | 80 @ 252kHz | 1MHz | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - | -55°C ~ 105°C | 252 kHz | - |
|
CI100505-1N2DFIXED IND 1.2NH 300MA 90MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 90mOhm Max | 1.2 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-1N8DFIXED IND 1.8NH 300MA 120MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm Max | 1.8 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-2N7DFIXED IND 2.7NH 300MA 130MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 130mOhm Max | 2.7 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-3N9DFIXED IND 3.9NH 300MA 210MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 210mOhm Max | 3.9 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-5N6DFIXED IND 5.6NH 300MA 230MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 230mOhm Max | 5.6 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
CI100505-12NJFIXED IND 12NH 200MA 400MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 200 mA | - | 0402 (1005 Metric) | Unshielded | 400mOhm Max | 12 nH | 8 @ 100MHz | 2.7GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
