固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL187-223J-RCFIXED IND 22MH 30MA 80 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | - | Unshielded | 80Ohm Max | 22 mH | 100 @ 79.6kHz | 300kHz | Through Hole | - | 0.315" Dia (8.00mm) | - | -55°C ~ 105°C | 79.6 kHz | 0.441" (11.20mm) |
|
|
RL187-273J-RCFIXED IND 27MH 30MA 80 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | - | Unshielded | 80Ohm Max | 27 mH | 100 @ 79.6kHz | 300kHz | Through Hole | - | 0.315" Dia (8.00mm) | - | -55°C ~ 105°C | 79.6 kHz | 0.441" (11.20mm) |
|
|
RL187-333J-RCFIXED IND 33MH 30MA 80 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
RL187 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | - | Unshielded | 80Ohm Max | 33 mH | 100 @ 79.6kHz | 300kHz | Through Hole | - | 0.315" Dia (8.00mm) | - | -55°C ~ 105°C | 79.6 kHz | 0.441" (11.20mm) |
|
9250A-106-RCFIXED IND 10MH 24MA 137 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 24 mA | 14mA | - | Shielded | 137Ohm Max | 10 mH | 40 @ 250kHz | 470kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|
9250A-107-RCFIXED IND 100MH 11MA 678 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 11 mA | 3mA | - | Shielded | 678Ohm Max | 100 mH | 18 @ 79kHz | 110kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 79 kHz | - |
|

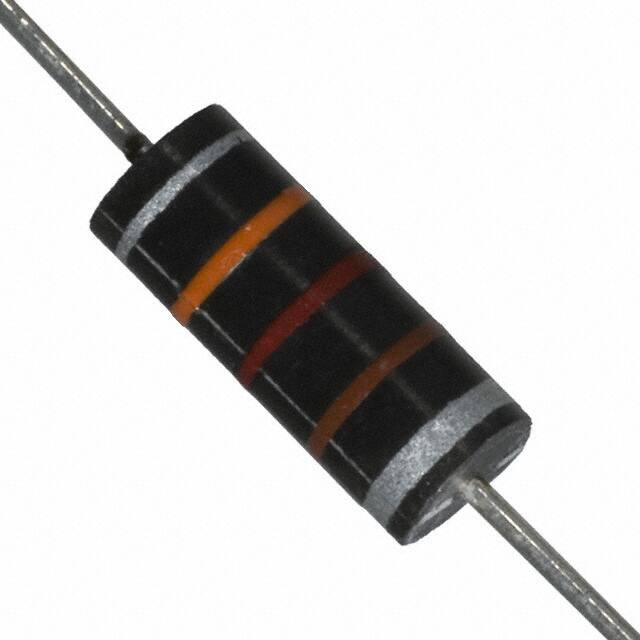

9250A-126-RCFIXED IND 12MH 23MA 143 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 23 mA | 13mA | - | Shielded | 143Ohm Max | 12 mH | 30 @ 79kHz | 330kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 79 kHz | - |
|
9250A-226-RCFIXED IND 22MH 17MA 274 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 17 mA | 9mA | - | Shielded | 274Ohm Max | 22 mH | 27 @ 79kHz | 250kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 79 kHz | - |
|
9250A-276-RCFIXED IND 27MH 16MA 308 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 16 mA | 8mA | - | Shielded | 308Ohm Max | 27 mH | 27 @ 79kHz | 210kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 79 kHz | - |
|
9250A-336-RCFIXED IND 33MH 15MA 343 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 15 mA | 7.5mA | - | Shielded | 343Ohm Max | 33 mH | 27 @ 79kHz | 190kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 79 kHz | - |
|
9250A-476-RCFIXED IND 47MH 13MA 473 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 13 mA | 5.5mA | - | Shielded | 473Ohm Max | 47 mH | 23 @ 79kHz | 160kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 79 kHz | - |
