固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

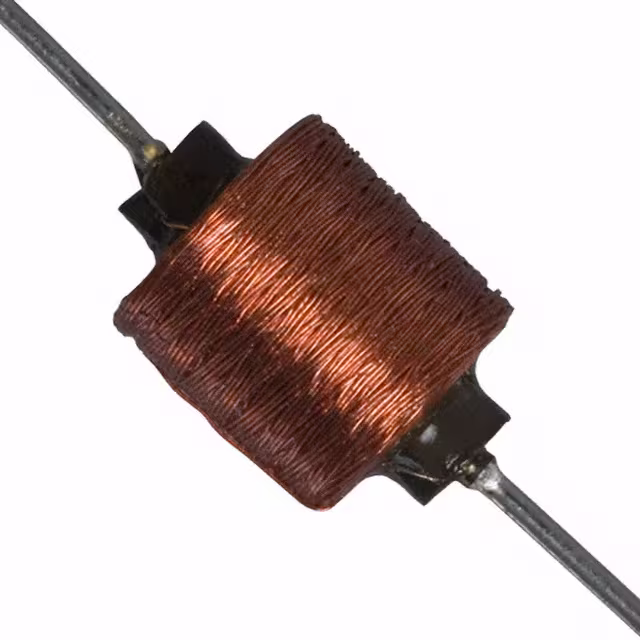

70F683AI-RCFIXED IND 6.8MH 43MA 78 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 43 mA | - | - | Unshielded | 78Ohm Max | 6.8 mH | 51 @ 250kHz | 640kHz | Through Hole | - | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | - | -55°C ~ 105°C | 250 kHz | - |
|

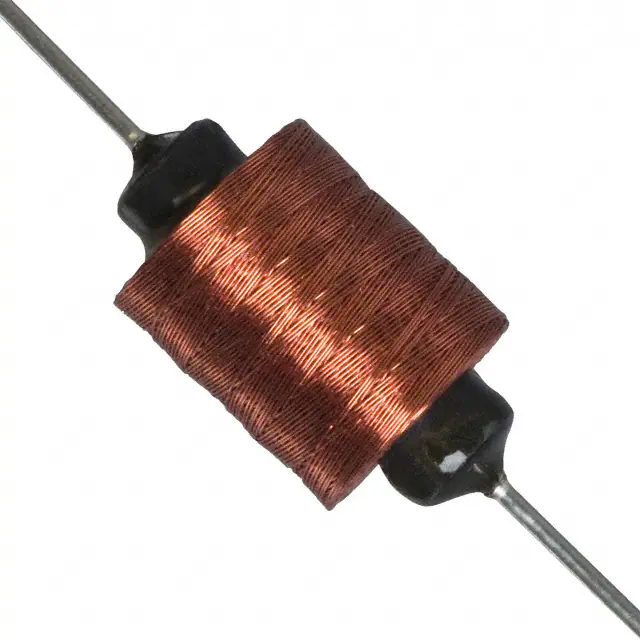

70F682AF-RCFIXED IND 68MH 34MA 215 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 34 mA | - | - | Unshielded | 215Ohm Max | 68 mH | 57 @ 79kHz | 180kHz | Through Hole | - | 0.410" Dia x 0.630" L (10.41mm x 16.00mm) | - | -55°C ~ 105°C | 79 kHz | - |
|

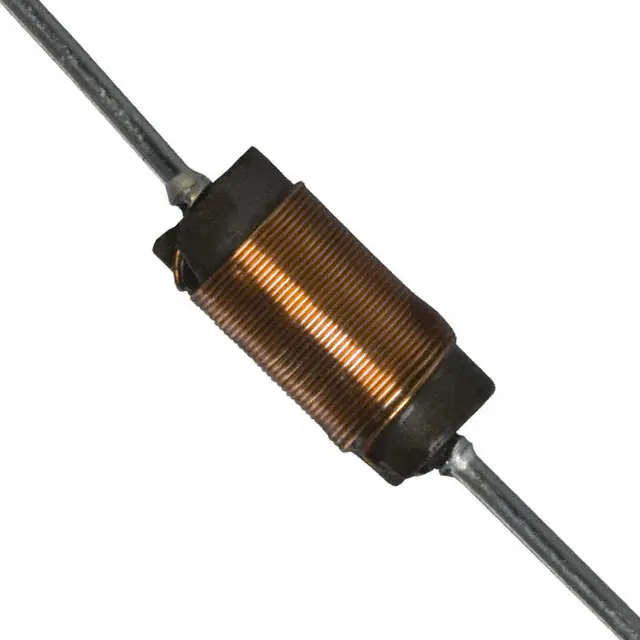

70F686AI-RCFIXED IND 6.8UH 566MA 624MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 566 mA | - | - | Unshielded | 624mOhm Max | 6.8 µH | 40 @ 7.9MHz | 49MHz | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
PM3308-100M-RCFIXED IND 10UH 2A 110 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 2.4A | - | Unshielded | 110mOhm Max | 10 µH | - | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM3308-220M-RCFIXED IND 22UH 1.3A 230 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.6A | - | Unshielded | 230mOhm Max | 22 µH | - | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM3308-330M-RCFIXED IND 33UH 1.1A 300 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.4A | - | Unshielded | 300mOhm Max | 33 µH | - | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM3308-470M-RCFIXED IND 47UH 800MA 390MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 1A | - | Unshielded | 390mOhm Max | 47 µH | - | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM3308-680M-RCFIXED IND 68UH 700MA 700MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 900mA | - | Unshielded | 700mOhm Max | 68 µH | - | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM3308-331M-RCFIXED IND 330UH 300MA 2.7OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 400mA | - | Unshielded | 2.7Ohm Max | 330 µH | - | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM3308-471M-RCFIXED IND 470UH 200MA 4 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM3308 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 200 mA | 300mA | - | Unshielded | 4Ohm Max | 470 µH | - | - | Surface Mount | - | 0.512" L x 0.374" W (13.00mm x 9.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
