固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

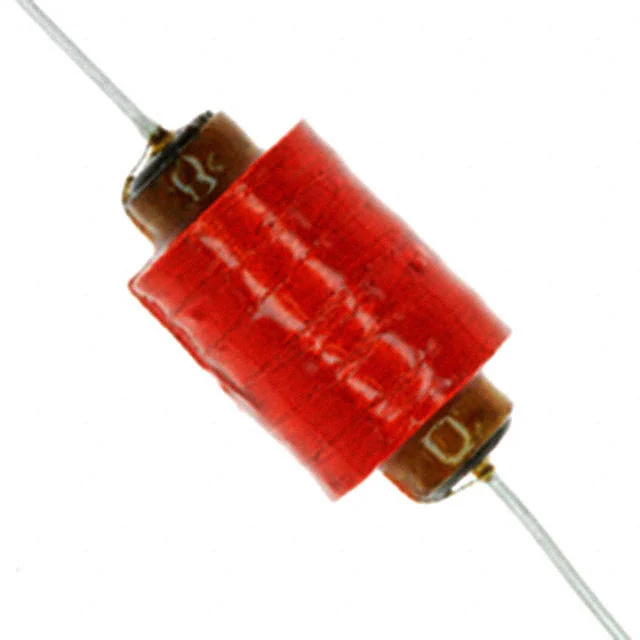

70F221AF-RCFIXED IND 220MH 39MA 424 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 39 mA | - | - | Unshielded | 424Ohm Max | 220 mH | 51 @ 25kHz | 70kHz | Through Hole | - | 0.540" Dia x 0.880" L (13.72mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|

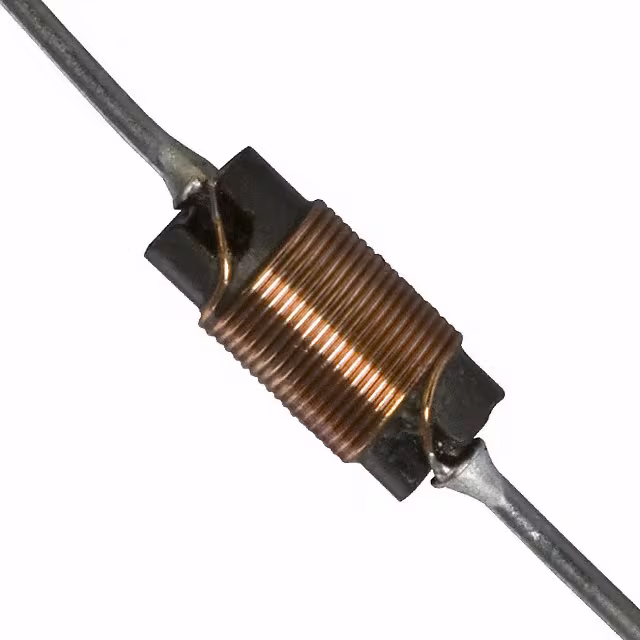

70F226AI-RCFIXED IND 2.2UH 1.132A 156MOHM Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 1.132 A | - | - | Unshielded | 156mOhm Max | 2.2 µH | 43 @ 7.9MHz | 87MHz | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|

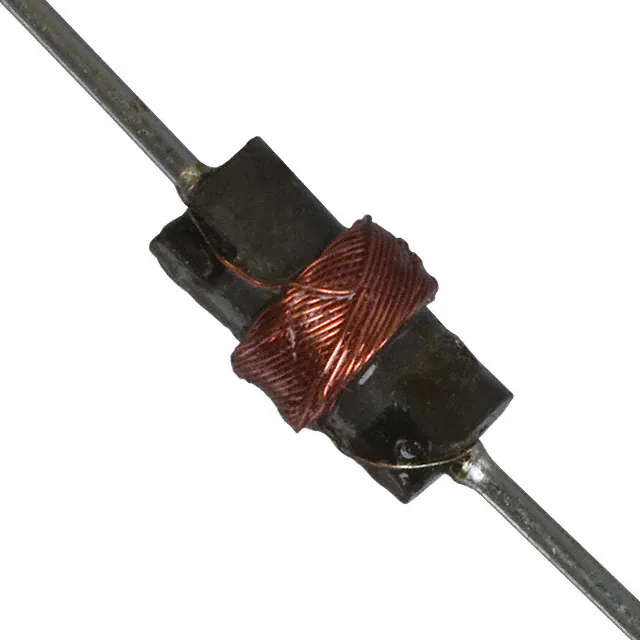

70F335AI-RCFIXED IND 33UH 208MA 2.76 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 208 mA | - | - | Unshielded | 2.76Ohm Max | 33 µH | 50 @ 2.5MHz | 10MHz | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|

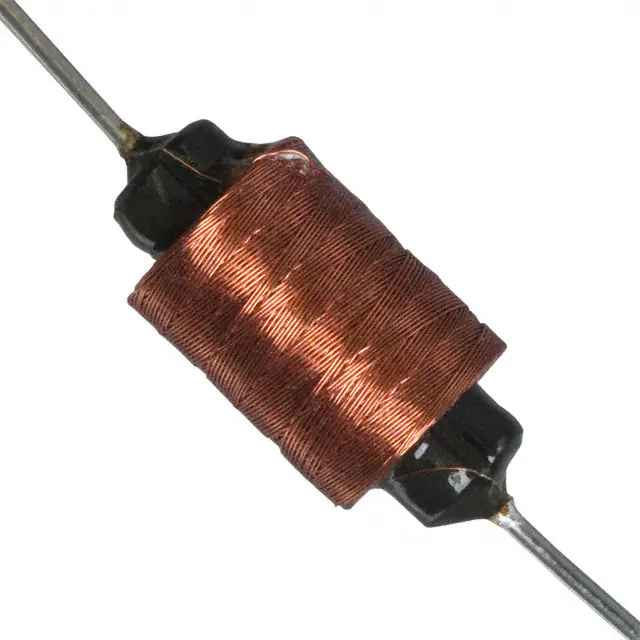

70F332AF-RCFIXED IND 33MH 43MA 134 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 43 mA | - | - | Unshielded | 134Ohm Max | 33 mH | 61 @ 79kHz | 232kHz | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - | -55°C ~ 105°C | 79 kHz | - |
|

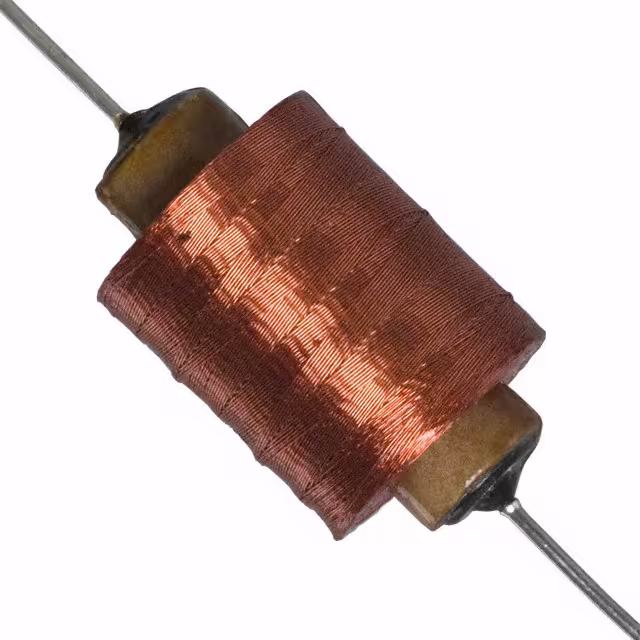

70F331AF-RCFIXED IND 330MH 34MA 540 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 34 mA | - | - | Unshielded | 540Ohm Max | 330 mH | 54 @ 25kHz | 60kHz | Through Hole | - | 0.580" Dia x 0.880" L (14.73mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|
70F336AI-RCFIXED IND 3.3UH 912MA 240MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 912 mA | - | - | Unshielded | 240mOhm Max | 3.3 µH | 40 @ 7.9MHz | 66MHz | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|

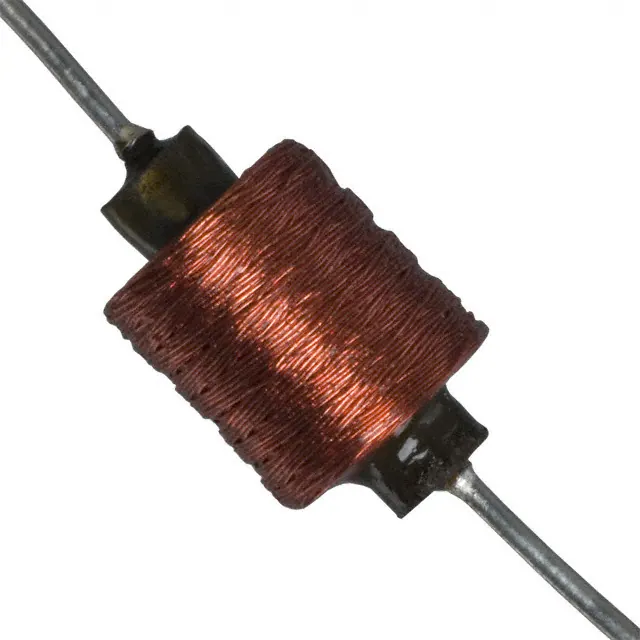

70F473AI-RCFIXED IND 4.7MH 48MA 64.8 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 48 mA | - | - | Unshielded | 64.8Ohm Max | 4.7 mH | 49 @ 250kHz | 680kHz | Through Hole | - | 0.280" Dia x 0.380" L (7.11mm x 9.65mm) | - | -55°C ~ 105°C | 250 kHz | - |
|

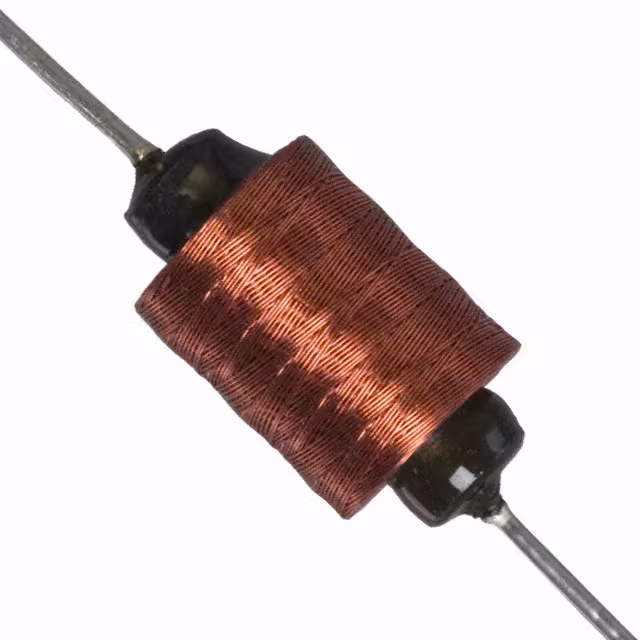

70F472AF-RCFIXED IND 47MH 38MA 168 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 38 mA | - | - | Unshielded | 168Ohm Max | 47 mH | 57 @ 79kHz | 206kHz | Through Hole | - | 0.380" Dia x 0.630" L (9.65mm x 16.00mm) | - | -55°C ~ 105°C | 79 kHz | - |
|

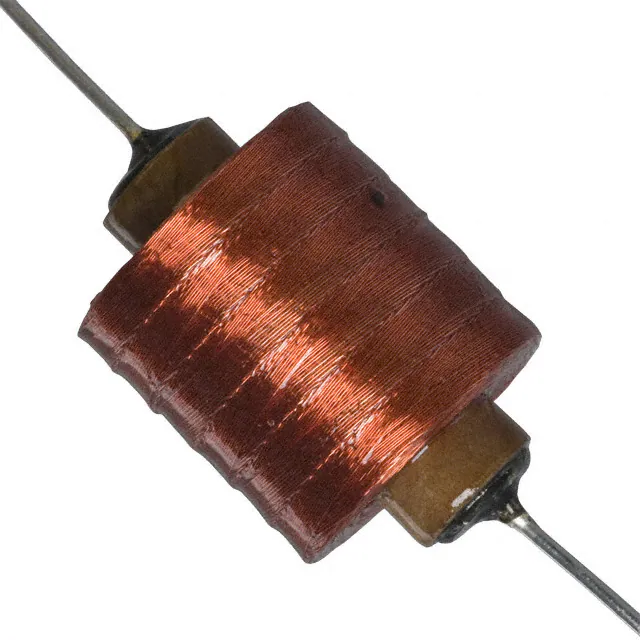

70F471AF-RCFIXED IND 470MH 30MA 704 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | - | Unshielded | 704Ohm Max | 470 mH | 55 @ 25kHz | 54kHz | Through Hole | - | 0.610" Dia x 0.880" L (15.49mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|
70F476AI-RCFIXED IND 4.7UH 661MA 457MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 661 mA | - | - | Unshielded | 457mOhm Max | 4.7 µH | 43 @ 7.9MHz | 53MHz | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
