固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM125S-561MFIXED IND 560UH 440MA 1.34OHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 440 mA | 740mA | - | Shielded | 1.34Ohm Max | 560 µH | - | 3MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.213" (5.40mm) |
|
|
PM125S-680MFIXED IND 68UH 1.26A 170MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.26 A | 2.08A | - | Shielded | 170mOhm Max | 68 µH | - | 9MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.213" (5.40mm) |
|
|
PM125S-681MFIXED IND 680UH 400MA 1.78OHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 740mA | - | Shielded | 1.78Ohm Max | 680 µH | - | 3MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.213" (5.40mm) |
|
|
PM125S-821MFIXED IND 820UH 360MA 2 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 360 mA | 260mA | - | Shielded | 2Ohm Max | 820 µH | - | 2MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.213" (5.40mm) |
|

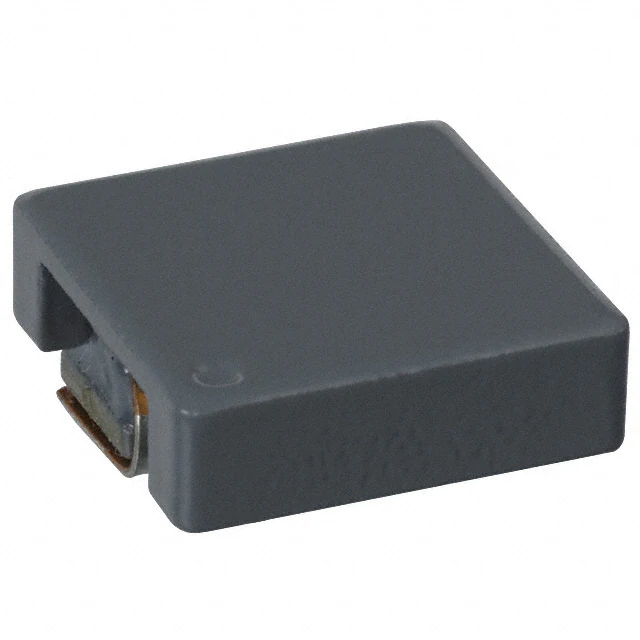

PM12639S-R67MFIXED IND 670NH 23A 1.4 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM12639S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 23 A | - | - | Shielded | 1.4mOhm Max | 670 nH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.146" (3.70mm) |
|
PM1608-102MFIXED IND 1MH 70MA 13.8 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 70 mA | 100mA | - | Unshielded | 13.8Ohm Max | 1 mH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
|
PM1608-150MFIXED IND 15UH 1.2A 230 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 900mA | - | Unshielded | 230mOhm Max | 15 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
|
PM1608-151MFIXED IND 150UH 250MA 2 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 250 mA | 270mA | - | Unshielded | 2Ohm Max | 150 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
|
PM1608-1R0MFIXED IND 1UH 2.9A 50 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.9 A | 2.9A | - | Unshielded | 50mOhm Max | 1 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
|
PM1608-1R5MFIXED IND 1.5UH 2.8A 50 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | 2.6A | - | Unshielded | 50mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
