固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9230-66FIXED IND 82UH 130MA 7.3 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 130 mA | - | - | Unshielded | 7.3Ohm Max | 82 µH | 50 @ 2.5MHz | 14MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|
|
9230-70FIXED IND 120UH 97MA 13 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 97 mA | - | - | Unshielded | 13Ohm Max | 120 µH | 30 @ 790kHz | 12MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
|
9230-72FIXED IND 150UH 85MA 15 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 85 mA | - | - | Unshielded | 15Ohm Max | 150 µH | 30 @ 790kHz | 11MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
|
9230-74FIXED IND 180UH 79MA 17 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 79 mA | - | - | Unshielded | 17Ohm Max | 180 µH | 30 @ 790kHz | 10MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
|
9230-78FIXED IND 270UH 65MA 25 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 65 mA | - | - | Unshielded | 25Ohm Max | 270 µH | 30 @ 790kHz | 8MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
|
9230-86FIXED IND 560UH 48MA 46 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 48 mA | - | - | Unshielded | 46Ohm Max | 560 µH | 30 @ 790kHz | 5MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
|
9230-90FIXED IND 820UH 40MA 65 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 40 mA | - | - | Unshielded | 65Ohm Max | 820 µH | 30 @ 790kHz | 3.8MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
|
9230-96FIXED IND 120NH 1.1A 80 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | ±10% | 1.1 A | - | - | Unshielded | 80mOhm Max | 120 nH | 40 @ 25MHz | 650MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|

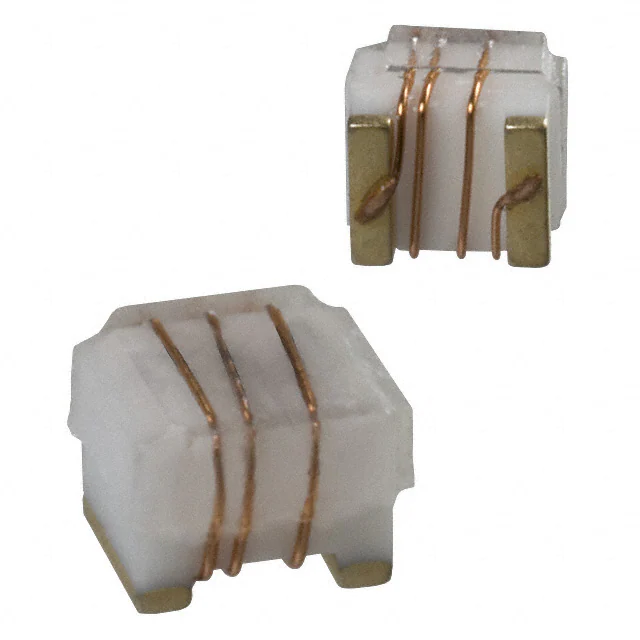

PM1008-8R2KFIXED IND 8.2UH 150MA 9.5OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 150 mA | - | 1008 (2520 Metric) | Unshielded | 9.5Ohm | 8.2 µH | 20 @ 25MHz | 35MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.071" (1.80mm) |
|
PM125S-120MFIXED IND 12UH 2.5A 50 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 5.31A | - | Shielded | 50mOhm Max | 12 µH | - | 21MHz | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.213" (5.40mm) |
