固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR0906-682YLFIXED IND 6.8MH 90MA 24 OHM SMD Bourns Inc. |
1,155 | - |
|
数据表 |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 90 mA | 100mA | - | Shielded | 24Ohm Max | 6.8 mH | 100 @ 252kHz | 900kHz | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
SRR1050HA-220YIND 22UH 30% 2.9A SHLD Bourns Inc. |
615 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.9 A | 2.95A | - | Shielded | 62mOhm Max | 22 µH | - | 10.5MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|
SRR1260A-560MFIXED IND 56UH 2.3A 100 MOHM SMD Bourns Inc. |
2,324 | - |
|
数据表 |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.3 A | 2.2A | - | Shielded | 100mOhm Max | 56 µH | 24 @ 2.52MHz | 7.92MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|
SRP7028A-R75MFIXED IND 750NH 14.5A 6.6MOHM SM Bourns Inc. |
1,942 | - |
|
数据表 |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 14.5 A | 24.5A | - | Shielded | 6.6mOhm Max | 750 nH | 15 @ 100kHz | 65MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -40°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRR1260A-1R2YFIXED IND 1.2UH 9.2A 8 MOHM SMD Bourns Inc. |
1,899 | - |
|
数据表 |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 9.2 A | 9.8A | - | Shielded | 8mOhm Max | 1.2 µH | 18 @ 7.96MHz | 91.1MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
SRR1260A-270MFIXED IND 27UH 3.6A 45 MOHM SMD Bourns Inc. |
1,800 | - |
|
数据表 |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.6 A | 3.3A | - | Shielded | 45mOhm Max | 27 µH | 26 @ 2.52MHz | 12.7MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|
|
SRR1260A-561KFIXED IND 560UH 880MA 1 OHM SMD Bourns Inc. |
1,750 | - |
|
数据表 |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 880 mA | 800mA | - | Shielded | 1Ohm Max | 560 µH | 22 @ 796kHz | 2.4MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
-,95.jpg)
|

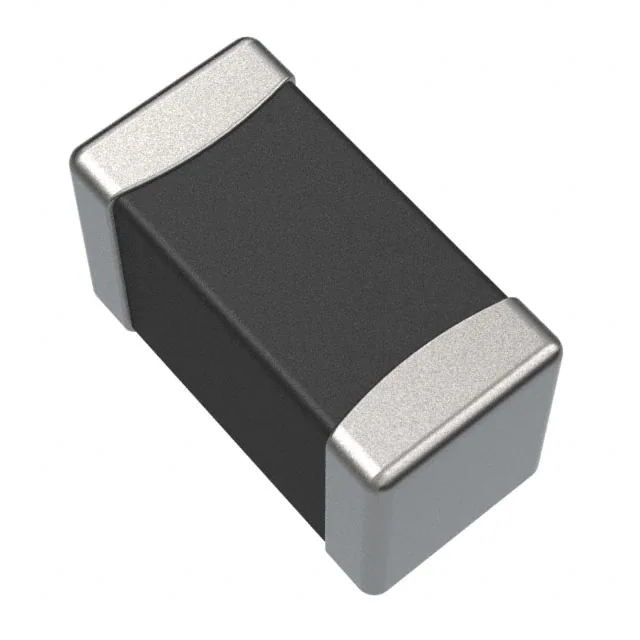

CVH160808-1R0MFIXED IND 1UH 950MA 250MOHM SMD Bourns Inc. |
9,130 | - |
|
数据表 |
CVH160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 950 mA | - | 0603 | Shielded | 250mOhm Max | 1 µH | - | 60MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 1 MHz | 0.037" (0.95mm) |
|
|
SRR1260A-121KFIXED IND 120UH 1.65A 210MOHM SM Bourns Inc. |
201 | - |
|
数据表 |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.65 A | 1.65A | - | Shielded | 210mOhm Max | 120 µH | 26 @ 796kHz | 5.5MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|
SRP5015TA-5R6MFIXED IND 5.6UH 2.4A 152MOHM SMD Bourns Inc. |
3,439 | - |
|
数据表 |
SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 2.4 A | 3.2A | - | Shielded | 152mOhm Max | 5.6 µH | 10 @ 100kHz | 27MHz | Surface Mount | AEC-Q200 | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.059" (1.50mm) |
