固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1050HA-R68YIND 0.68UH 30% 9.5A SHLD Bourns Inc. |
486 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 9.5 A | 13.5A | - | Shielded | 5.5mOhm Max | 0.68 µH | - | 110MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRR1050HA-181YIND 180UH 30% 1A SHLD Bourns Inc. |
426 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 1.04A | - | Shielded | 420mOhm Max | 180 µH | - | 3.4MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|
|
SRR1050HA-151YIND 150UH 30% 1.1A SHLD Bourns Inc. |
104 | - |
|
数据表 |
SRR1050HA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.1 A | 1.12A | - | Shielded | 370mOhm Max | 150 µH | - | 3.6MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.201" (5.10mm) |
|

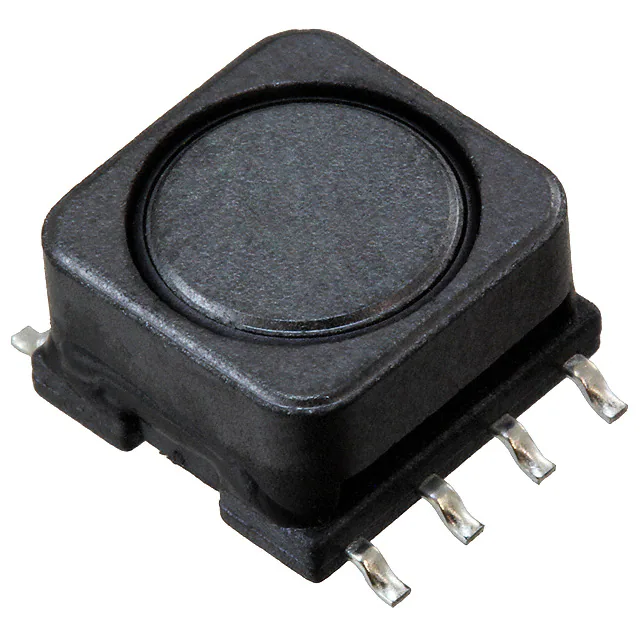

SRR0906-822YLFIXED IND 8.2MH 80MA 31 OHM SMD Bourns Inc. |
780 | - |
|
数据表 |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 80 mA | 90mA | - | Shielded | 31Ohm Max | 8.2 mH | 100 @ 252kHz | 800kHz | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
SRR1210-5R6YFIXED IND 5.6UH 8A 14 MOHM SMD Bourns Inc. |
758 | - |
|
数据表 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 8 A | 8.5A | - | Shielded | 14mOhm Max | 5.6 µH | 12 @ 7.96MHz | 28MHz | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
SRP7030-R15MFIXED IND 150NH 26A 0.0025OHM SM Bourns Inc. |
750 | - |
|
数据表 |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | ±20% | 26 A | 38A | - | Shielded | 2.5mOhm Max | 150 nH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
|
SRR1210-271MFIXED IND 270UH 1.5A 410MOHM SMD Bourns Inc. |
611 | - |
|
数据表 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.3A | - | Shielded | 410mOhm Max | 270 µH | 16 @ 796kHz | 1.8MHz | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
|
SRR1210-561MFIXED IND 560UH 1.1A 900MOHM SMD Bourns Inc. |
550 | - |
|
数据表 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 950mA | - | Shielded | 900mOhm Max | 560 µH | 12 @ 796kHz | 850kHz | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
|
SRR1210-4R7YFIXED IND 4.7UH 8.5A 12 MOHM SMD Bourns Inc. |
506 | - |
|
数据表 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 8.5 A | 9.6A | - | Shielded | 12mOhm Max | 4.7 µH | 8 @ 7.96MHz | 35MHz | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
|
SRP7030-R72MFIXED IND 720NH 15.5A 0.0055OHM Bourns Inc. |
161 | - |
|
数据表 |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | ±20% | 15.5 A | 23A | - | Shielded | 5.5mOhm Max | 720 nH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
