固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM40-R33MFIXED IND 330NH 450MA 400MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | ±20% | 450 mA | - | 1812 | Unshielded | 400mOhm Max | 330 nH | 30 @ 25.2MHz | 300MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 25.2 MHz | 0.126" (3.20mm) |
|
|
PM40-R47MFIXED IND 470NH 450MA 500MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | ±20% | 450 mA | - | 1812 | Unshielded | 500mOhm Max | 470 nH | 30 @ 25.2MHz | 320MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 25.2 MHz | 0.126" (3.20mm) |
|

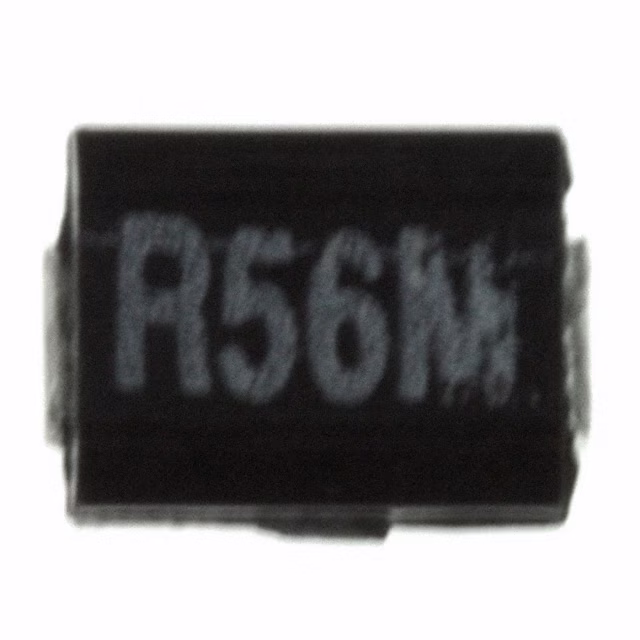

PM40-R56MFIXED IND 560NH 450MA 550MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | ±20% | 450 mA | - | 1812 | Unshielded | 550mOhm Max | 560 nH | 30 @ 25.2MHz | 180MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 25.2 MHz | 0.126" (3.20mm) |
|
PM40-R68MFIXED IND 680NH 450MA 600MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | ±20% | 450 mA | - | 1812 | Unshielded | 600mOhm Max | 680 nH | 30 @ 25.2MHz | 160MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 25.2 MHz | 0.126" (3.20mm) |
|
|
PM40-1R0KFIXED IND 1UH 450MA 500 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | ±10% | 450 mA | - | 1812 | Unshielded | 500mOhm Max | 1 µH | 50 @ 7.96MHz | 100MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.126" (3.20mm) |
|
|
PM40-1R2KFIXED IND 1.2UH 430MA 550MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | ±10% | 430 mA | - | 1812 | Unshielded | 550mOhm Max | 1.2 µH | 50 @ 7.96MHz | 80MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.126" (3.20mm) |
|
|
PM40-1R5KFIXED IND 1.5UH 410MA 600MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | ±10% | 410 mA | - | 1812 | Unshielded | 600mOhm Max | 1.5 µH | 50 @ 7.96MHz | 70MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.126" (3.20mm) |
|
|
PM40-2R2KFIXED IND 2.2UH 380MA 700MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | ±10% | 380 mA | - | 1812 | Unshielded | 700mOhm Max | 2.2 µH | 50 @ 7.96MHz | 55MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.126" (3.20mm) |
|
|
PM40-2R7KFIXED IND 2.7UH 370MA 750MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Iron Powder | ±10% | 370 mA | - | 1812 | Unshielded | 750mOhm Max | 2.7 µH | 50 @ 7.96MHz | 50MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.126" (3.20mm) |
|
6727FIXED IND 35UH 2.5A 35 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 2.5 A | - | - | Shielded | 35mOhm Max | 35 µH | - | - | Through Hole | - | 0.700" L x 0.425" W (17.78mm x 10.80mm) | - | -55°C ~ 105°C | 1 kHz | 1.000" (25.40mm) |
