固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM638S-680-RCFIXED IND 68UH 750MA 234MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM638S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 750 mA | 870mA | - | Shielded | 234mOhm Max | 68 µH | 7.4 @ 2.52MHz | 7.5MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
PM638S-6R2-RCFIXED IND 6.2UH 2.5A 27 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM638S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.5 A | 2.6A | - | Shielded | 27mOhm Max | 6.2 µH | 9 @ 7.96MHz | 42.3MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
PM638S-7R4-RCFIXED IND 7.4UH 2.3A 31 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM638S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.3 A | 2.55A | - | Shielded | 31mOhm Max | 7.4 µH | 7.5 @ 7.96MHz | 32.9MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
PM638S-820-RCFIXED IND 82UH 700MA 324MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM638S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 700 mA | 750mA | - | Shielded | 324mOhm Max | 82 µH | 7.6 @ 2.52MHz | 7.6MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
PM638S-8R7-RCFIXED IND 8.7UH 2.2A 34 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM638S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.2 A | 2.35A | - | Shielded | 34mOhm Max | 8.7 µH | 7.3 @ 7.96MHz | 27.5MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP5030TA-R10YFIXED IND 100NH 23A 3 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±30% | 23 A | 27A | - | Shielded | 3mOhm Max | 100 nH | 5 @ 100kHz | 320MHz | Surface Mount | AEC-Q200 | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -40°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRP5030TA-R22MFIXED IND 220NH 15.5A 4.4MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 15.5 A | 21A | - | Shielded | 4.4mOhm Max | 220 nH | 5 @ 100kHz | 155MHz | Surface Mount | AEC-Q200 | 0.224" L x 0.205" W (5.70mm x 5.20mm) | - | -40°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM40-R10MFIXED IND 100NH 450MA 440MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | ±20% | 450 mA | - | 1812 | Unshielded | 440mOhm Max | 100 nH | 28 @ 25.2MHz | 700MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 25.2 MHz | 0.126" (3.20mm) |
|
|
PM40-R22MFIXED IND 220NH 450MA 320MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | ±20% | 450 mA | - | 1812 | Unshielded | 320mOhm Max | 220 nH | 30 @ 25.2MHz | 350MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 25.2 MHz | 0.126" (3.20mm) |
|

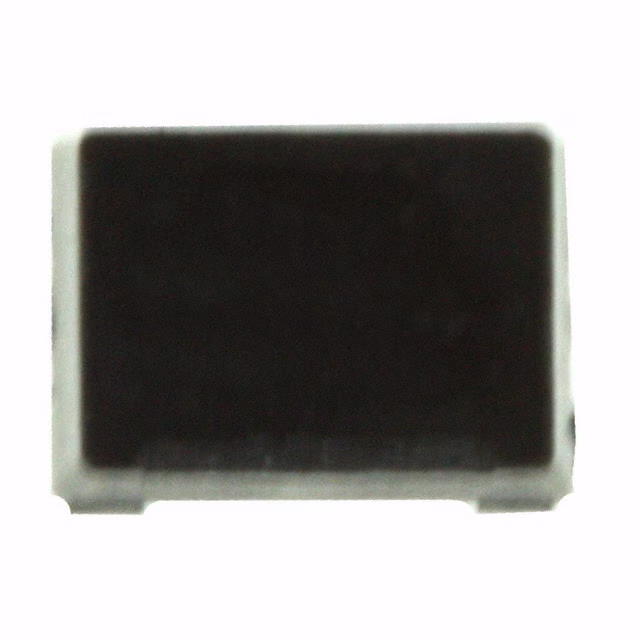

PM40-R27MFIXED IND 270NH 450MA 360MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM40 | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Molded | Non-Magnetic | ±20% | 450 mA | - | 1812 | Unshielded | 360mOhm Max | 270 nH | 30 @ 25.2MHz | 320MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 25.2 MHz | 0.126" (3.20mm) |
