固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1265CC-R22MIND SMD 0.22UH 55A Bourns Inc. |
0 | - |
|
数据表 |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | ±20% | 55 A | 105A | - | Shielded | 0.6mOhm Max | 220 nH | - | 130MHz | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
PM127SH-1R2N-RCFIXED IND 1.2UH 9.8A 18 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | -20%, +40% | 9.8 A | 9.8A | - | Shielded | 18mOhm Max | 1.2 µH | 28 @ 7.96MHz | 83MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
PM127SH-390M-RCFIXED IND 39UH 3.2A 70 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.2 A | 3.1A | - | Shielded | 70mOhm Max | 39 µH | 24 @ 2.52MHz | 8.5MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
PM127SH-3R5N-RCFIXED IND 3.5UH 8.8A 12 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | -20%, +40% | 8.8 A | 9.8A | - | Shielded | 12mOhm Max | 3.5 µH | 20 @ 7.96MHz | 36MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
PM127SH-7R6N-RCFIXED IND 7.6UH 5.9A 20 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | -20%, +40% | 5.9 A | 6.5A | - | Shielded | 20mOhm Max | 7.6 µH | 15 @ 7.96MHz | 21MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
2218-VFIXED IND 330UH 3.3A 100 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
2200 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 3.3 A | - | - | Shielded | 100mOhm Max | 330 µH | - | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
2220-VFIXED IND 470UH 2.3A 190 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
2200 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 2.3 A | - | - | Shielded | 190mOhm Max | 470 µH | - | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
2224-VFIXED IND 1MH 1.9A 280 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
2200 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 1.9 A | - | - | Shielded | 280mOhm Max | 1 mH | - | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - | -55°C ~ 105°C | 1 kHz | - |
|

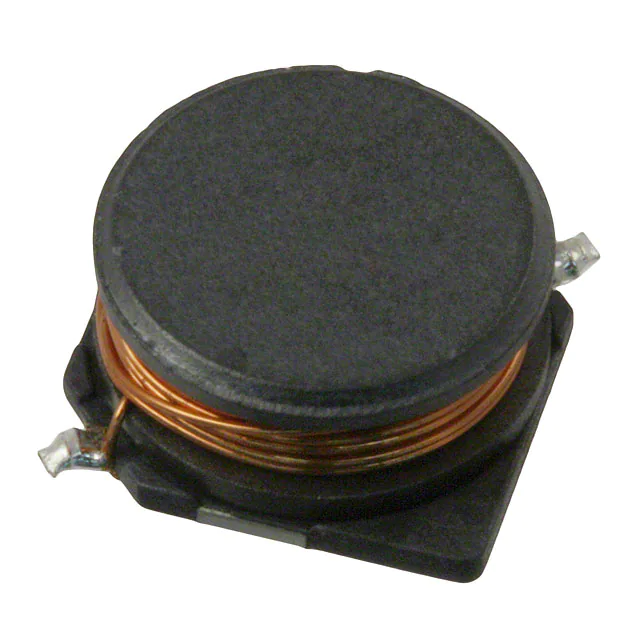

SDR1045-330MFIXED IND 33UH 1.9A 220 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR1045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 2.1A | - | Unshielded | 220mOhm Max | 33 µH | 20 @ 2.52MHz | 15.8MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
SDE1006A-1R5MFIXED IND 1.5UH 7.2A 18 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7.2 A | 8A | - | Unshielded | 18mOhm Max | 1.5 µH | - | 69.6MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.228" (5.80mm) |
