固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM528S-330-RCFIXED IND 33UH 900MA 190MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM528S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 900 mA | 780mA | - | Shielded | 190mOhm Max | 33 µH | 11 @ 2.52MHz | 13MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM528S-390-RCFIXED IND 39UH 860MA 210MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM528S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 860 mA | 720mA | - | Shielded | 210mOhm Max | 39 µH | 8 @ 2.52MHz | 13MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM528S-3R0-RCFIXED IND 3UH 2.8A 30 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM528S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.8 A | 2.5A | - | Shielded | 30mOhm Max | 3 µH | 7 @ 7.96MHz | 65MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRP1265CC-R68MIND SMD 0.68UH 41A Bourns Inc. |
0 | - |
|
数据表 |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | ±20% | 41 A | 58A | - | Shielded | 1.5mOhm Max | 680 nH | - | 50MHz | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
SRR0805-681KFIXED IND 680UH 170MA 3.4OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 170 mA | 320mA | - | Shielded | 3.4Ohm Max | 680 µH | 32 @ 796kHz | 2.8MHz | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.185" (4.70mm) |
|

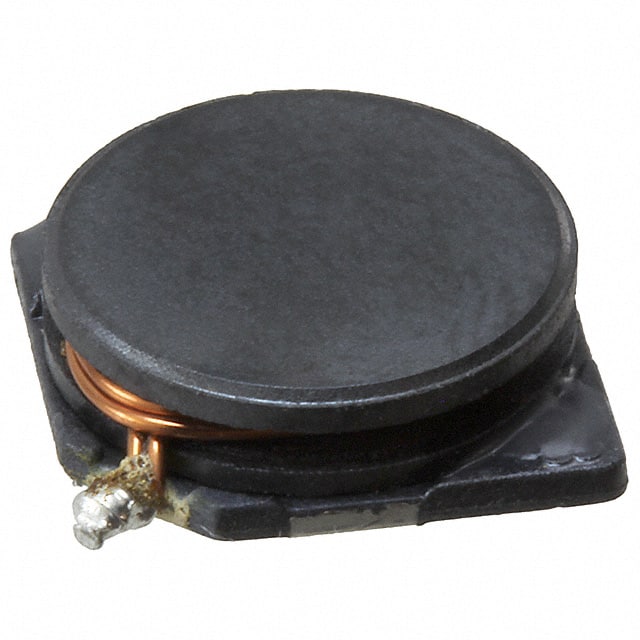

SDR1030-2R7MFIXED IND 2.7UH 3A 28 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 4.2A | - | Unshielded | 28mOhm Max | 2.7 µH | 13 @ 7.96MHz | 73.6MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.130" (3.30mm) |
|
|
PM528S-560-RCFIXED IND 56UH 720MA 300MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM528S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 720 mA | 600mA | - | Shielded | 300mOhm Max | 56 µH | 9 @ 2.52MHz | 12MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM528S-680-RCFIXED IND 68UH 620MA 350MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM528S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 620 mA | 560mA | - | Shielded | 350mOhm Max | 68 µH | 8 @ 2.52MHz | 11MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM528S-820-RCFIXED IND 82UH 520MA 430MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM528S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 520 mA | 500mA | - | Shielded | 430mOhm Max | 82 µH | 8 @ 2.52MHz | 9MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM528S-8R2-RCFIXED IND 8.2UH 2.1A 55 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM528S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.1 A | 1.6A | - | Shielded | 55mOhm Max | 8.2 µH | 7 @ 7.96MHz | 34MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
