固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

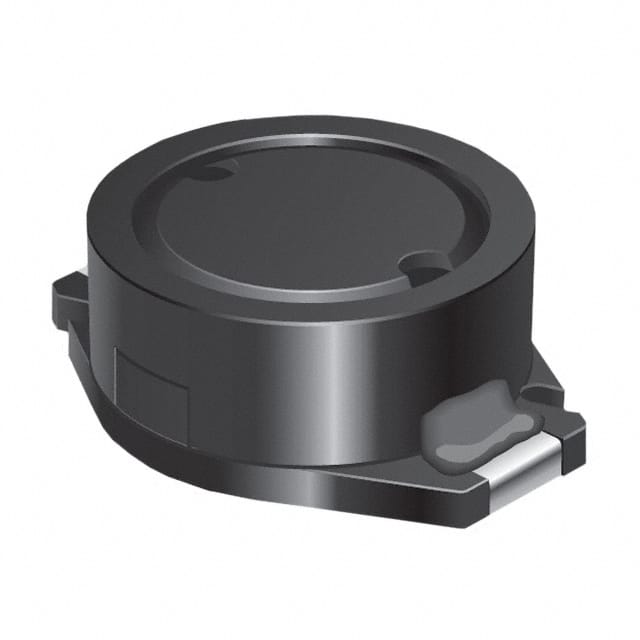

SRR1003-820MFIXED IND 82UH 420MA 1.2 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRR1003 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 420 mA | 1A | - | Shielded | 1.2Ohm Max | 82 µH | 20 @ 2.52MHz | 11MHz | Surface Mount | - | 0.500" L x 0.406" W (12.70mm x 10.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.118" (3.00mm) |
|
RLB0712-390KLFIXED IND 39UH 550MA 160 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 550 mA | - | - | Unshielded | 160mOhm Max | 39 µH | 20 @ 2.52MHz | 6MHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
|
|
RLB0712-391KLFIXED IND 390UH 180MA 1.2 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | - | - | Unshielded | 1.2Ohm Max | 390 µH | 20 @ 796kHz | 2MHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
|
|
RLB0712-470KLFIXED IND 47UH 450MA 180 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 450 mA | - | - | Unshielded | 180mOhm Max | 47 µH | 20 @ 2.52MHz | 6MHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
|
|
RLB0712-560KLFIXED IND 56UH 400MA 210 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 400 mA | - | - | Unshielded | 210mOhm Max | 56 µH | 20 @ 2.52MHz | 5MHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
|
|
RLB0712-561KLFIXED IND 560UH 150MA 1.8 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 150 mA | - | - | Unshielded | 1.8Ohm Max | 560 µH | 20 @ 796kHz | 2MHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
|
|
RLB0712-680KLFIXED IND 68UH 360MA 240 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 360 mA | - | - | Unshielded | 240mOhm Max | 68 µH | 20 @ 2.52MHz | 5MHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
|
SRP0315-1R5KFIXED IND 1.5UH 4.1A 48 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP0315 | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±10% | 4.1 A | 4.4A | - | Shielded | 48mOhm Max | 1.5 µH | 14 @ 7.96MHz | 46MHz | Surface Mount | - | 0.134" L x 0.122" W (3.40mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
RLB0712-180KLFIXED IND 18UH 750MA 100 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 750 mA | - | - | Unshielded | 100mOhm Max | 18 µH | 20 @ 2.52MHz | 10MHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
|
|
RLB0712-181KLFIXED IND 180UH 260MA 750MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 260 mA | - | - | Unshielded | 750mOhm Max | 180 µH | 20 @ 796kHz | 3MHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 1 kHz | 0.433" (11.00mm) |
