固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
79FR18MFIXED IND 180NH 600MA 240MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | - | - | Unshielded | 240mOhm Max | 180 nH | 35 @ 25MHz | 300MHz | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
79FR33MFIXED IND 330NH 370MA 480MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 370 mA | - | - | Unshielded | 480mOhm Max | 330 nH | 35 @ 25MHz | 150MHz | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - | -55°C ~ 105°C | 25 MHz | - |
|

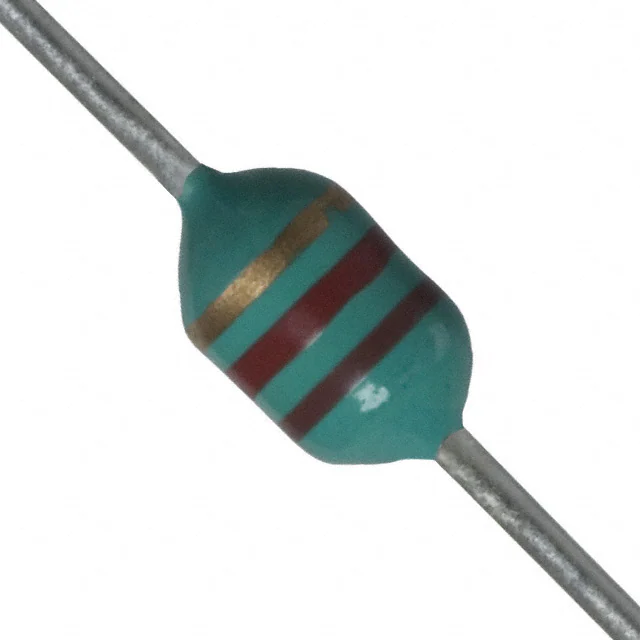

79F2R2KFIXED IND 2.2UH 230MA 1.2 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 230 mA | - | - | Unshielded | 1.2Ohm Max | 2.2 µH | 40 @ 7.9MHz | 45MHz | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
SDR0906-100KLFIXED IND 10UH 2.1A 90 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.1 A | 3.2A | - | Unshielded | 90mOhm Max | 10 µH | 35 @ 2.52MHz | 25MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
|
SDR0906-102KLFIXED IND 1MH 220MA 3.5 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 220 mA | 350mA | - | Unshielded | 3.5Ohm Max | 1 mH | 60 @ 252kHz | 2MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
|
SDR0906-103KLFIXED IND 10MH 40MA 33 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 40 mA | 100mA | - | Unshielded | 33Ohm Max | 10 mH | 100 @ 79.6kHz | 1MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
|
SDR0906-103KSCLFIXED IND 10MH 40MA 33 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 40 mA | 100mA | - | Unshielded | 33Ohm Max | 10 mH | 100 @ 79.6kHz | 1MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
|
SDR0906-121KLFIXED IND 120UH 850MA 430MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 850 mA | 1.1A | - | Unshielded | 430mOhm Max | 120 µH | 15 @ 796kHz | 8MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
78F561J-RCFIXED IND 560UH 85MA 15.5 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±5% | 85 mA | - | - | Unshielded | 15.5Ohm Max | 560 µH | 60 @ 790kHz | 2.35MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
78F821J-RCFIXED IND 820UH 65MA 27.5 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±5% | 65 mA | - | - | Unshielded | 27.5Ohm Max | 820 µH | 60 @ 790kHz | 1.5MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 790 kHz | - |
