固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

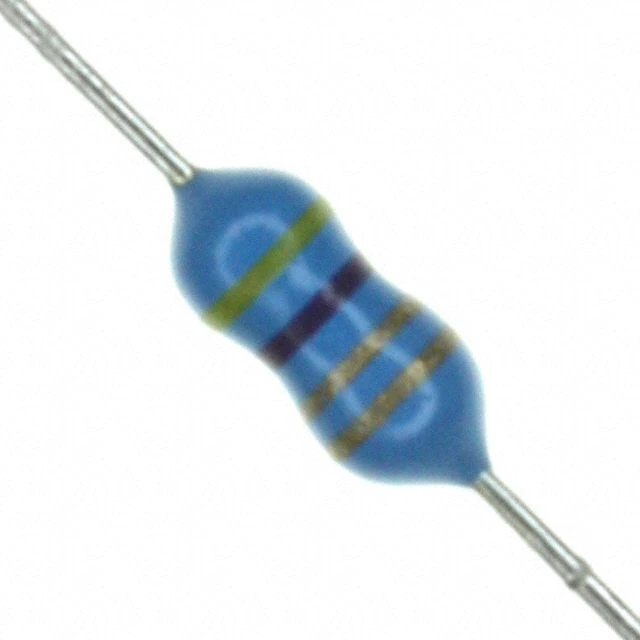

78F4R7JFIXED IND 4.7UH 230MA 350MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 230 mA | - | - | Unshielded | 350mOhm Max | 4.7 µH | 45 @ 7.9MHz | 50MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
78F5R6JFIXED IND 5.6UH 185MA 400MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 185 mA | - | - | Unshielded | 400mOhm Max | 5.6 µH | 45 @ 7.9MHz | 40MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
78F6R8JFIXED IND 6.8UH 175MA 450MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 175 mA | - | - | Unshielded | 450mOhm Max | 6.8 µH | 40 @ 7.9MHz | 30MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
78F8R2JFIXED IND 8.2UH 155MA 550MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 155 mA | - | - | Unshielded | 550mOhm Max | 8.2 µH | 40 @ 7.9MHz | 28MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
78F100JFIXED IND 10UH 130MA 720 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 130 mA | - | - | Unshielded | 720mOhm Max | 10 µH | 40 @ 7.9MHz | 22MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
78F150JFIXED IND 15UH 150MA 880 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 150 mA | - | - | Unshielded | 880mOhm Max | 15 µH | 50 @ 2.5MHz | 16MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
|
78F180JFIXED IND 18UH 145MA 1 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 145 mA | - | - | Unshielded | 1Ohm Max | 18 µH | 50 @ 2.5MHz | 15MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
78F220JFIXED IND 22UH 140MA 1.2 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 140 mA | - | - | Unshielded | 1.2Ohm Max | 22 µH | 50 @ 2.5MHz | 13MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
78F270JFIXED IND 27UH 135MA 1.35 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 135 mA | - | - | Unshielded | 1.35Ohm Max | 27 µH | 50 @ 2.5MHz | 11MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
|
78F390JFIXED IND 39UH 185MA 1.7 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
78F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 185 mA | - | - | Unshielded | 1.7Ohm Max | 39 µH | 50 @ 2.5MHz | 9.5MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
