固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP4020TA-100MFIXED IND 10UH 1.8A 243 MOHM SMD Bourns Inc. |
87,624 | - |
|
数据表 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 1.8 A | 2.3A | 2-SMD | Shielded | 243mOhm Max | 10 µH | 10 @ 100kHz | 19MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP4020TA-3R3MFIXED IND 3.3UH 3.5A 76 MOHM SMD Bourns Inc. |
15,927 | - |
|
数据表 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 3.5 A | 4A | 2-SMD | Shielded | 76mOhm Max | 3.3 µH | 10 @ 100kHz | 40MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
SRR1210-101MFIXED IND 100UH 2.5A 135MOHM SMD Bourns Inc. |
14,285 | - |
|
数据表 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 2.2A | - | Shielded | 135mOhm Max | 100 µH | 16 @ 796kHz | 3MHz | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
|
SRP4020TA-6R8MFIXED IND 6.8UH 2.1A 172MOHM SMD Bourns Inc. |
452 | - |
|
数据表 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 2.1 A | 2.8A | 2-SMD | Shielded | 172mOhm Max | 6.8 µH | 10 @ 100kHz | 24MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
SRP4012TA-4R7MFIXED IND 4.7UH 2A 145 MOHM SMD Bourns Inc. |
7,685 | - |
|
数据表 |
SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 2 A | 2.5A | 2-SMD | Shielded | 145mOhm Max | 4.7 µH | 10 @ 100kHz | 35MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.047" (1.20mm) |
|
|
SRP4020TA-2R2MFIXED IND 2.2UH 4A 61 MOHM SMD Bourns Inc. |
7,379 | - |
|
数据表 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 4 A | 6A | 2-SMD | Shielded | 61mOhm Max | 2.2 µH | 10 @ 100kHz | 45MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP4020TA-R56MFIXED IND 560NH 7.3A 16 MOHM SMD Bourns Inc. |
3,000 | - |
|
数据表 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 7.3 A | 10A | 2-SMD | Shielded | 16mOhm Max | 560 nH | 10 @ 100kHz | 105MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP4020TA-1R0MFIXED IND 1UH 5A 27 MOHM SMD Bourns Inc. |
2,743 | - |
|
数据表 |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 5 A | 8.5A | 2-SMD | Shielded | 27mOhm Max | 1 µH | 10 @ 100kHz | 65MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP4020TA-220MFIXED IND 22UH 1.2A 500 MOHM SMD Bourns Inc. |
1,623 | - |
|
数据表 |
SRP4020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 1.2 A | 1.4A | - | Shielded | 500mOhm Max | 22 µH | 10 @ 100kHz | 12MHz | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|

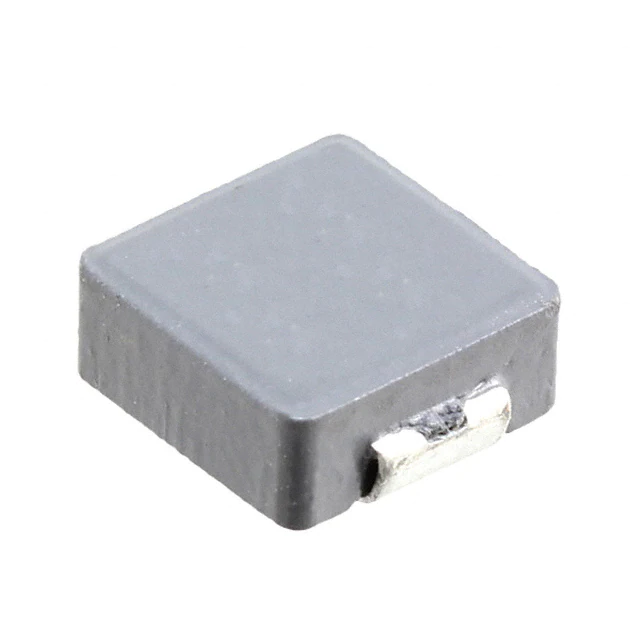

SRP7028A-3R3MFIXED IND 3.3UH 6A 30 MOHM SMD Bourns Inc. |
13,273 | - |
|
数据表 |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 6 A | 12A | - | Shielded | 30mOhm Max | 3.3 µH | 20 @ 100kHz | 25MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -40°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
