固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRU1048-150YFIXED IND 15UH 3.2A 29 MOHM SMD Bourns Inc. |
30,570 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.2 A | 2.7A | - | Shielded | 29mOhm | 15 µH | 30 @ 2.52MHz | 14MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
CM453232-1R2KLFIXED IND 1.2UH 430MA 550MOHM SM Bourns Inc. |
2,751 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 430 mA | - | 1812 | Unshielded | 550mOhm Max | 1.2 µH | 50 @ 7.96MHz | 80MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.134" (3.40mm) |
|

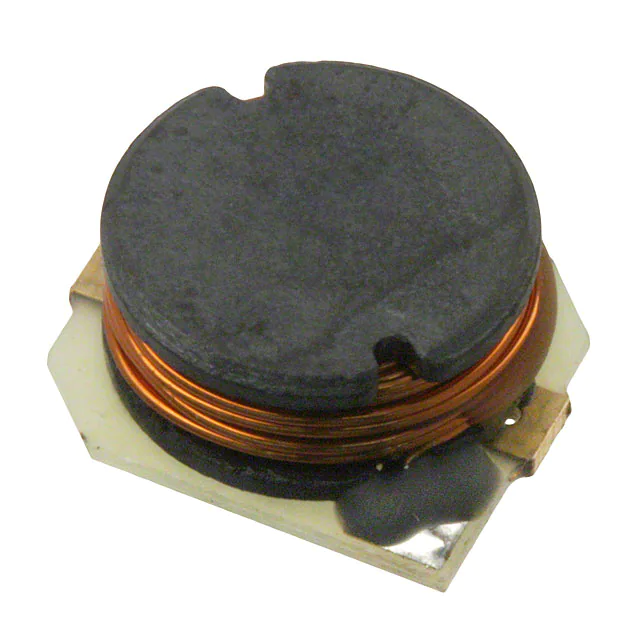

SDR1105-330KLFIXED IND 33UH 2.6A 100 MOHM SMD Bourns Inc. |
17,895 | - |
|
数据表 |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.6 A | 5A | - | Unshielded | 100mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.197" (5.00mm) |
|
|
SRU1048-4R7YFIXED IND 4.7UH 5.5A 9.5MOHM SMD Bourns Inc. |
6,048 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.5 A | 4.75A | - | Shielded | 9.5mOhm | 4.7 µH | 12 @ 7.96MHz | 30MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
CM453232-821KLFIXED IND 820UH 30MA 35 OHM SMD Bourns Inc. |
2,659 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 mA | - | 1812 | Unshielded | 35Ohm Max | 820 µH | 30 @ 796kHz | 2.5MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 796 kHz | 0.134" (3.40mm) |
|
|
SDR1105-220MLFIXED IND 22UH 3A 80 MOHM SMD Bourns Inc. |
3,752 | - |
|
数据表 |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 6.5A | - | Unshielded | 80mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.197" (5.00mm) |
|

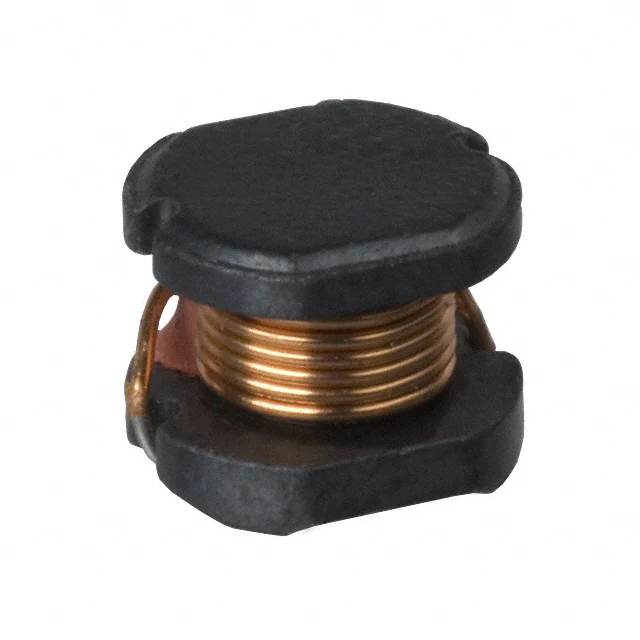

PM54-100M-RCFIXED IND 10UH 1.45A 100MOHM SMD Bourns Inc. |
36,580 | - |
|
数据表 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.45 A | 2A | - | Unshielded | 100mOhm | 10 µH | 30 @ 2.52MHz | 23MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.189" (4.80mm) |
|
|
CM453232-R82MLFIXED IND 820NH 475MA 450MOHM SM Bourns Inc. |
2,163 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 475 mA | - | 1812 | Unshielded | 450mOhm Max | 820 nH | 40 @ 25.2MHz | 130MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 25.2 MHz | 0.134" (3.40mm) |
|
|
SRU1048-101YFIXED IND 100UH 1.2A 160MOHM SMD Bourns Inc. |
10,546 | - |
|
数据表 |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.2 A | 1A | - | Shielded | 160mOhm | 100 µH | 26 @ 796kHz | 5MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
PM43-100M-RCFIXED IND 10UH 1.15A 180MOHM SMD Bourns Inc. |
1,448 | - |
|
数据表 |
PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.15 A | 1.7A | - | Unshielded | 180mOhm Max | 10 µH | 28 @ 2.52MHz | 33MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
