固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

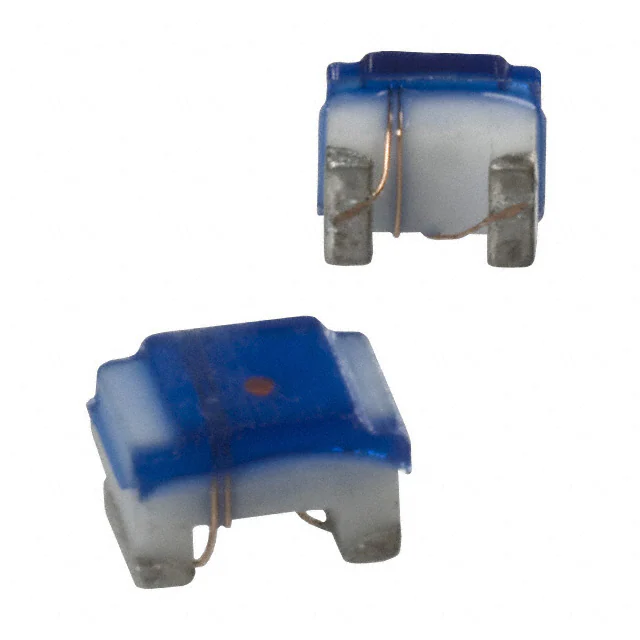

PM0805-68NK-RCFIXED IND 68NH 500MA 270MOHM SMD Bourns Inc. |
2,401 | - |
|
数据表 |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | ±10% | 500 mA | - | 0805 (2012 Metric) | Unshielded | 270mOhm | 68 nH | 60 @ 500MHz | 1.45GHz | Surface Mount | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | - | -40°C ~ 125°C | 200 MHz | 0.059" (1.50mm) |
|
PM1008-3R3K-RCFIXED IND 3.3UH 185MA 1.9OHM SMD Bourns Inc. |
1,890 | - |
|
数据表 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 185 mA | - | 1008 (2520 Metric) | Unshielded | 1.9Ohm | 3.3 µH | 22 @ 7.9MHz | 55MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.071" (1.80mm) |
|
|
PM0805-R12K-RCFIXED IND 120NH 400MA 480MOHM SM Bourns Inc. |
1,875 | - |
|
数据表 |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | ±10% | 400 mA | - | 0805 (2012 Metric) | Unshielded | 480mOhm | 120 nH | 50 @ 250MHz | 1.1GHz | Surface Mount | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | - | -40°C ~ 125°C | 150 MHz | 0.059" (1.50mm) |
|
|
PM0805-6N8M-RCFIXED IND 6.8NH 600MA 60MOHM SMD Bourns Inc. |
1,500 | - |
|
数据表 |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | ±20% | 600 mA | - | 0805 (2012 Metric) | Unshielded | 60mOhm | 6.8 nH | 60 @ 1GHz | 5.8GHz | Surface Mount | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | - | -40°C ~ 125°C | 250 MHz | 0.059" (1.50mm) |
|
SRN4012T-2R2MFIXED IND 2.2UH 1.9A 60 MOHM SMD Bourns Inc. |
8,610 | - |
|
数据表 |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.65A | - | Shielded | 60mOhm | 2.2 µH | 6 @ 100kHz | 70MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|

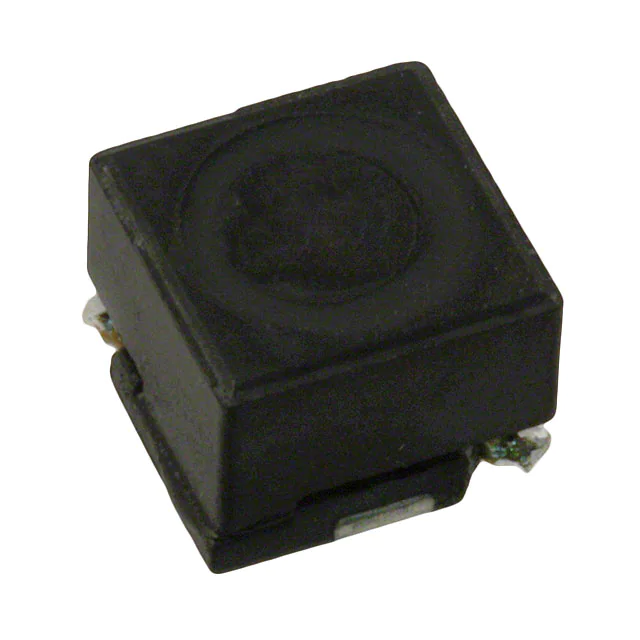

SRR0604-220MLFIXED IND 22UH 900MA 190MOHM SMD Bourns Inc. |
9,595 | - |
|
数据表 |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 1.2A | - | Shielded | 190mOhm Max | 22 µH | 16 @ 2.52MHz | 25MHz | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.189" (4.80mm) |
|
CM453232-2R7KLFIXED IND 2.7UH 370MA 750MOHM SM Bourns Inc. |
4,804 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 370 mA | - | 1812 | Unshielded | 750mOhm Max | 2.7 µH | 50 @ 7.96MHz | 50MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.134" (3.40mm) |
|
|
SRN4012T-1R5MFIXED IND 1.5UH 2A 50 MOHM SMD Bourns Inc. |
4,500 | - |
|
数据表 |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 2.2A | - | Shielded | 50mOhm | 1.5 µH | 6 @ 100kHz | 90MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
SRN2012-R47MFIXED IND 470NH 2.9A 46 MOHM SMD Bourns Inc. |
14 | - |
|
数据表 |
SRN2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.9 A | 3.5A | - | Shielded | 46mOhm Max | 470 nH | 9 @ 1MHz | 220MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
CM453232-120KLFIXED IND 12UH 225MA 2 OHM SMD Bourns Inc. |
3,941 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 225 mA | - | 1812 | Unshielded | 2Ohm Max | 12 µH | 50 @ 2.52MHz | 18MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.134" (3.40mm) |
