固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

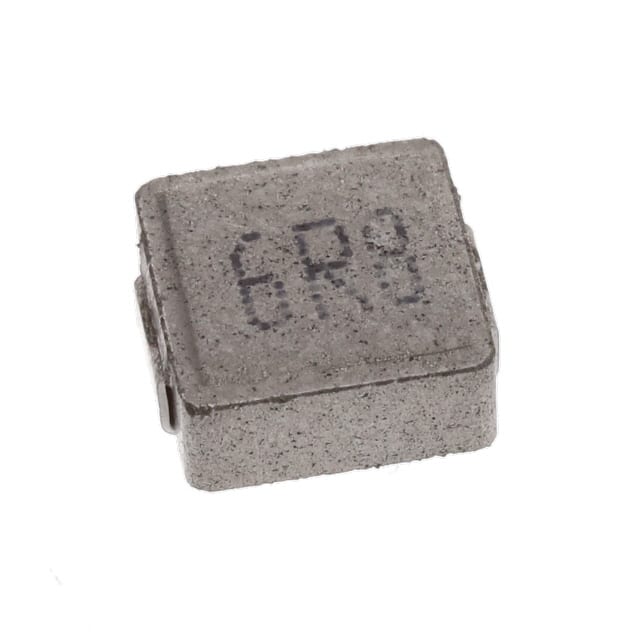

SRP6530A-6R8MIND,7.1X6.6X3MM,6.8UH20%,5.5A,SH Bourns Inc. |
186 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 5.5 A | 9A | - | Shielded | 60mOhm Max | 6.8 µH | 26 @ 2.52MHz | 17MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|
PM125SH-330M-RCFIXED IND 33UH 3A 60 MOHM SMD Bourns Inc. |
997 | - |
|
数据表 |
PM125SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | 2.8A | - | Shielded | 60mOhm Max | 33 µH | 27 @ 2.52MHz | 9.97MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
SRU1048A-820YFIXED IND 82UH 1.3A 200 MOHM SMD Bourns Inc. |
2,308 | - |
|
数据表 |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.3 A | 1.1A | - | Shielded | 200mOhm Max | 82 µH | 24 @ 2.52MHz | 5.5MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SDR1806-8R2MLFIXED IND 8.2UH 7A 20 MOHM SMD Bourns Inc. |
668 | - |
|
数据表 |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 7 A | 9.4A | - | Unshielded | 20mOhm Max | 8.2 µH | 22 @ 7.96MHz | 27MHz | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.272" (6.90mm) |
|
CW201212-8N2JFIXED IND 8.2NH 600MA 60MOHM SMD Bourns Inc. |
959 | - |
|
数据表 |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0805 (2012 Metric) | Unshielded | 60mOhm | 8.2 nH | 60 @ 1GHz | 5.5GHz | Surface Mount | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | - | -40°C ~ 125°C | 250 MHz | 0.059" (1.50mm) |
|
|
CW201212-39NJFIXED IND 39NH 500MA 180MOHM SMD Bourns Inc. |
842 | - |
|
数据表 |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 500 mA | - | 0805 (2012 Metric) | Unshielded | 180mOhm | 39 nH | 60 @ 500MHz | 2.1GHz | Surface Mount | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | - | -40°C ~ 125°C | 250 MHz | 0.059" (1.50mm) |
|
CM453232-R68MLFIXED IND 680NH 500MA 400MOHM SM Bourns Inc. |
1,475 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | - | 1812 | Unshielded | 400mOhm Max | 680 nH | 40 @ 25.2MHz | 135MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 25.2 MHz | 0.134" (3.40mm) |
|
|
CM453232-560KLFIXED IND 56UH 135MA 5.5 OHM SMD Bourns Inc. |
1,272 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 135 mA | - | 1812 | Unshielded | 5.5Ohm Max | 56 µH | 50 @ 2.52MHz | 9MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.134" (3.40mm) |
|
|
CM453232-151KLFIXED IND 150UH 105MA 9 OHM SMD Bourns Inc. |
1,000 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 105 mA | - | 1812 | Unshielded | 9Ohm Max | 150 µH | 40 @ 796kHz | 5MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 796 kHz | 0.134" (3.40mm) |
|
|
CM453232-R33MLFIXED IND 330NH 605MA 280MOHM SM Bourns Inc. |
681 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 605 mA | - | 1812 | Unshielded | 280mOhm Max | 330 nH | 40 @ 25.2MHz | 165MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 25.2 MHz | 0.134" (3.40mm) |
