固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CI201210-47NJFIXED IND 47NH 300MA 700MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CI201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 0805 (2012 Metric) | Unshielded | 700mOhm Max | 47 nH | 15 @ 100MHz | 850MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -25°C ~ 100°C | 100 MHz | 0.047" (1.20mm) |
|
SRP6530A-R22MIND,7.1X6.6X3MM,0.22UH20%,25.5A, Bourns Inc. |
1,414 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 25.5 A | 50A | - | Shielded | 2.8mOhm Max | 220 nH | 12 @ 25.2MHz | 145MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|
SRP6530A-1R0MIND,7.1X6.6X3MM,1UH20%,12A,SHD Bourns Inc. |
1,066 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 12 A | 25A | - | Shielded | 10mOhm Max | 1 µH | 30 @ 7.96MHz | 58MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|
|
SRP6530A-R10MIND,7.1X6.6X3MM,0.1UH20%,34A,SHD Bourns Inc. |
919 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 34 A | 70A | - | Shielded | 1.7mOhm Max | 100 nH | 14 @ 25.2MHz | 200MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|

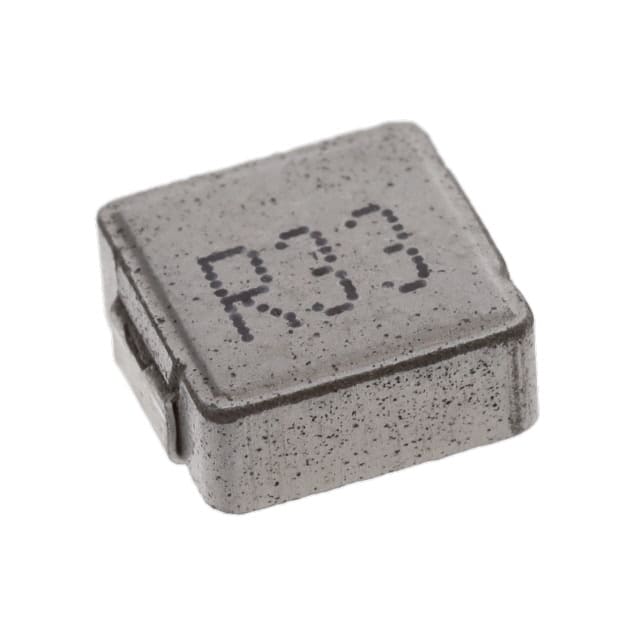

SRP6530A-R33MIND,7.1X6.6X3MM,0.33UH20%,21.5A, Bourns Inc. |
891 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 21.5 A | 35A | - | Shielded | 3.9mOhm Max | 330 nH | 12 @ 25.2MHz | 140MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|
|
SRP6530A-R56MIND,7.1X6.6X3MM,0.56UH20%,18A,SH Bourns Inc. |
880 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 18 A | 28A | - | Shielded | 5.5mOhm Max | 560 nH | 12 @ 25.2MHz | 78MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|

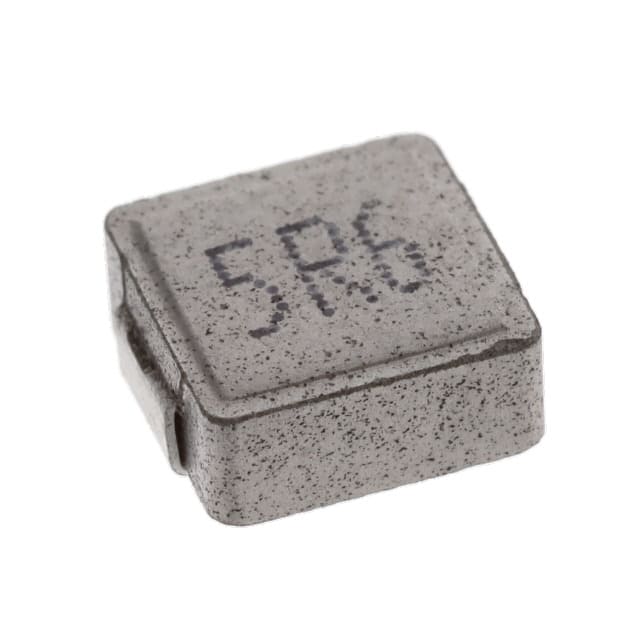

SRP6530A-5R6MIND,7.1X6.6X3MM,5.6UH20%,5.8A,SH Bourns Inc. |
653 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 5.8 A | 10.5A | - | Shielded | 60mOhm Max | 5.6 µH | 21 @ 7.96MHz | 20MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|

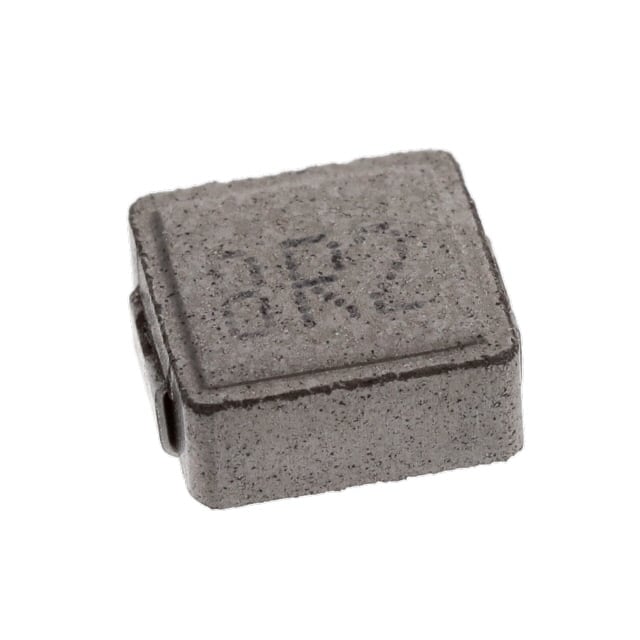

SRP6530A-8R2MIND,7.1X6.6X3MM,8.2UH20%,5A,SHD Bourns Inc. |
591 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 5 A | 7.5A | - | Shielded | 68mOhm Max | 8.2 µH | 26 @ 2.52MHz | 12MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
|
CM322522-8R2KLFIXED IND 8.2UH 140MA 2 OHM SMD Bourns Inc. |
467 | - |
|
数据表 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 140 mA | - | - | Unshielded | 2Ohm Max | 8.2 µH | 30 @ 7.96MHz | 40MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.087" (2.20mm) |
|
SRP6530A-1R5MIND,7.1X6.6X3MM,1.5UH20%,10A,SHD Bourns Inc. |
421 | - |
|
数据表 |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 10 A | 18A | - | Shielded | 15mOhm Max | 1.5 µH | 30 @ 7.96MHz | 45MHz | Surface Mount | AEC-Q200 | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 155°C | 500 kHz | 0.118" (3.00mm) |
