固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

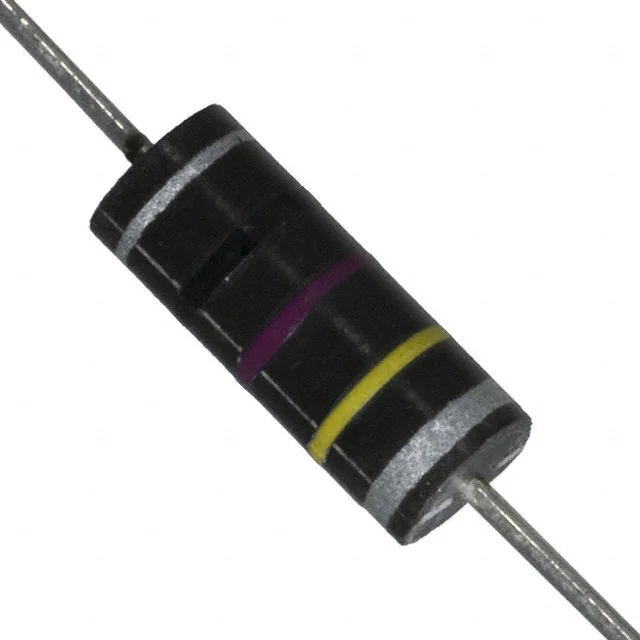

9250A-473-RCFIXED IND 47UH 195MA 2.11 OHM TH Bourns Inc. |
356 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 195 mA | 175mA | - | Shielded | 2.11Ohm Max | 47 µH | 50 @ 2.5MHz | 27MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|
9250A-223-RCFIXED IND 22UH 290MA 960 MOHM TH Bourns Inc. |
288 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 290 mA | 220mA | - | Shielded | 960mOhm Max | 22 µH | 45 @ 2.5MHz | 41MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|
5256-RCFIXED IND 500UH 2A 260 MOHM TH Bourns Inc. |
1,120 | - |
|
数据表 |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | - | Unshielded | 260mOhm Max | 500 µH | - | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5258-RCFIXED IND 1MH 1A 550 MOHM TH Bourns Inc. |
7,603 | - |
|
数据表 |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | - | - | Unshielded | 550mOhm Max | 1 mH | - | 650kHz | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5230-RCFIXED IND 4UH 8A 12 MOHM TH Bourns Inc. |
4,505 | - |
|
数据表 |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 8 A | - | - | Unshielded | 12mOhm Max | 4 µH | - | 165MHz | Through Hole | - | 0.380" Dia x 0.875" L (9.65mm x 22.23mm) | - | -55°C ~ 105°C | 7.96 MHz | - |
|
|
5254-RCFIXED IND 250UH 2.5A 170 MOHM TH Bourns Inc. |
3,947 | - |
|
数据表 |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | - | - | Unshielded | 170mOhm Max | 250 µH | - | 1.3MHz | Through Hole | - | 0.440" Dia x 1.250" L (11.18mm x 31.75mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
4606-RCFIXED IND 2.4UH 1.5A 190 MOHM TH Bourns Inc. |
3,964 | - |
|
数据表 |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 1.5 A | - | - | Unshielded | 190mOhm Max | 2.4 µH | 56 @ 7.96MHz | 120MHz | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - | -55°C ~ 125°C | 7.96 MHz | - |
|
CW100505-2N7DFIXED IND 2.7NH 640MA 120MOHM SM Bourns Inc. |
9,850 | - |
|
数据表 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±0.3nH | 640 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm | 2.7 nH | 16 @ 250MHz | 6GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
|
5252-RCFIXED IND 125UH 3.5A 80 MOHM TH Bourns Inc. |
4,528 | - |
|
数据表 |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.5 A | - | - | Unshielded | 80mOhm Max | 125 µH | - | 2.25MHz | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
RLB0812-562KLFIXED IND 5.6MH 45MA 18 OHM TH Bourns Inc. |
1,142 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 45 mA | - | - | Unshielded | 18Ohm Max | 5.6 mH | 60 @ 252kHz | 480kHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 252 kHz | 0.433" (11.00mm) |
