固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM322522-1R0JLFIXED IND 1UH 230MA 690 MOHM SMD Bourns Inc. |
2,410 | - |
|
数据表 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 230 mA | - | - | Unshielded | 690mOhm Max | 1 µH | 30 @ 7.96MHz | 115MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 7.96 MHz | 0.087" (2.20mm) |
|
SRP7030CA-3R3MFIXED IND 3.3UH 10A 0.018OHM SMD Bourns Inc. |
160 | - |
|
数据表 |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | ±20% | 10 A | 15A | - | Shielded | 18mOhm Max | 3.3 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | Flat Wire, High Saturation | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
SRP7030CA-5R6MFIXED IND 5.6UH 7.3A 0.0332OHM Bourns Inc. |
122 | - |
|
数据表 |
SRP7030CA | Nonstandard | Tape & Reel (TR) | Active | - | Carbonyl Powder | ±20% | 7.3 A | 12.5A | - | Shielded | 33.2mOhm Max | 5.6 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.299" W (7.80mm x 7.60mm) | Flat Wire, High Saturation | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|

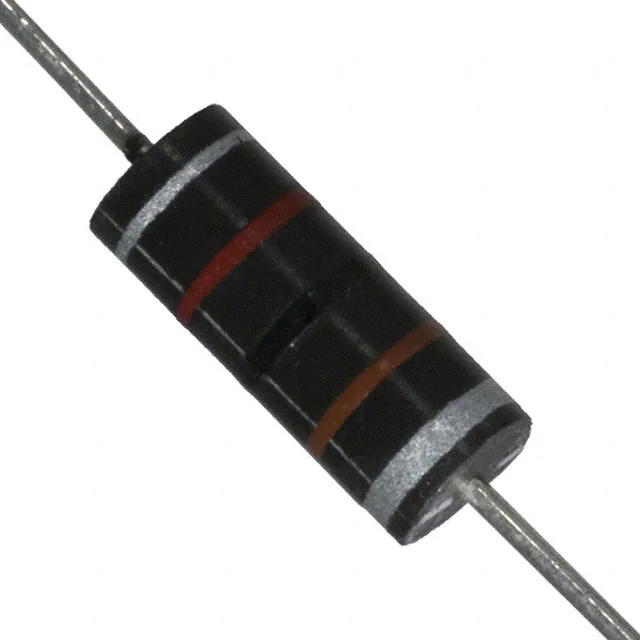

9250A-105-RCFIXED IND 1MH 70MA 17.5 OHM TH Bourns Inc. |
2,873 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 70 mA | 40mA | - | Shielded | 17.5Ohm Max | 1 mH | 60 @ 790kHz | 3.8MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
9250A-103-RCFIXED IND 10UH 220MA 1.62 OHM TH Bourns Inc. |
1,708 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 220 mA | 220mA | - | Shielded | 1.62Ohm Max | 10 µH | 50 @ 7.9MHz | 46MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 7.9 MHz | - |
|

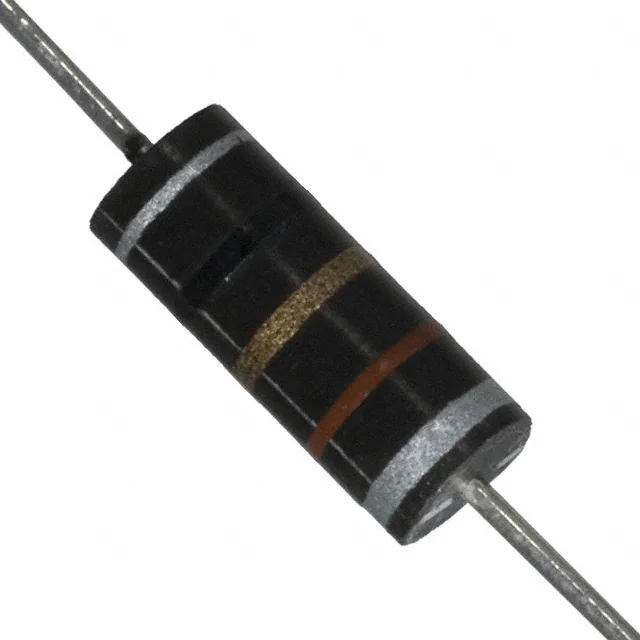

9250A-102-RCFIXED IND 1UH 1.07A 70 MOHM TH Bourns Inc. |
1,267 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 1.07 A | 1.07A | - | Shielded | 70mOhm Max | 1 µH | 40 @ 25MHz | 140MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
8230-02-RCFIXED IND 180NH 1.01A 120MOHM TH Bourns Inc. |
936 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | ±10% | 1.01 A | - | - | Unshielded | 120mOhm Max | 180 nH | 35 @ 25MHz | 550MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
9250A-104-RCFIXED IND 100UH 160MA 3.12OHM TH Bourns Inc. |
861 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 160 mA | 120mA | - | Shielded | 3.12Ohm Max | 100 µH | 50 @ 2.5MHz | 10MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|

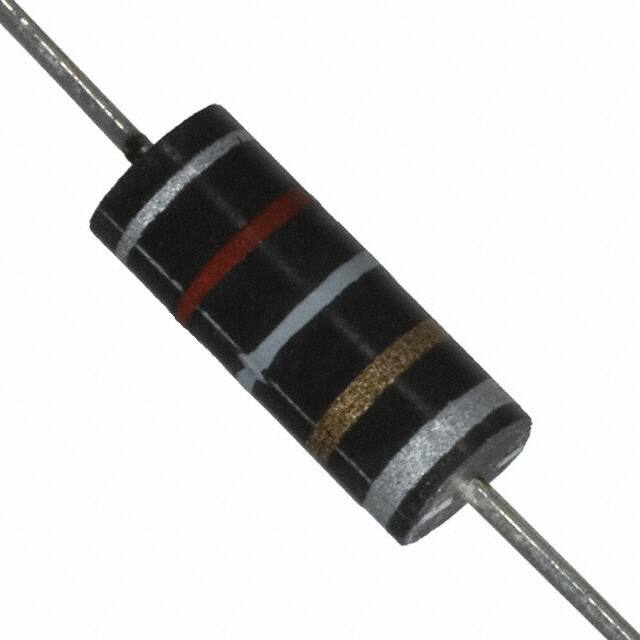

9250A-821-RCFIXED IND 820NH 370MA 590MOHM TH Bourns Inc. |
664 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 370 mA | 370mA | - | Shielded | 590mOhm Max | 820 nH | 50 @ 25MHz | 180MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 25 MHz | - |
|

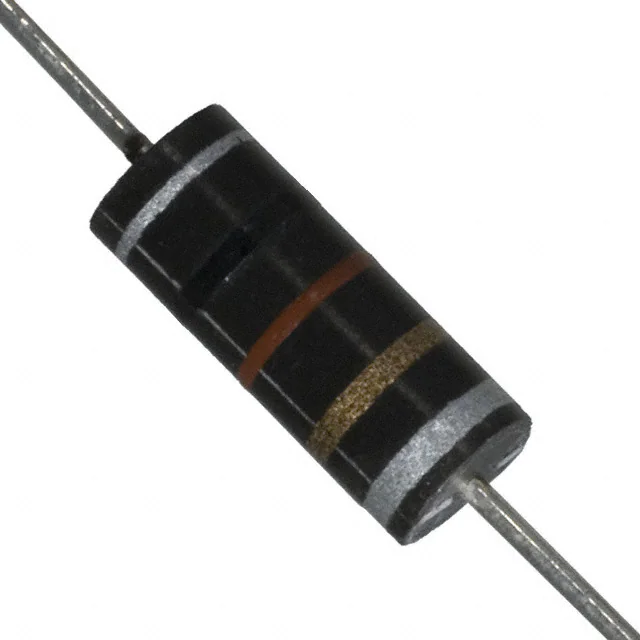

9250A-101-RCFIXED IND 100NH 1.79A 25 MOHM TH Bourns Inc. |
372 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 1.79 A | 1.79A | - | Shielded | 25mOhm Max | 100 nH | 50 @ 25MHz | 250MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 25 MHz | - |
