固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78FR33K-RCFIXED IND 330NH 1.11A 95 MOHM TH Bourns Inc. |
8,419 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.11 A | - | - | Unshielded | 95mOhm Max | 330 nH | 40 @ 25MHz | 335MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
SRP1245A-6R0MFIXED IND 6UH 11.5A 16.5MOHM SMD Bourns Inc. |
2,213 | - |
|
数据表 |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 11.5 A | 21.5A | - | Shielded | 16.5mOhm Max | 6 µH | 20 @ 100kHz | 12MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|
|
SRP1245A-R33MFIXED IND 330NH 42A 0.9 MOHM SMD Bourns Inc. |
996 | - |
|
数据表 |
SRP1245A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 42 A | 80A | - | Shielded | 0.9mOhm Max | 330 nH | 15 @ 100kHz | 90MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.197" (5.00mm) |
|
77F100K-TR-RCFIXED IND 10UH 500MA 650 MOHM TH Bourns Inc. |
8,267 | - |
|
数据表 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | - | - | Unshielded | 650mOhm Max | 10 µH | 85 @ 7.96MHz | 40MHz | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - | -55°C ~ 105°C | 7.96 MHz | - |
|
77F4R7K-TR-RCFIXED IND 4.7UH 620MA 400MOHM TH Bourns Inc. |
8,266 | - |
|
数据表 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 620 mA | - | - | Unshielded | 400mOhm Max | 4.7 µH | 70 @ 7.96MHz | 80MHz | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - | -55°C ~ 105°C | 7.96 MHz | - |
|

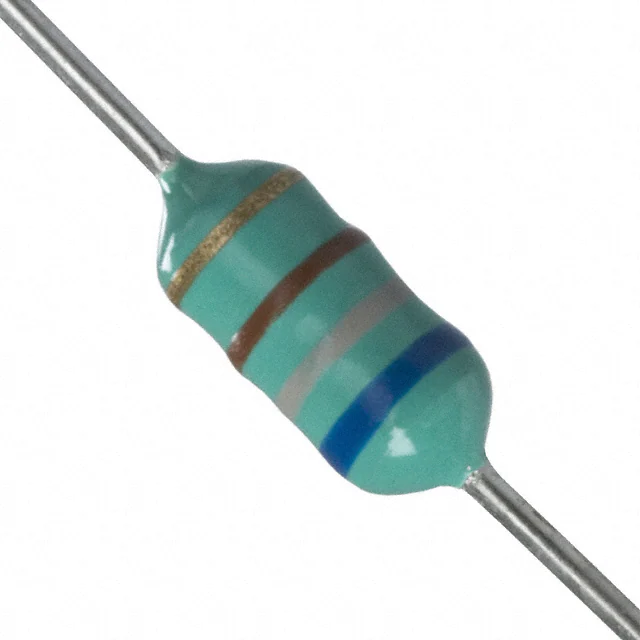

78F681J-RCFIXED IND 680UH 68MA 25.3 OHM TH Bourns Inc. |
7,962 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±5% | 68 mA | - | - | Unshielded | 25.3Ohm Max | 680 µH | 60 @ 790kHz | 2MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
78F150J-RCFIXED IND 15UH 335MA 930 MOHM TH Bourns Inc. |
7,850 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±5% | 335 mA | - | - | Unshielded | 930mOhm Max | 15 µH | 50 @ 2.5MHz | 16MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
SRP1250-1R8MFIXED IND 1.8UH 21A 4.7 MOHM SMD Bourns Inc. |
626 | - |
|
数据表 |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 21 A | 40A | - | Shielded | 4.7mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|
|
SRP1250-R22MFIXED IND 220NH 45A 1 MOHM SMD Bourns Inc. |
445 | - |
|
数据表 |
SRP1250 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 45 A | 80A | - | Shielded | 1mOhm Max | 220 nH | - | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.232" (5.90mm) |
|
78F121J-RCFIXED IND 120UH 160MA 4.7 OHM TH Bourns Inc. |
7,810 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±5% | 160 mA | - | - | Unshielded | 4.7Ohm Max | 120 µH | 60 @ 790kHz | 5.4MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 790 kHz | - |
