固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL875S-101K-RCFIXED IND 100UH 740MA 320MOHM TH Bourns Inc. |
480 | - |
|
数据表 |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 740 mA | - | - | Shielded | 320mOhm Max | 100 µH | 35 @ 796kHz | 6.5MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 105°C | 1 kHz | 0.295" (7.50mm) |
|
|
RL875S-221K-RCFIXED IND 220UH 500MA 760MOHM TH Bourns Inc. |
320 | - |
|
数据表 |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | - | - | Shielded | 760mOhm Max | 220 µH | 60 @ 796kHz | 5.5MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 105°C | 1 kHz | 0.295" (7.50mm) |
|
|
RL875S-682K-RCFIXED IND 6.8MH 89MA 23 OHM TH Bourns Inc. |
168 | - |
|
数据表 |
RL875S | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 89 mA | - | - | Shielded | 23Ohm Max | 6.8 mH | 95 @ 252kHz | 500kHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 105°C | 1 kHz | 0.295" (7.50mm) |
|
78F100J-TR-RCFIXED IND 10UH 370MA 750 MOHM TH Bourns Inc. |
52,363 | - |
|
数据表 |
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 370 mA | - | - | Unshielded | 750mOhm Max | 10 µH | 40 @ 7.9MHz | 18MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|

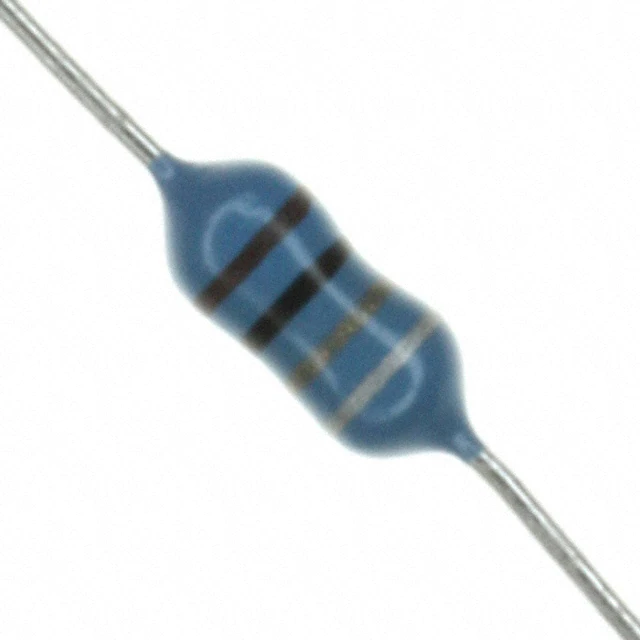

78F1R0K-TR-RCFIXED IND 1UH 815MA 150 MOHM TH Bourns Inc. |
22,789 | - |
|
数据表 |
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 815 mA | - | - | Unshielded | 150mOhm Max | 1 µH | 40 @ 25MHz | 180MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | - | -55°C ~ 105°C | 25 MHz | - |
|

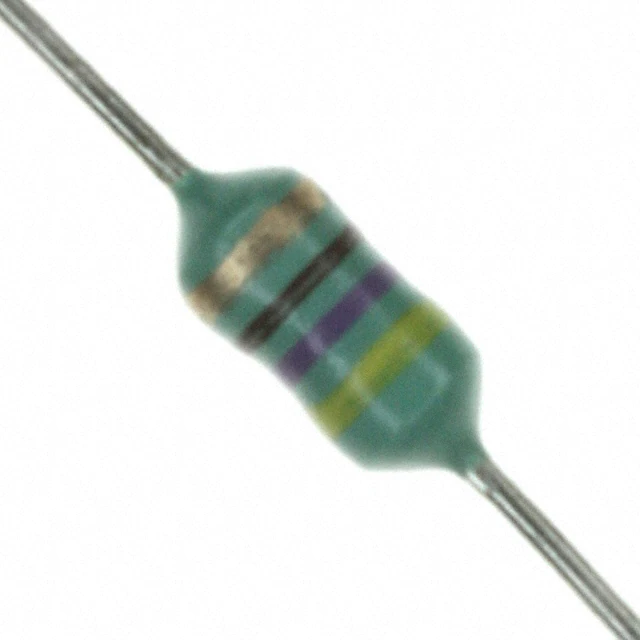

78F471J-TR-RCFIXED IND 470UH 90MA 14 OHM TH Bourns Inc. |
20,382 | - |
|
数据表 |
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 90 mA | - | - | Unshielded | 14Ohm Max | 470 µH | 60 @ 790kHz | 2.55MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
77F101J-TR-RCFIXED IND 100UH 275MA 2.5 OHM TH Bourns Inc. |
16,528 | - |
|
数据表 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 275 mA | - | - | Unshielded | 2.5Ohm Max | 100 µH | 30 @ 2.52MHz | 4.8MHz | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - | -55°C ~ 105°C | 2.52 MHz | - |
|
|
77F221J-TR-RCFIXED IND 220UH 155MA 5 OHM TH Bourns Inc. |
15,825 | - |
|
数据表 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 155 mA | - | - | Unshielded | 5Ohm Max | 220 µH | 60 @ 796kHz | 2.8MHz | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - | -55°C ~ 105°C | 796 kHz | - |
|
|
77F471J-TR-RCFIXED IND 470UH 126MA 8.5 OHM TH Bourns Inc. |
14,268 | - |
|
数据表 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 126 mA | - | - | Unshielded | 8.5Ohm Max | 470 µH | 50 @ 796kHz | 1.8MHz | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - | -55°C ~ 105°C | 796 kHz | - |
|

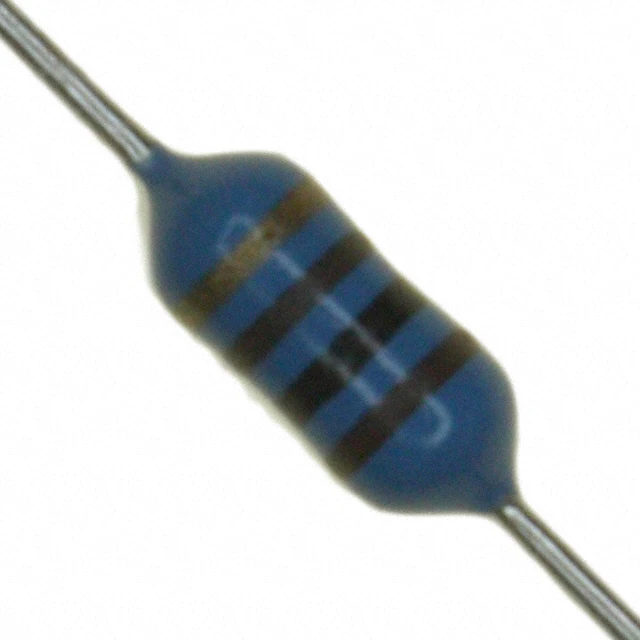

78F101J-TR-RCFIXED IND 100UH 165MA 4.1 OHM TH Bourns Inc. |
12,215 | - |
|
数据表 |
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 165 mA | - | - | Unshielded | 4.1Ohm Max | 100 µH | 60 @ 2.5MHz | 5.5MHz | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
