固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

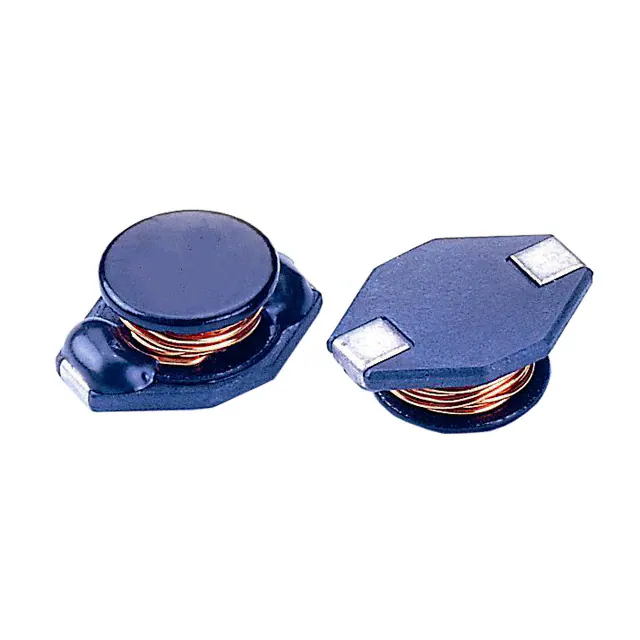

SC3316F-471FIXED IND 470UH 600MA 1.27OHM SM Signal Transformer |
1,447 | - |
|
数据表 |
SC3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 600 mA | 500mA | - | Unshielded | 1.27Ohm Max | 470 µH | - | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.21mm) |
|
SC75-470FIXED IND 47UH 1.47A 180MOHM SMD Signal Transformer |
5,464 | - |
|
数据表 |
SC75 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.47 A | 1.1A | - | Unshielded | 180mOhm Max | 47 µH | - | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.209" (5.30mm) |
|

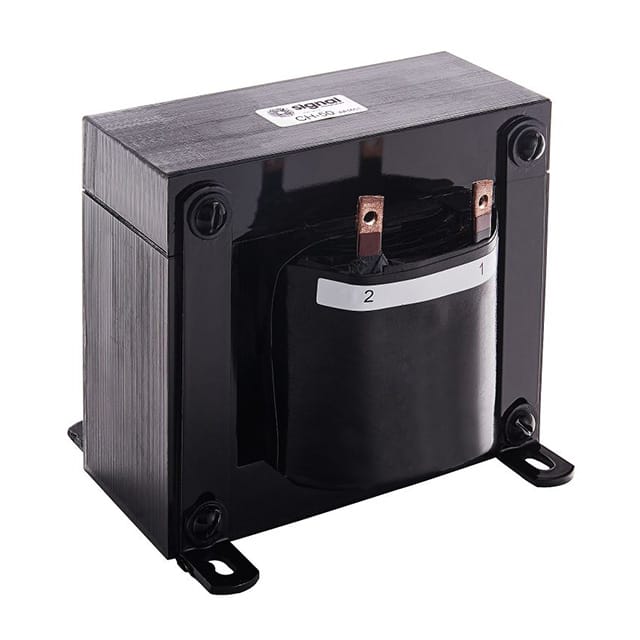

CH-50FIXED IND 1.4MH 50A 10 MOHM CHAS Signal Transformer |
8 | - |
|
数据表 |
- | Nonstandard | Box | Active | - | - | - | 50 A | - | - | Unshielded | 10mOhm | 1.4 mH | - | - | Chassis Mount | - | 6.374" L x 5.252" W (161.90mm x 133.40mm) | - | - | - | 5.374" (136.50mm) |
|
CH-30FIXED IND 4MH 30A 10 MOHM CHASS Signal Transformer |
2 | - |
|
数据表 |
- | Nonstandard | Box | Active | - | - | - | 30 A | - | - | Unshielded | 10mOhm | 4 mH | - | - | Chassis Mount | - | 6.374" L x 5.000" W (161.90mm x 127.00mm) | - | - | - | 5.374" (136.50mm) |
|
SCRH104R-100FIXED IND 10UH 4.36A 35 MOHM SMD Signal Transformer |
12,483 | - |
|
数据表 |
SCRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 4.36 A | 4.4A | - | Shielded | 35mOhm Max | 10 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
DRC-V-221KFIXED IND 220UH 700MA 0.065OHM Signal Transformer |
1,447 | - |
|
数据表 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 700 mA | 640mA | Radial | Unshielded | 65mOhm Max | 220 µH | 10 @ 796kHz | 2.7MHz | Through Hole | - | 0.343" Dia (8.70mm) | - | -40°C ~ 125°C | 796 kHz | 0.492" (12.50mm) |
|
|
DRC-V-821KFIXED IND 820UH 410MA 1.8OHM TH Signal Transformer |
4,982 | - |
|
数据表 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 410 mA | 350mA | Radial | Unshielded | 1.8Ohm Max | 820 µH | 10 @ 796kHz | 1.5MHz | Through Hole | - | 0.343" Dia (8.70mm) | - | -40°C ~ 125°C | 796 kHz | 0.492" (12.50mm) |
|
|
DRC-V-473KFIXED IND 47MH 55MA 99OHM TH Signal Transformer |
2,360 | - |
|
数据表 |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 55 mA | 30mA | Radial | Unshielded | 99Ohm Max | 47 mH | 20 @ 79.6kHz | 100kHz | Through Hole | - | 0.343" Dia (8.70mm) | - | -40°C ~ 125°C | 79.6 kHz | 0.492" (12.50mm) |
|
|
F1C1-252012-2R2MFIXED IND 2.2 UH 2.7A 65 MOHM Signal Transformer |
972 | - |
|
数据表 |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 2.7 A | 3.3A | 1008 | Shielded | 65mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
DRC-0406-681J-ULRADIAL INDUCTOR WITH LEADS, 680H Signal Transformer |
490 | - |
|
数据表 |
DRC-0406 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | ±5% | 170 mA | - | Radial | Unshielded | 4.6Ohm Max | 680 µH | 50 @ 796kHz | 1.3MHz | Through Hole | - | 0.217" Dia (5.50mm) | - | -20°C ~ 85°C | 1 kHz | - |
