固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPFC-EFD30-250PWR FACTOR COR EFD30 PCB 250W Signal Transformer |
627 | - |
|
数据表 |
SPFC | Radial, Horizontal, 12 Leads | Tray | Active | Wirewound | - | ±10% | 1.4 A | 6.8A | Radial, Horizontal, 12 Leads | Shielded | 190mOhm Max | 150 µH | - | - | Through Hole | - | 1.181" L x 1.220" W (30.00mm x 31.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
|
SPFC-RM10-150PWR FACTOR COR RM10 PCB 150W Signal Transformer |
630 | - |
|
数据表 |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | ±10% | 800 mA | 5.4A | Radial, Vertical, 14 Leads | Shielded | 360mOhm Max | 375 µH | - | - | Through Hole | - | 1.220" L x 1.142" W (31.00mm x 29.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.787" (20.00mm) |
|
|
SPFC-PQ38-250PWR FACTOR COR PQ38 PCB 250W Signal Transformer |
630 | - |
|
数据表 |
SPFC | Radial, Horizontal, 6 Leads | Tray | Active | Wirewound | - | ±10% | 3 A | 5.1A | Radial, Horizontal, 6 Leads | Shielded | 197mOhm Max | 300 µH | - | - | Through Hole | - | 1.496" L x 1.260" W (38.00mm x 32.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
|
SPFC-RM12-150PWR FACTOR COR RM12 PCB 150W Signal Transformer |
630 | - |
|
数据表 |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | ±10% | 2.4 A | 7.4A | Radial, Vertical, 14 Leads | Shielded | 170mOhm Max | 300 µH | - | - | Through Hole | - | 1.575" L x 1.614" W (40.00mm x 41.00mm) | - | -40°C ~ 125°C | 100 kHz | 1.024" (26.00mm) |
|
|
SPFC-RM12-250PWR FACTOR COR RM12 PCB 250W Signal Transformer |
630 | - |
|
数据表 |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | ±10% | 1.4 A | 11A | Radial, Vertical, 14 Leads | Shielded | 80mOhm Max | 150 µH | - | - | Through Hole | - | 1.575" L x 1.614" W (40.00mm x 41.00mm) | - | -40°C ~ 125°C | 100 kHz | 1.024" (26.00mm) |
|
|
SPFC-RM12-100PWR FACTOR COR RM12 PCB 100W Signal Transformer |
630 | - |
|
数据表 |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | ±10% | 1.2 A | 5.6A | Radial, Vertical, 14 Leads | Shielded | 330mOhm Max | 450 µH | - | - | Through Hole | - | 1.575" L x 1.614" W (40.00mm x 41.00mm) | - | -40°C ~ 125°C | 100 kHz | 1.024" (26.00mm) |
|
|
SPFC-RM10-50PWR FACTOR COR RM10 PCB 50W Signal Transformer |
630 | - |
|
数据表 |
SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | ±10% | 900 mA | 3.9A | Radial, Vertical, 14 Leads | Shielded | 720mOhm Max | 750 µH | - | - | Through Hole | - | 1.220" L x 1.142" W (31.00mm x 29.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.787" (20.00mm) |
|
|
SPFC-RM14-200PWR FACTOR COR RM14 PCB 200W Signal Transformer |
630 | - |
|
数据表 |
SPFC | Radial, Vertical, 16 Leads | Tray | Active | Wirewound | - | ±10% | 2.4 A | 12.4A | Radial, Vertical, 16 Leads | Shielded | 87mOhm Max | 225 µH | - | - | Through Hole | - | 1.693" L x 1.890" W (43.00mm x 48.00mm) | - | -40°C ~ 125°C | 100 kHz | 1.260" (32.00mm) |
|

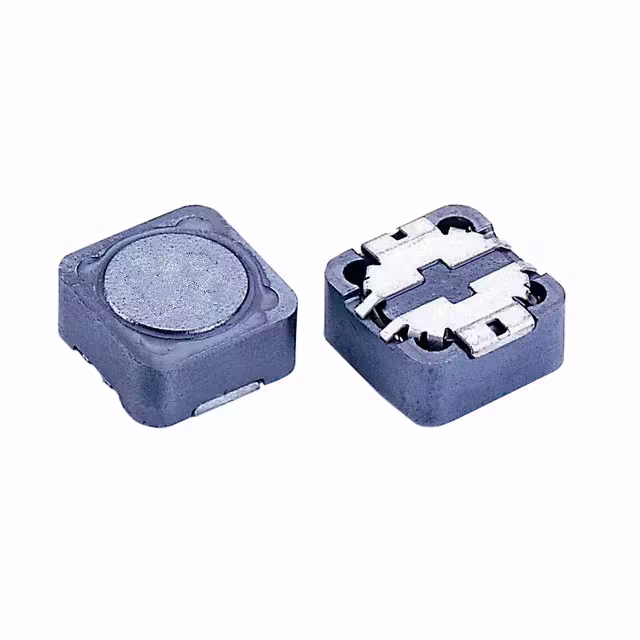

SCRH125-220FIXED IND 22UH 4A 36 MOHM SMD Signal Transformer |
1,223 | - |
|
数据表 |
SCRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 4 A | 2.8A | - | Shielded | 36mOhm Max | 22 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.236" (6.00mm) |
|
SCIHP0718-1R0MFIXED IND 1UH 7A 18.5 MOHM SMD Signal Transformer |
351 | - |
|
数据表 |
SCIHP0718 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 7 A | 11.5A | - | Shielded | 18.5mOhm Max | 1 µH | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -55°C ~ 125°C | 200 kHz | 0.071" (1.80mm) |
