固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

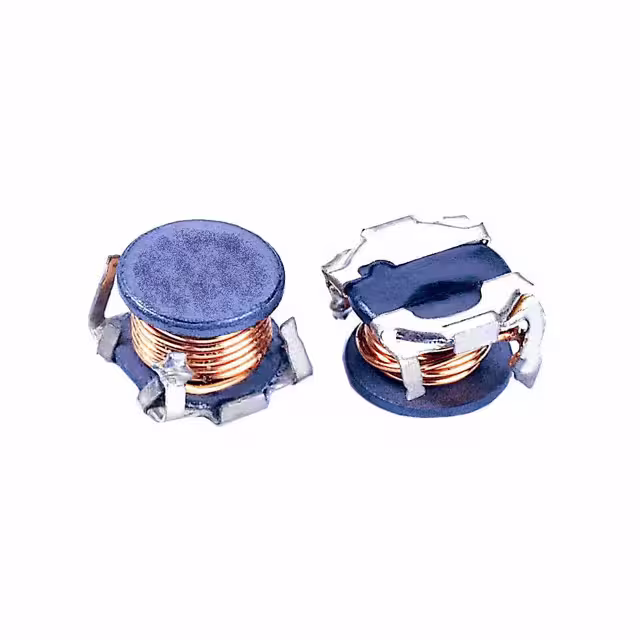

SCH74-100FIXED IND 10UH 3.2A 56 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 3.2 A | 2.75A | - | Unshielded | 56mOhm Max | 10 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-101FIXED IND 100UH 1A 550 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 1 A | 810mA | - | Unshielded | 550mOhm Max | 100 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-120FIXED IND 12UH 2.95A 65 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 2.95 A | 2.45A | - | Unshielded | 65mOhm Max | 12 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-121FIXED IND 120UH 850MA 620MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 850 mA | 730mA | - | Unshielded | 620mOhm Max | 120 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-150FIXED IND 15UH 2.66A 83 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 2.66 A | 2.1A | - | Unshielded | 83mOhm Max | 15 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-151FIXED IND 150UH 760MA 720MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 760 mA | 710mA | - | Unshielded | 720mOhm Max | 150 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-180FIXED IND 18UH 2.4A 94 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 2.4 A | 1.95A | - | Unshielded | 94mOhm Max | 18 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-181FIXED IND 180UH 660MA 820MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 660 mA | 660mA | - | Unshielded | 820mOhm Max | 180 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-220FIXED IND 22UH 2.2A 130 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 2.2 A | 1.7A | - | Unshielded | 130mOhm Max | 22 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
|
|
SCH74-221FIXED IND 220UH 560MA 1.08OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 560 mA | 550mA | - | Unshielded | 1.08Ohm Max | 220 µH | - | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.205" (5.20mm) |
