固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1B1-383818-270MFIXED IND 27.0UH 670MA 630 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1B1-383818 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 670 mA | 750mA | - | Unshielded | 630Ohm Max | 27 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.071" (1.80mm) |
|
|
F1B1-383815-6R8MFIXED IND 6.8UH 1.3A 228 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1B1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 1.3 A | 1.3A | - | Unshielded | 228Ohm Max | 6.8 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1B1-303012-100MFIXED IND 10.0UH 550MA 650 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1B1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 550 mA | 780mA | - | Unshielded | 650Ohm Max | 10 µH | - | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.047" (1.20mm) |
|
|
F1B1-303015-150MFIXED IND 15.0UH 600MA 700 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1B1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 600 mA | 800mA | - | Unshielded | 700Ohm Max | 15 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
F1B1-303010-5R6MFIXED IND 5.6UH 1.05A 475 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1B1-303010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 1.05 A | 850mA | - | Unshielded | 475Ohm Max | 5.6 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.039" (1.00mm) |
|
|
F1B1-383815-330MFIXED IND 33.0UH 520MA 1188 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1B1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 520 mA | 580mA | - | Unshielded | 1.188kOhm Max | 33 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|

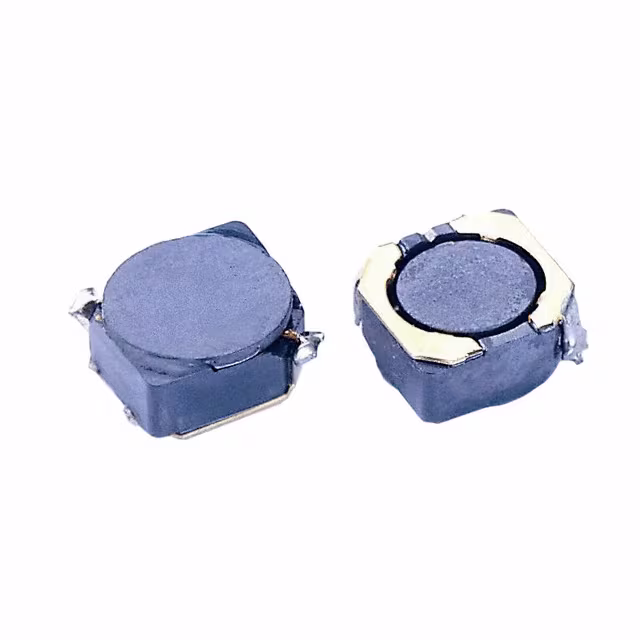

SCRH6D28-5R0FIXED IND 5UH 2.4A 31 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH6D28 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 2.4 A | 2.4A | - | Shielded | 31mOhm Max | 5 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.118" (3.00mm) |
|
SCIHP0750-R47FIXED IND 470NH 20A 4.2 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 20 A | 22A | - | Unshielded | 4.2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 125°C | 200 kHz | 0.197" (5.00mm) |
|
|
SCIHP0750-R56FIXED IND 560NH 19A 4.5 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP0750 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 19 A | 20A | - | Shielded | 4.5mOhm Max | 560 nH | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 125°C | 200 kHz | 0.197" (5.00mm) |
|
SC5022F-102FIXED IND 1MH 580MA 1.8 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC5022F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 580 mA | 1A | - | Unshielded | 1.8Ohm Max | 1 mH | - | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.11mm) |
