固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

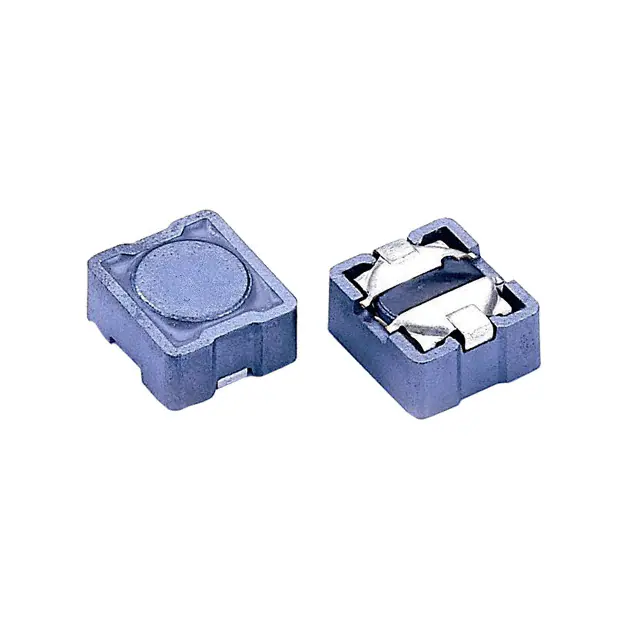

SCRH104-390FIXED IND 39UH 1.59A 170MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.59 A | 1.2A | - | Shielded | 170mOhm Max | 39 µH | - | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SCRH104-391FIXED IND 390UH 490MA 1.55OHM SM Signal Transformer |
0 | - |
|
数据表 |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 490 mA | 390mA | - | Shielded | 1.55Ohm Max | 390 µH | - | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SCRH104-3R3FIXED IND 3.3UH 4.68A 29MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 4.68 A | 7A | - | Shielded | 29mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SCRH104-560FIXED IND 56UH 1.4A 230 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.4 A | 1A | - | Shielded | 230mOhm Max | 56 µH | - | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SCRH104-820FIXED IND 82UH 1.06A 360MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCRH104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.06 A | 840mA | - | Shielded | 360mOhm Max | 82 µH | - | - | Surface Mount | - | 0.398" L x 0.362" W (10.10mm x 9.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
SCIHP0730-100MFIXED IND 10UH 3A 105 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP0730 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3 A | 5.5A | - | Shielded | 105mOhm Max | 10 µH | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -55°C ~ 125°C | 200 kHz | 0.118" (3.00mm) |
|
|
SCIHP0730-1R0MFIXED IND 1UH 11A 10 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP0730 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 11 A | 17A | - | Shielded | 10mOhm Max | 1 µH | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -55°C ~ 125°C | 200 kHz | 0.118" (3.00mm) |
|
|
SCIHP0730-1R5MFIXED IND 1.5UH 9A 15 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP0730 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 9 A | 15A | - | Shielded | 15mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -55°C ~ 125°C | 200 kHz | 0.118" (3.00mm) |
|
|
SCIHP0730-220MFIXED IND 22UH 2A 230 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCIHP0730 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2 A | 3A | - | Shielded | 230mOhm Max | 22 µH | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -55°C ~ 125°C | 200 kHz | 0.118" (3.00mm) |
|
HCLC-100-6.8TOR IND LOW CORE LOSS 100UH 6.8A Signal Transformer |
0 | - |
|
数据表 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | ±15% | 6.8 A | - | - | Shielded | 27mOhm Max | 100 µH | - | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - | -55°C ~ 125°C | 1 kHz | - |
